(Update) My Second Spud/Airgun (M4 Carbine style)

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Post Reply

What color should I paint my airgun?

Poll ended at Mon Jan 28, 2008 7:34 pm

Black
3
50%
Camo
1
17%
Dark/Solid Grey
1
17%
Leave it as it is
1
17%

Total votes: 6
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 6:54 pm

This is the second and most proud airgun I have made. The air chamber is made of galvanized steel and the interchangable barrels are PVC. I used a Orbit brand sprinkler valve and a precision air trigger. I charge this bad boy up to 120 PSI which is enough power to shoot a jellybean through several pieces of cardboard. Please leave comments (positive preferrably but if it's an an improvment, go ahead and tell me) ,also please vote in my poll, and I hope you enjoy these pictures  :wink: !
Attachments

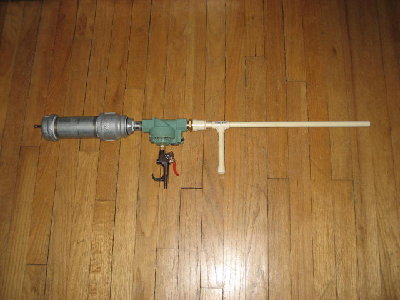

The whole gun.
The whole gun.

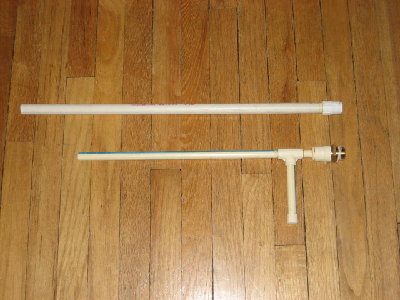

Interchangable barrels.
Interchangable barrels.

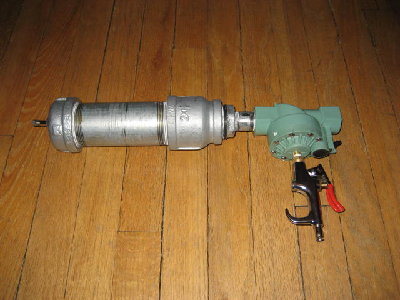

Trigger mechanism and air chamber.
Trigger mechanism and air chamber.

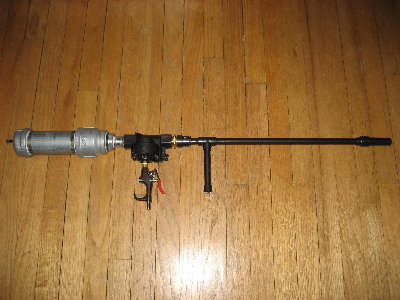

New Hammered Black custom paint job with new silencer.
New Hammered Black custom paint job with new silencer.
Last edited by Sergeant Dotson on Fri Feb 01, 2008 9:14 pm, edited 17 times in total.
Top
User avatar
BigJon
Specialist
Specialist
Posts: 120
Joined: Wed May 30, 2007 12:21 pm

Mon Jan 21, 2008 6:54 pm

Hope you enjoy these pictures
pics aren't working
Top
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 7:29 pm

OK, got it.
:P
Top
User avatar
Isomer
Private 4
Private 4
Posts: 81
Joined: Fri Jan 04, 2008 9:35 pm

Mon Jan 21, 2008 7:55 pm

Cmon, with a setup easily capable of 150+ (limited by the sprinkler valve), I wanna see some nice damage pics. Very nice. are the barrels half and one inch?
Top
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 7:58 pm

By the way, how much PSI do you think the valve can handle? :o
Top
User avatar
Pilgrimman
Specialist 4
Specialist 4
Posts: 480
Joined: Thu Jun 28, 2007 1:10 pm
Location: Grants Pass, OR

Mon Jan 21, 2008 8:09 pm

Those valves are typically rated to 120 psi, so go above at your own risk. However, if you replaced that valve with, say, a qev, you could take it to 150 +. Nice gun, by the way! Good job on that sprinkler valve! Point of interest: blowguns have been tested past 300 psi, so you shouldn't have to worry about it if you implement it in a future high pressure gun.
Yeah, we wouldn't want to anger the bees, now would we??

I HATE YOU BEES! I HATE YOU BEES! I HATE YOU BEES!

LMAO Classic!!!! I love Family Guy!
Top
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 8:11 pm

Hey, thanks a lot man, instead of pressuring to 80PSI, I will probably pressurize it to 100-110PSI. :P
Top
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Mon Jan 21, 2008 8:47 pm

Wow, nice gun! The only question I have is what size pipe is that chamber?
It's hard to soar with eagles when you're working with turkeys.
Top
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 8:52 pm

The chamber is 2 inches in diameter.
Top
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Mon Jan 21, 2008 8:58 pm

Oh, it looked a little bit bigger in the picture. I really like this gun, it's simple, but I'll bet it has plenty of power :lol:
It's hard to soar with eagles when you're working with turkeys.
Top
User avatar
Sergeant Dotson
Specialist
Specialist
Posts: 149
Joined: Mon Jan 21, 2008 5:53 pm
Location: Tennessee

Mon Jan 21, 2008 9:02 pm

Thanks a lot man! I love the morale support on this website. And your right, it sure does shoot great. :D
Top
User avatar
Cosmic Muffin
Specialist 2
Specialist 2
Posts: 275
Joined: Mon Jan 14, 2008 10:30 pm
Location: arse end of nowhere

Thu Jan 24, 2008 12:04 am

nice.. but i dont see how thats m4 style.
enlighten me :?
Top
nivekatoz
Specialist 2
Specialist 2
Posts: 237
Joined: Sat Nov 25, 2006 7:05 pm

Thu Jan 24, 2008 11:07 am

Nice gun ...............It kinda looks like mine, a little..........Mines a bit different ................Its a nice simple design but that thing must be heavy...Thats what was wrong with mine,so I used lighter weight materials......Mine is still heavy but not like it was.....

Good Job :salute:
Top
User avatar
Spuddin
Specialist 2
Specialist 2
Posts: 262
Joined: Wed May 16, 2007 1:28 pm
Location: Oklahoma
Contact:
Contact Spuddin

Donating Members

Thu Jan 24, 2008 11:29 am

Really cool gun, great work for your second. Cant wait to see future projects!

_______________________
http://www.freewebs.com/spuddin
Top
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

Thu Jan 24, 2008 11:32 am

One full stop is quite enough per sentence nivekatoz

Is that drop down tube a burst fire mag or is it just a handle?
Aussie spudders unite!!
