pneumatic mine

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
daxspudder
Specialist 3
Specialist 3
Posts: 300
Joined: Thu Apr 24, 2008 10:22 pm

Wed Mar 25, 2009 11:25 pm

Okay, a little while back, there was a post about a "glade motion sensor mine", well I decided I would make one of my own, out of parts, mine uses 3 9v batteries, two for the solenoid trip, and one for the control circuit. it uses 1 signal diode, a 1kohm resistor, 1 potentiometer (0-100kohms) a NPN transistor, and a photo-resistor, and a 9v relay.... it works when a shadow causes the photo-resistor to open, allowing voltage to pass to the transistor base which then grounds the relay completing the circuit, which complete the 18v triggering circuit, the uses are obvious to any adamant spudder... heres the pics .... oh, and the potentiometer allows adjustment to the level of light/shadow necessary to trigger it
Attachments

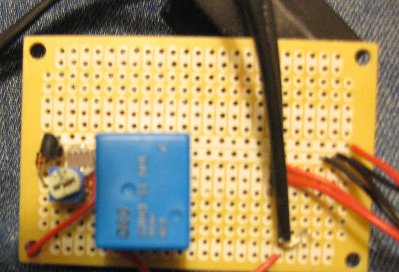

the circuit, the 3red, and 3 black wires are to the 3 batteries, all the -'s are on a common grounding lead, the thick black wires are to the solenoid, and there is a resistor on the bottom
the circuit, the 3red, and 3 black wires are to the 3 batteries, all the -'s are on a common grounding lead, the thick black wires are to the solenoid, and there is a resistor on the bottom
"<I>For dare to be peace, I have to keep at it everyday, da Man doesn't take days off so neither can I</I>" -<B>Bob Marley</B>, day before a performance, a day after being shot in the chest. "<I>If you are the big, big tree, we are the small axe, ready to cut you down!</I>" -Bob again :brave:
User avatar
jamie e
Private 2
Private 2
Posts: 36
Joined: Sat Dec 27, 2008 1:32 pm
Location: auckland New Zealand

Wed Mar 25, 2009 11:47 pm

Looks good. Have you got it connected to anything yet, if so show us it.
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia

Thu Mar 26, 2009 12:15 am

Thats sweet mate! sounds like you know a liitle about electronics eh?
Aussie spudders unite!!
User avatar
daxspudder
Specialist 3
Specialist 3
Posts: 300
Joined: Thu Apr 24, 2008 10:22 pm

Thu Mar 26, 2009 12:37 am

well, about hooking it up, all my sprinkler valves are modded, so I need to get a new valve that a solenoid will actuate, OHHHH and it only cost me 15$ for all the parts, and I can make 5 more for about 2$ a piece, cause most of the parts came in mulitples of 6... so $25 for 10... and since its made just for this application, Its durable for a lot of shock.... Im planning on using it with a 1"x6" paintball(or flour at home :twisted:) loaded barrel, with a 2"x6" chamber. gonna use a laser pointer to increase the amount of light, so that I can create a "trip line" of light...
"<I>For dare to be peace, I have to keep at it everyday, da Man doesn't take days off so neither can I</I>" -<B>Bob Marley</B>, day before a performance, a day after being shot in the chest. "<I>If you are the big, big tree, we are the small axe, ready to cut you down!</I>" -Bob again :brave:
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Thu Mar 26, 2009 1:05 am

Reminds me of a similar system used by the Germans in WW2 with wing mounted upward firing cannon on an Me163 rocket fighter that were triggered by the shadow of an enemy aircraft when the plane flew underneath it, have a look.
