modifying another type of sprinkler valve.

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
charizzardd
Private
Private
Posts: 11
Joined: Tue Mar 24, 2009 10:21 am

Fri Apr 10, 2009 5:39 pm

well for starters this is the valve,

http://www.homedepot.com/webapp/wcs/sto ... 0003+90401

I bought it from home depot obviously. Now if i can only modify it....

top screws off instead of being held in with screws... the solenoid and everything is attached in one chunk directly above the spring, rod, and diaphragm. When taken off its just a spring and the diaphragm. hope these pictures help.
Is it still just modded by drilling a hole in the side, tapping it and putting in the hose connector?

sorry pictures are reversed lol. read from bottom up up...


-charizzardd
Attachments

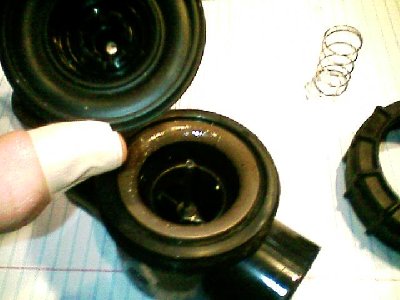

close up of valve, spring has been removed and im holding the diaphragm in my hand.
close up of valve, spring has been removed and im holding the diaphragm in my hand.
better view, spring still in place on top of diaphragm...
better view, spring still in place on top of diaphragm...

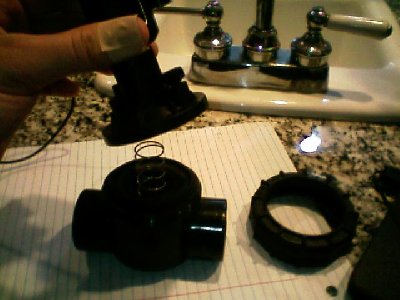

screw top is off, solenoid and bleed valve all come off in one chunk... leaving diaphragm, spring and the guide rod or whatever its called...
screw top is off, solenoid and bleed valve all come off in one chunk... leaving diaphragm, spring and the guide rod or whatever its called...

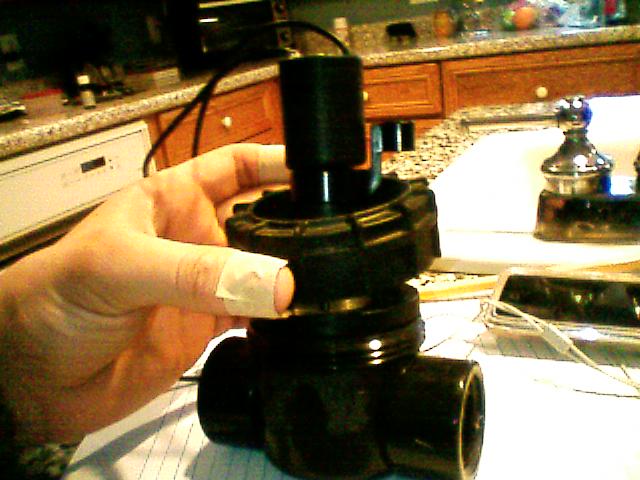

twists off to be taken apart and not screwed into place.
twists off to be taken apart and not screwed into place.

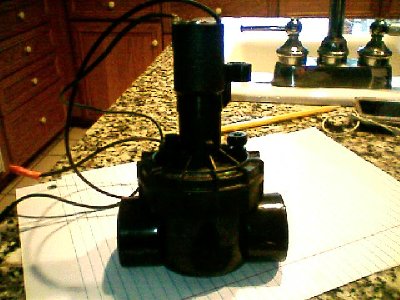

the valve fully assembled.
the valve fully assembled.
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 3 times

Fri Apr 10, 2009 5:49 pm

There is an edit button at the bottom corner of your posts.This means you don't have to double-post.

Welcome to the forum BTW.

I'm sure this valve can be modded in a normal way.
Find the hole that is used to vent the pilot volume to the barrel side when the solenoid is activated and plug it.( JB weld, epoxy)
I have a feeling it's right in the center of the diaphram.

Then remove the solenoid and tap in a fitting to accept a blowgun or other type of pilot valve.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Fri Apr 10, 2009 7:38 pm

Brian the brain wrote:There is an edit button at the bottom corner of your posts.This means you don't have to double-post.

Welcome to the forum BTW.

I'm sure this valve can be modded in a normal way.
Find the hole that is used to vent the pilot volume to the barrel side when the solenoid is activated and plug it.( JB weld, epoxy)
I have a feeling it's right in the center of the diaphram.

Then remove the solenoid and tap in a fitting to accept a blowgun or other type of pilot valve.
I think your assessment of the pilot hole is correct. Check the arrows for flow. If the center of the diaphragm is the outlet instead of the inlet, you are probably right.

With the electric solenoid on the center instead of the edge, this may have a reverse flow from normal valves. The electric vents to the center instead of the the edge, so if you fill the small pilot at the edge, it will never close and hold pressure. This one may be modified by sealing the small hole in the center of the diaphragm and leave the edge hole open.

Remove the electric solenoid as usual for the blowgun trigger.

The bleed on the side that water enters the valve from should not be plugged as this is where the pressure comes from that closes the valve. On most sprinkler valves, this is in the center. It looks like this one is reversed.
Last edited by Technician1002 on Fri Apr 10, 2009 7:41 pm, edited 1 time in total.
User avatar
roboman
Specialist
Specialist
Posts: 176
Joined: Tue Nov 25, 2008 11:18 pm
Location: Long Beach, CA

Fri Apr 10, 2009 7:39 pm

I recently had a problem with this type of valve. They are really hard to tap into, and the space between the brass nipple and the valve top had to be filled in with epoxy. It ended up not actuating (too little pilot volume?).
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

Fri Apr 10, 2009 9:47 pm

I have modded 3 of this valve i can get pictures later, i had a blowgun pilot which i tapped and epoxied into the solenoid hole, the only other thing i had to do was pour some epoxy down that metal tube.
Aussie spudders unite!!
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 3 times

Sat Apr 11, 2009 1:39 am

That's what I said isn't it? :D
Good to see somebody with experience can back my senseless uttering...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

Sat Apr 11, 2009 4:03 am

Brian the brain wrote:That's what I said isn't it? :D
Good to see somebody with experience can back my senseless uttering...
sorry Brian mate totally missed your post
Aussie spudders unite!!
