Recently, I became curious in air guns and the like, now, I need a valve similar to a Schrader valve. The Schrader valve basically ejects air if the top is pushed down, like this http://www.capsuretirecaps.com/images/a ... a_tire.gif but my question here is, is it possible to buy a valve that does the opposite? I want the side that gets pushed down, similar to the rod pushing down that to release air, but in the other direction, therefore, when the rod is pushed down the top, the bottom ejects the air, not the top
User avatar
Vincenzo
Private 3
Private 3
Posts: 58
Joined: Mon Dec 06, 2010 6:50 pm

Mon Jan 03, 2011 9:09 pm

I don't think such a thing exists, but then again I'm not entirely sure what you mean...
more_eggs wrote:My teachers hated this one:
Teacher: "Matt, take your iPod out in class"
Me: "beg your pardon sir? I can't hear you, I'm listening to my iPod"
:P
User avatar
saefroch
Staff Sergeant 2
Staff Sergeant 2
Posts: 1679
Joined: Mon Jun 08, 2009 8:47 am
Location: U.S.A.- See Map

Mon Jan 03, 2011 9:31 pm

Just reverse the schrader and it should do what you're thinking of, unless I'm not understanding you, which is very likely. Your wording of what you want the valve to do is difficult for me to understand. Please try to reword what you want this valve to do.

What are you trying to accomplish here? Are you trying to use this as a pilot valve?
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Mon Jan 03, 2011 10:18 pm

you could use a hammer valve but it would be a tee shape
Attachments
something like this
something like this
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Mon Jan 03, 2011 10:27 pm

The hammer valve looks awesome, BUT, I need it small, I'm thinking of building a hand-gun sized air gun, the air tank will be the in the gun's grip
User avatar
ilovefire
Corporal
Corporal
Posts: 511
Joined: Sat May 22, 2010 6:48 am

Mon Jan 03, 2011 10:35 pm

well you could use an blow gun and use the space behind the valve as the chamber and you could just put a short barrel at the from, power wouldnt be great be it would be easy to do, there is one on here somewhere but i cant find it at the moment
why make it if it dosent shoot?
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Mon Jan 03, 2011 10:35 pm

Also, if possible (sorry to double post, but I need to sleep now) I would also like to somehow make this gun semi automatic with around 3 shots
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Tue Jan 04, 2011 4:02 pm

Um, any idea on how to make that hammer valve?Or like a miniature version of it?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Tue Jan 04, 2011 4:10 pm

nadjatee1996 wrote:Um, any idea on how to make that hammer valve?Or like a miniature version of it?
yes.
hectmarr wrote:You have to make many weapons, because this field is long and short life
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Tue Jan 04, 2011 4:21 pm

OK, so um...can that be made into something as small as...a quarter of a pencil?Assuming I'm getting this right, the Schrader valve goes into the lyre cap, where air is the pumped in, the hammer is screwed into the chamber at the right side. When once pushes the rod , the hammer will go left and ir will go out from the outlet on top of the chamber, the spring will then return the hammer to its normal position. Is there a way, to make the air go left? And on a indirect suggestion from a poster above, a picture should be worth a thousand words, I'll draw a quick one on Microsoft paint and upload it.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Tue Jan 04, 2011 4:26 pm

nadjatee1996 wrote:I'll draw a quick one on Microsoft paint and upload it.
That would certainly make the above paragraph easier to follow :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Tue Jan 04, 2011 4:48 pm

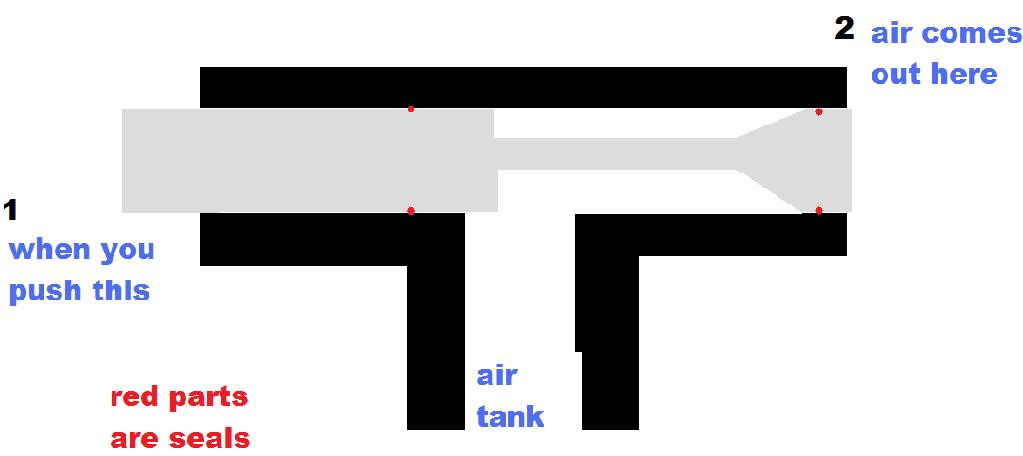

Hopefully this helps, oh, and I'll get the loading figured out, but right now, its for a bolt loading one shot
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Wed Jan 05, 2011 1:36 am

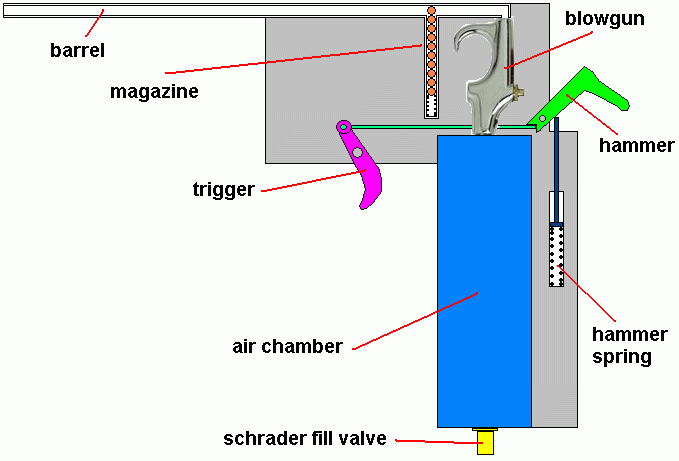

Here's one way it could work, using a standard blowgun as a valve.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Wed Jan 05, 2011 4:22 pm

Well, that could work, but I'm in high school, I can't just get any parts I want ( I'm job-less), and except for the hammer valve, I got everything worked out, so is my design going to work? If not, I'll have to use yours, but it's gonna be a lot bigger, I'll post up the full design later
nadjatee1996
Specialist
Specialist
Posts: 185
Joined: Mon Jan 03, 2011 7:20 pm

Wed Jan 05, 2011 4:51 pm


I've hit another snag, the only tools I have are hand tools, a jig saw and a dremel, I kind of doubt that just these tools can make this gun :(
