Sprinkler Valve Honking When Opening and Extremely Poorly

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
nukewater
Private
Private
Posts: 3
Joined: Mon May 28, 2012 2:23 pm

Tue May 29, 2012 6:55 pm

Hey guys, my first cannon, is a tshirt launcher. everything seemed great. Modified the sprinkler valve with a blowgun handle, and it has a dual tank for multi shots. When i pressure up my main tank to about 80psi and my second (firing) tank to about 60psi, pull the trigger, the gun expels the air and honks very loudly. But doesnt shoot the tshirt more than about 4 feet. I've read all i think i can find, but no real answer. Ive epoxied all openings, smeared grease on the diaphram.

My though, is when i got the valve and took it apart, there was some water inside, that someone had used it and returned it. So maybe the valve is faulty.


Any thoughts?

Making this tshirt cannon for our bands show this saturday so Im in a hustle to get this thing fixed


Thanks abunch guys!


-adam
User avatar
8tonsemi
Specialist 3
Specialist 3
Posts: 321
Joined: Thu Feb 16, 2012 6:08 pm
Location: The moon

Tue May 29, 2012 7:00 pm

If you go to the pneumatic forum section there is a sticky on it
User avatar
mattyzip77
Sergeant 3
Sergeant 3
Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts

Donating Members

Tue May 29, 2012 7:33 pm

Pictures help, and what type of sprinkler valve is it?? The water is not a big deal, for its what the valve is actually made for.
Go Bruins!!!!
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand

Tue May 29, 2012 8:48 pm

This is what 8tonsemi was alluding to:
http://www.spudfiles.com/forums/sprinkl ... t8780.html

Might be some relevant info here as well:
http://www.spudfiles.com/forums/the-spr ... 16786.html
nukewater
Private
Private
Posts: 3
Joined: Mon May 28, 2012 2:23 pm

Wed May 30, 2012 8:07 am

alright, a reply

this is the valve:

http://www.homedepot.ca/product/1-in-fn ... gbx/972741

anyways, thought it might have been too small of a pilot (was a blowgun) so I actually removed the blowgun, put my finger over the hole, charged it up, then released my finger... identical results, poor air flow and a long honk.

Anyways, figured the valve was pooched, bought a Ø1" plastic ball valve, hooked it up, and now the whole system works decent, as good as it can for a plastic ball valve i guess.

it's hard to find those sprinkler valves around here, its kind of rural, but when i find a new one, i'll reinstall it and see if it changes, but for now, i have a firing tshirt cannon :D ill try and post pics later
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Wed May 30, 2012 9:09 am

Purchase this one because this has been the easiest to modify and has been used for years. Plenty of how to's available.

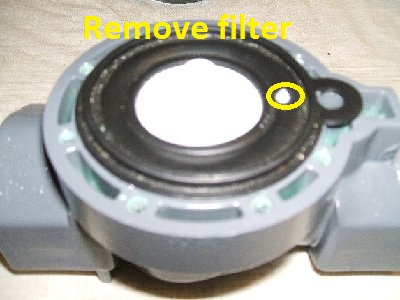

Make sure to remove the white plastic filter from the diaphragm, make sure the manual bleed lever is closed and then epoxy the solenoid opening. Drill out the top to put a fitting for the blowgun.

http://www.homedepot.ca/product/1-in-fn ... gbx/972740
Attachments
Last edited by dewey-1 on Wed May 30, 2012 9:33 am, edited 1 time in total.
User avatar
mattyzip77
Sergeant 3
Sergeant 3
Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts

Donating Members

Wed May 30, 2012 9:30 am

Look at deweys pic above, your valve should have the same little white thing in it, take it out, and it should work. Btw when I asked for pics I meant of your actual valve and your link didnt work for me!
Go Bruins!!!!
User avatar
jhalek90
Specialist 4
Specialist 4
Posts: 498
Joined: Fri Aug 14, 2009 5:37 pm

Thu May 31, 2012 8:41 am

how did you plug the pilot hole with your finger at 60+ psi???

Im guessing you are doing something a little bit wrong...
