Variable pump coaxial
I present to you all a simple .30 caliber coaxial piston gun with floating o-ring pump and "custom" trigger. My intent with building any air gun is it must be self contained , no co2 or fridge pump. I learned so much here but noticed the lack of pump guns on the files similar to a crossman pistol I've had for years . I do have a very simple trigger system and grip planned out but right now this shoots incredibly well so im showing it !
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 7 times
Looks cool, what kind of pressure can you generate? By the looks of it I would guess 200 psi max...
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
- Gippeto
- First Sergeant 3
- Posts: 2503
- Joined: Sat Jan 19, 2008 10:14 am
- Location: Soon to be socialist shit hole.
- Has thanked: 2 times
- Been thanked: 17 times
Clever.
Wondering where you found the barrel and how you attached it?
Maybe add a butt of sorts to the pump rod ....
Wondering where you found the barrel and how you attached it?
Maybe add a butt of sorts to the pump rod ....
"It could be that the purpose of your life is to serve as a warning to others" – unknown
Liberalism is a mental disorder, reality is it's cure.
Liberalism is a mental disorder, reality is it's cure.
- bravootome
- Specialist 3
- Posts: 334
- Joined: Mon Oct 14, 2013 11:11 am
- Has thanked: 1 time
- Been thanked: 2 times
it looks...nice
if you manage to put 30 bar....it will be perfect !
if you manage to put 30 bar....it will be perfect !
come undone
30 bar would be overkill in my backyard!
The barrel is brakeline . I just took some 30 cal. slingshot ammo to the auto store , can't remember
the exact size.

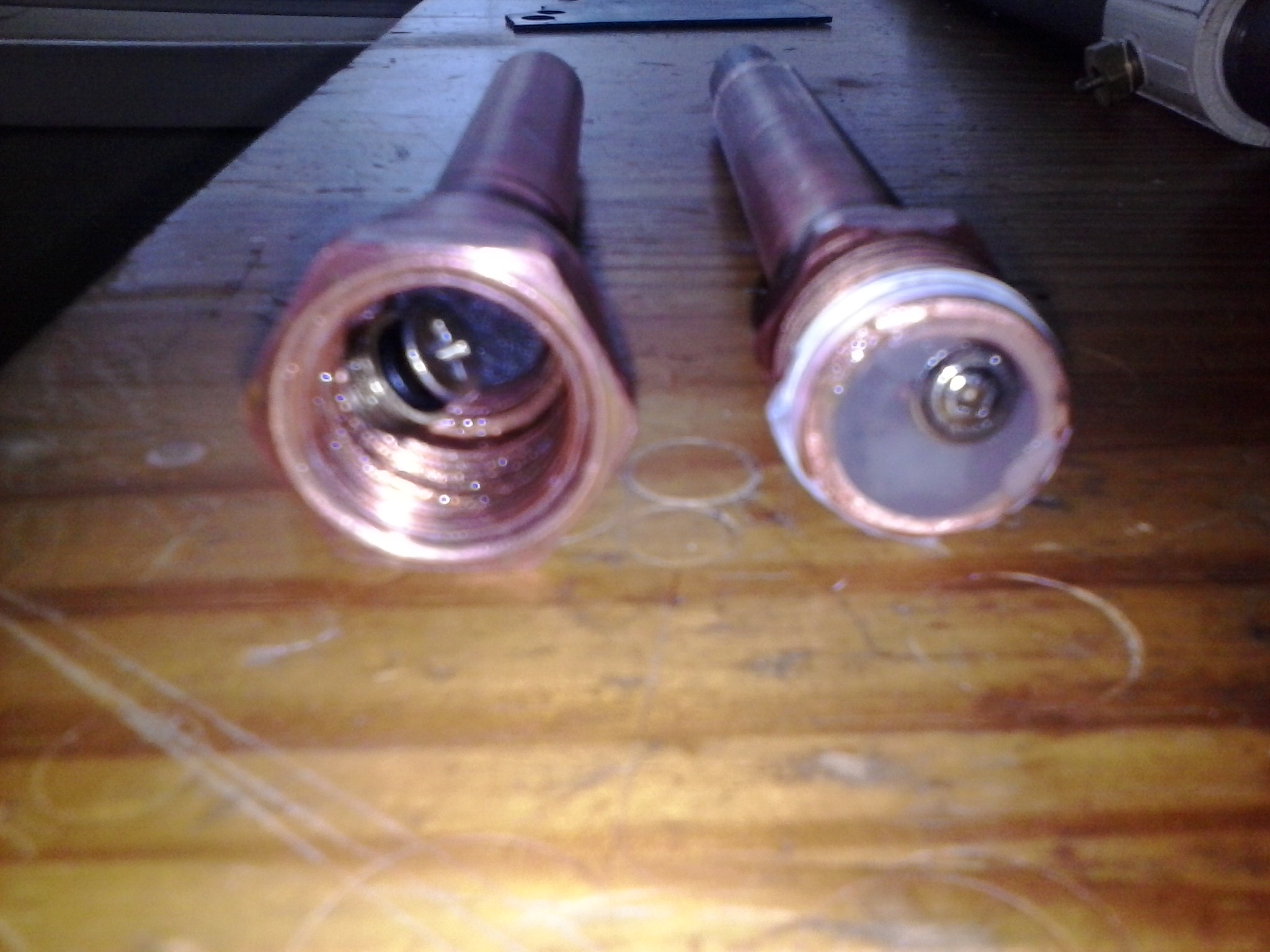

Its all high quality epoxy inside , the barrel has about an inch long plug. The pump tube is simply
another inch of epoxy with a tiny hole drilled thru and a silicone (or rubber ) flap screwed on.
Ah, and the pilot trigger is as simple as an o-ring on a gold construction screw poked thru brass end cap
that was drilled out larger than the screw , allowing pilot venting.
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
dajoro wrote:Its all high quality epoxy inside
Fantastic work, great to see some out-of-the-box thinking and fabrication
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
Im always outside-the-box due to being a cheapo ( resourceful ?)
This is genuinely almost bringing a tear to my eye, those epoxy endcaps! *sigh*
[suppresses integrally]shrouded mufflers
I'm really liking the self-contained nature of these creations, it would be a great concept for a cane gun!
For some reason I'm reminded of clide's mini-pump, though the latter being coaxial was more compact.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
The execution is different but the concept of a self-contained coaxial is there. Great stuff!
