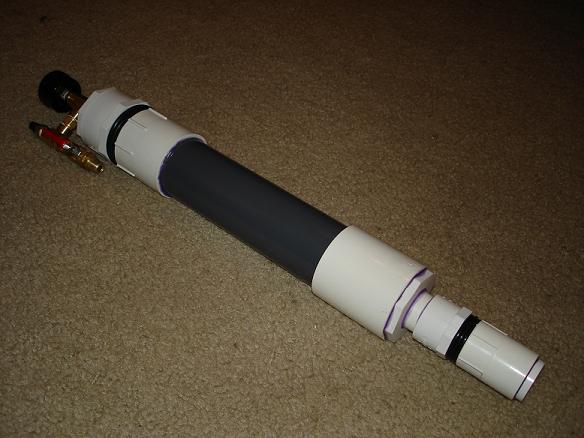

This is my first attempt at a piston gun. It has a 2" SCH 80 chamber and a 1/2" SCH 40 barrel. It uses a barrel sealing piston made out of a 1" coupling wrapped in duct tape. After a little tweaking and design adjustment, it's working very reliably. I just finished it and am yet to actually fire anything from it. I'll let you know know what happens when I do though.
Attachments
Last edited by ethal1222 on Wed Feb 14, 2007 4:58 pm, edited 2 times in total.
User avatar
Insomniac
Sergeant 3
Sergeant 3
Posts: 1297
Joined: Mon Dec 18, 2006 3:47 pm
Location: Australia

Fri Feb 09, 2007 7:35 pm

Wow, nice gun!!

Are you going to paint it?
I wonder how much deeper the ocean would be without sponges.
Right now I'm having amnesia and deja vu at the same time. I think I've forgotten this before.

Add me on msn!!! insomniac-55@hotmail.com
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Fri Feb 09, 2007 7:55 pm

I'm not sure if I'll paint it or not. I know most people think plain pvc is boring but I kind of like the look of this gun as it is.
User avatar
VH_man
Staff Sergeant 4
Staff Sergeant 4
Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Been thanked: 1 time

Fri Feb 09, 2007 7:56 pm

NOOO!!! Dont paint it! YOu did a wicked nice job not leaving primer stains! and the schedule 80 looks sweet too!
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Fri Feb 09, 2007 8:00 pm

My thoughts exactly VH man. I really like the way the SCH 80 looks.
User avatar
experament-u2
Specialist 4
Specialist 4
Posts: 469
Joined: Tue Dec 26, 2006 11:18 pm

Fri Feb 09, 2007 8:18 pm

that is a sweet gun what did u use ti vent it ?
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Fri Feb 09, 2007 8:41 pm

It's a 1/4" ball valve.
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Sat Feb 10, 2007 6:20 pm

I just took a few test shots. With some toilet paper wadding, it shot AA batteries clear out of sight at 70 psi. They were hard to see as fast as they were going. I heard one of them hit a tree about 100 yards away and it made a nice loud "WHACK" that echoed really well.
LGM
Specialist 3
Specialist 3
Posts: 320
Joined: Mon Jan 22, 2007 3:06 pm

Sat Feb 10, 2007 6:29 pm

Nice, glad to see the valve is working. Crab apples are a great and cheap ammo in the mid-late summer.
User avatar
VH_man
Staff Sergeant 4
Staff Sergeant 4
Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Been thanked: 1 time

Mon Feb 12, 2007 3:49 pm

Like i said, thats a shweet cannon..... youre using 1/2 inch pipe as a barrel right? pump it up to 30 PSI and shoot nerf darts....... its wicked fun and accurate. or, you could shoot marbles.........
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

Mon Feb 12, 2007 5:26 pm

Very nice. If the piston is floating within the sch80 pipe, try using a 1 1/2" plug for a piston. It will be a near perfect fit. Look for DURA brand plugs which have the plug wall opposite from the hex, those will work best.
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Wed Feb 14, 2007 4:37 pm

Thanks Arsenal, I didn't think of that. I'll keep my eyes open for one. Generally, the only brands of fittings I can find are LASCO and MILTON. Do you think they would work?
User avatar
CpTn_lAw
Corporal 5
Corporal 5
Posts: 987
Joined: Sun Sep 11, 2005 9:10 am
Location: France

Wed Feb 14, 2007 4:49 pm

marbles are the most effective and yet available ammo you can get. Pretty dense, they're accurate up to 20 meters, well, not as accurate as an air rifle, but pretty accurate though. But, do not underestiate the kinetic energy of a marble, that's an advise if you haven't fired one yet.
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

Wed Feb 14, 2007 8:11 pm

ethal1222 wrote:Thanks Arsenal, I didn't think of that. I'll keep my eyes open for one. Generally, the only brands of fittings I can find are LASCO and MILTON. Do you think they would work?
They could, but the hex end is also the "plug" end which has the wall. You could always lathe down the hex.

If you found a DURA plug, you can just cut the hex end off because the wall is opposite it. The you would have a nice piston.
ethal1222
Private 2
Private 2
Posts: 22
Joined: Tue Feb 06, 2007 6:54 pm

Wed Feb 14, 2007 9:33 pm

That's what I thought you were talking about Arsenal. Do you know of anywhere that sells DURA fittings?
