Well, lately everyone's been making "clean" guns; making the cannon, then leaving it unpainted, but using clear primer and cement. I decided to make my own.
It's just a basic coaxial, 1 1/4" and 1/2." The bushing in the front was cemented straight into the pipe.
We all know that diaphragms open extremely fast but have low flow, and piston open relatively slowly compared to diaphragms, but have high flow. This cannon has a piston with a diaphragm on the front, so it incorporates both the fast opening time of a diaphragm and the high flow of a piston. The diaphragm flexes back, allowing air to flow into the barrel, and then the piston is blown back, so air has tons of room to blast down the barrel.
Attachments
The whole thing.
The whole thing.

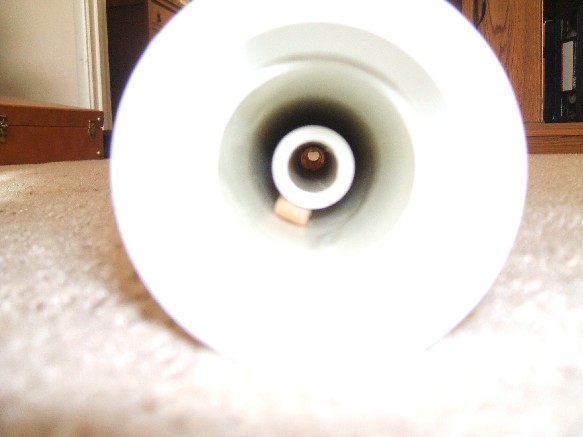

Looking down the barrel through the chamber. The little barrel support is half of a clothespin.
Looking down the barrel through the chamber. The little barrel support is half of a clothespin.
Tim's new gun 040.jpg (32.95 KiB) Viewed 2473 times

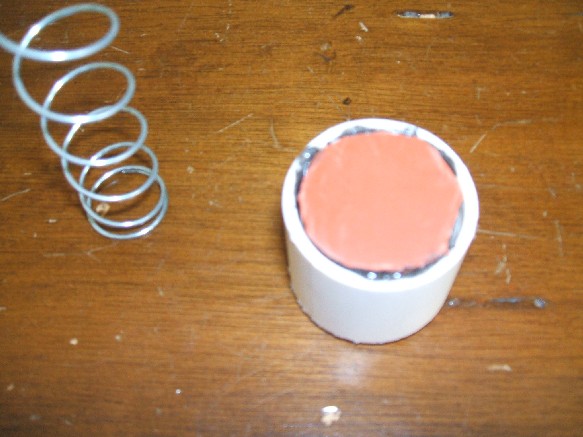

A shot of the spring and the diaphragm/piston
A shot of the spring and the diaphragm/piston

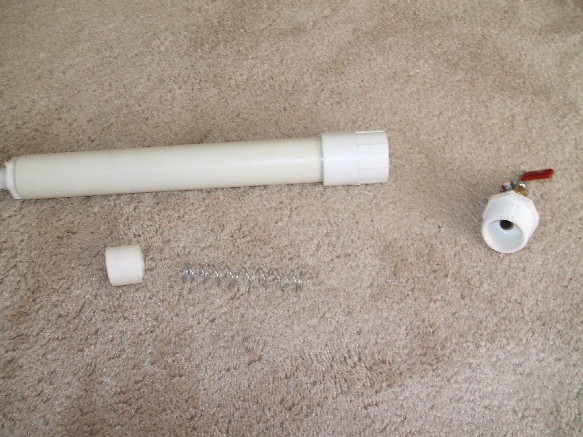

Everything
Everything
Top
User avatar
joannaardway
Corporal 5
Corporal 5
Posts: 949
Joined: Mon Oct 09, 2006 4:57 pm
Location: SW Hertfordshire, England, UK.

Fri Feb 23, 2007 1:35 pm

You definately achieved the clean requirement - Kudos.

How well does your "revolutionary design" work?
Novacastrian: How about use whatever the heck you can get your hands on?
frankrede: Well then I guess it won't matter when you decide to drink bleach because your out of kool-aid.
...I'm sorry, but that made my year.
Top
User avatar
Scope
Specialist 3
Specialist 3
Posts: 342
Joined: Fri Nov 17, 2006 10:31 pm
Location: Ct
Contact:
Contact Scope

Fri Feb 23, 2007 3:25 pm

Yea how does this hybrid valve work... Im building a coaxial... convince me to use it!

Its really nice dude... really really clean looking
Top
LGM
Specialist 3
Specialist 3
Posts: 320
Joined: Mon Jan 22, 2007 3:06 pm

Fri Feb 23, 2007 4:09 pm

I am deffinetly going to use that idea for a valve in my next cannon, but I am going to tweak it a bit.
Really nice clean gun.
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Fri Feb 23, 2007 5:57 pm

I experimented today with a regular piston and diaphragm, just to see how much of a difference it makes. I'd say the difference is about 50 fps, but I can't tell that much by sight.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Fri Feb 23, 2007 7:23 pm

Very good job! Question -- Just one barrel saport ? I'll guess at a distance, 175 yards with a spud for ammo, at 75/80 psi.
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Fri Feb 23, 2007 7:32 pm

When the cement cured, the barrel was crooked, so I stuck the clothespin in, and now it's straight.
Top
Kobl
Specialist
Specialist
Posts: 116
Joined: Tue Nov 07, 2006 4:58 pm

Sun Feb 25, 2007 2:51 pm

What kind of rubber did you use for the diaphragm? Also, did you use a 3/4" endcap or a short section of 1 inch pipe for the piston?phragm body?

-Butt
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Sun Feb 25, 2007 3:41 pm

The piston/diaphragm is a short piece of 1" SDR 21 with a 1/2" end cap JB Welded in, with the rubber JB WElded to the open end of the 1/2" cap. The rubber is just 1/16" red sheet rubber, you can get sheet rubber at almost any hardware store, check the flexibility first. The best kind of diaphragms are flexible but somewhat stiff, so they don't act like a rubber burst disc.
