3042 Cubic Inch Hybrid WORKS!
- Fnord
- First Sergeant 2
- Posts: 2239
- Joined: Tue Feb 13, 2007 9:20 pm
- Location: Pripyat
- Been thanked: 1 time
- Contact:
Quite a sustained boom you've got there. Even that 2" port seems to take a while to vent.
Also, I like how you didn't waste any time getting this thing together.
Slackers such as myself seem to be dominating the forum as of late
And I'm assuming that poor pressure gauge is now dead.
Also, I like how you didn't waste any time getting this thing together.
Slackers such as myself seem to be dominating the forum as of late
And I'm assuming that poor pressure gauge is now dead.
- Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
The thing weighs over half my weight. Can you imagine holding on to it when it is fired. It would give you quite a toss. Add a barrel and projectile and that would be a serious kick.jackssmirkingrevenge wrote: surprised it didn't loop around the tree, nicely done
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
I was thinking of trying out this pendulum setup with my piston hybrid just for entertainment/a reason to shoot the gun. At a 10x mix, HGDT reckons it would have a similar performance with Dornep's cannon at a 3x (assuming the barrels and projectiles are the same and taking in to account HGDT's lack of ability to model piston valves). Considering my cannon weighs about 1/4 what this cannons weighs, it would have the same momentum but higher recoil velocity and energy due to the similar performance but lighter cannon.Technician1002 wrote:The thing weighs over half my weight. Can you imagine holding on to it when it is fired. It would give you quite a toss. Add a barrel and projectile and that would be a serious kick.
Does that transfer directly in to this practical scenario where if I replicated Dornep's video, my cannon would swing more violently upon firing or have I wagged* one too many physics lessons at high school?
Part of the reason I'm asking was because I was thinking about recoil when firing the MiniBoy and what it would compare to. For example, the recoil velocity of a .500 S&W Magnum is about 9m/s and energy about 60J whereas with a 150g projectile at a 10x mix, the piston hybrid gives figures of about 3m/s and 80J. That doesn't sound like a whole much more and is probably more easily dealt with considering the recoil for the cannon is 'slow' compared to the S&W's 'sharp' recoil and the fact I have a recoil bar to help distribute the force.
I'm usually terrible at the physics of firearms so things like this I feel I should check with people who know what they're doing.
Dornep, I've strung cannons up before to paint them, never had the idea to actually fire one when it's like that. Cool idea
*skipped, cut, not attended
Thanks for the replies guys.
The next hurdle will be the barrel.
I want at least a 2" x 20' barrel that...
1. Won't Sag
2. Won't whip back and forth and snap off the union when fired
3. Can be broken down into 10' sections
4. Doesn't weight a 1000lbs
5. Doesn't cost a $1000
hmmm
The next hurdle will be the barrel.
I want at least a 2" x 20' barrel that...
1. Won't Sag
2. Won't whip back and forth and snap off the union when fired
3. Can be broken down into 10' sections
4. Doesn't weight a 1000lbs
5. Doesn't cost a $1000
hmmm
McMaster-Carr item numbers 48855K16 and 6803K17 both fit the bill if you find a good way to connect two of them. You'll require a barrel support no matter what you use.
- jrrdw
- Moderator
- Posts: 6571
- Joined: Wed Nov 16, 2005 5:11 pm
- Location: Maryland
- Has thanked: 39 times
- Been thanked: 22 times
- Contact:
It will all have to recoil as one to keep that noise down, even then it's a tall order...2. Won't whip back and forth and snap off the union when fired
A lot of bracing???????
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Moonbogg
- Staff Sergeant 3
- Posts: 1731
- Joined: Mon Oct 13, 2008 10:20 pm
- Location: SoCal
- Has thanked: 153 times
- Been thanked: 100 times
That thing is a true beast. As far as supporting a 20' barrel, thats going to be a project. Have a look at FEAR (a cannon on this site) I can't find the link to it, but its a huge hybrid kind of like yours with like a mile long barrel. I don't remember even seeing a lot of bracing on his barrel, but go have a look in the showcase or maybe someone will link it. Nice work.Dornep wrote:Thanks for the replies guys.
The next hurdle will be the barrel.
I want at least a 2" x 20' barrel that...
1. Won't Sag
2. Won't whip back and forth and snap off the union when fired
3. Can be broken down into 10' sections
4. Doesn't weight a 1000lbs
5. Doesn't cost a $1000
hmmm
- mobile chernobyl
- Corporal 3
- Posts: 756
- Joined: Sun Dec 03, 2006 11:53 am
- Been thanked: 7 times
I think he doesn't have a lot of bracing, because he uses supports from the ground to prop up his barrel - it would be very "noodley" without such a support.
Jack.. that picture is exactly the nightmare that comes to mind when I think of raising the barrel into the air on this thing....
I remember seeing the FEAR cannon back in the day before I went AWOL from the site.. To me... his cannon is more of an 88mm flat shooting tank killer while I'm hoping mine will be more like the Paris Gun above... lol

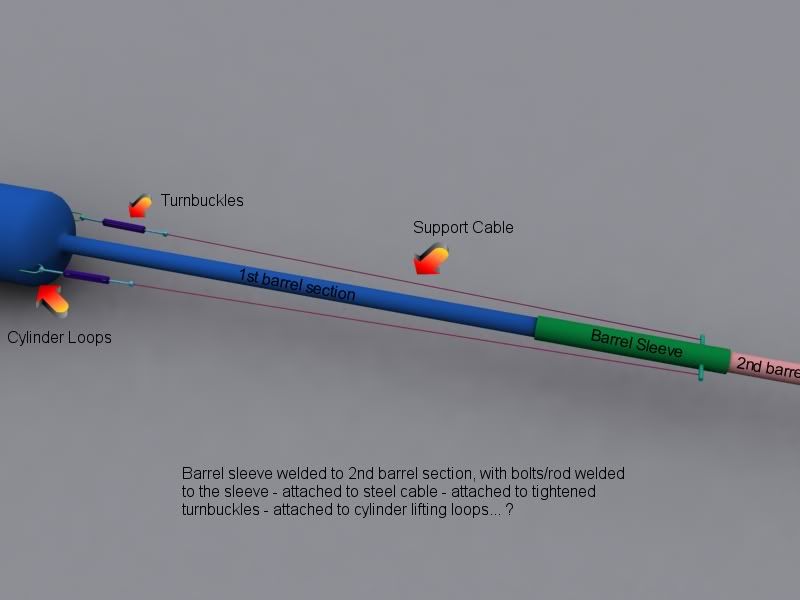

I have an idea of using turnbuckles that i can tighten attached to cables going to the barrel to add support and make a tight barrel seal between the two sections..
I remember seeing the FEAR cannon back in the day before I went AWOL from the site.. To me... his cannon is more of an 88mm flat shooting tank killer while I'm hoping mine will be more like the Paris Gun above... lol
I have an idea of using turnbuckles that i can tighten attached to cables going to the barrel to add support and make a tight barrel seal between the two sections..
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
To be fair, FEAR had a 50' barrel and I know it was at least tested at 10x mixes (not sure whether it ever fired something at that mix) whereas this will have a barrel half the length and operate at much lower mixes (although it is twice the volume). Your cannon could probably just out-perform it at low mixes but FEAR leaves this in the dust if it decides to go up to 10x mixes.Dornep wrote:I remember seeing the FEAR cannon back in the day before I went AWOL from the site.. To me... his cannon is more of an 88mm flat shooting tank killer while I'm hoping mine will be more like the Paris Gun above... lol
- Lockednloaded
- Staff Sergeant
- Posts: 1566
- Joined: Thu Sep 03, 2009 9:38 pm
- Location: Texas, USA
- Been thanked: 6 times
Wow.
Love the power and sustained combustion, you could probably hook it up to a Vogt pattern loader for full auto
Love the power and sustained combustion, you could probably hook it up to a Vogt pattern loader for full auto
I love lamp
- Fnord
- First Sergeant 2
- Posts: 2239
- Joined: Tue Feb 13, 2007 9:20 pm
- Location: Pripyat
- Been thanked: 1 time
- Contact:

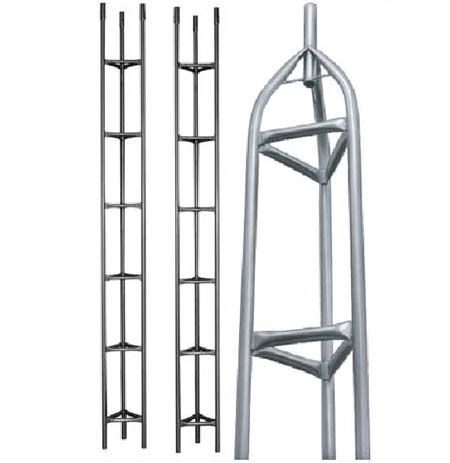

If you can get a hold of a section of this stuff, you'll have most of the work of making a barrel support done for you already. Even steel antenna towers are fairly light for their size.
- Attachments
-
- 30AMERTOW-SPC_zoom.jpg (33.09 KiB) Viewed 2913 times
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
yeah it begs for a 4" portEven that 2" port seems to take a while to vent
I guess that would make sense... since you're limited to low mixes it would make sense to make the barrel as large as possible...
bigger barrel = greater barrel volume = quieter gun
Plus it doesn't mean you're limited to big heavy and slow ammo only... With saboted ammo you could lob rounds 1.5 miles away
you see JSR I wrote sabots... that's right now you've got to agree with me : D
ohh and before you decide to put a long barrel on it check with HGDT if it makes any sense at all
