Details?drex wrote:i to am giting some funky funky readings,
HGDT 0.5 online
lol, i try to recreate the errors but now i cant, lol. its kinda like when you take your car to the shop because it has been making a funny sound but once you get there the noise stops.
off topic kinda:what do you do/what kind of education do you have? because this program seems to be a bit to cool for your average guyt o make
off topic kinda:what do you do/what kind of education do you have? because this program seems to be a bit to cool for your average guyt o make
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
ok, I understand the freezing. Yes, I realize that that was majorly unideal conditions, I just though it strange.
On the graphing, would it show any better if I were to, say, change the viewing rectangle (rescale the graph) , or does it graph every 25 calculated points, and not change with the viewing rectangle?
edit: also, I am new to the whole burst disk thing, and so wondering: is it even remotely possible to get a burst disk to not burst until 1500-2000psi across a 1" diameter?
On the graphing, would it show any better if I were to, say, change the viewing rectangle (rescale the graph) , or does it graph every 25 calculated points, and not change with the viewing rectangle?
edit: also, I am new to the whole burst disk thing, and so wondering: is it even remotely possible to get a burst disk to not burst until 1500-2000psi across a 1" diameter?
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
-
D_Hall
- Staff Sergeant 5
- Posts: 1924
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 8 times
- Been thanked: 44 times
Rescaling won't help in your case.Lentamentalisk wrote:On the graphing, would it show any better if I were to, say, change the viewing rectangle (rescale the graph) , or does it graph every 25 calculated points, and not change with the viewing rectangle?
It's totally possible (and done all the time in industrial circles), but you aren't going to do it with aluminum foil.edit: also, I am new to the whole burst disk thing, and so wondering: is it even remotely possible to get a burst disk to not burst until 1500-2000psi across a 1" diameter?
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
then how high can one get across a 1" union? I am trying to see how high of a mix is worth making. Using HGDT I noticed that you can even get better results with a low pressure burst disk by using a lower mix, so I dont want to way over do it.
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
-
jimmy101
- Sergeant Major 2
- Posts: 3206
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 6 times
- Been thanked: 18 times
- Contact:
The availability of GGDT (v4.6) and HGDT(v0.5.4) makes it possible to compare the performance of combustion and pneumatic guns without actually having to build both guns. Given the usual caveats about the reliability of the models, the suitability/accuracy of the various input parameters etc...
3"x12" chamber, 2"x36" barrel, 100g shell with 10 PSIG friction. Both guns with CB ~0.8. Wild-ass guess as to the time it takes to open a 2" ball valve of 0.1 seconds.
Looks to me that HGDT/GGDT say a generic combustion will greatly out perform a same sized ball valve pneumatic charged to 120 PSIG.
Switching the pneumatic to a chamber sealing valve using the parameters D_Hall has on his design page for the Orbit Watermaster 1" sprinkler valve... The combustion still outperforms the pneumatic.
I thought that it was because of the low CB ratio, combustions are most efficient at CB~0.8 (but not necisarily most powerful), pneumatics usually have CBs of a couple. So, lengthened the chamber of both guns to 3x what it was, CB now 2.25. Combustion still greatly outperforms the pneumatic.
Somebody else want to give this a try? I've not used GGDT all that much and I might have something goofed up. The combustion results appear reasonable to me. The pneumatic results seem way to low.

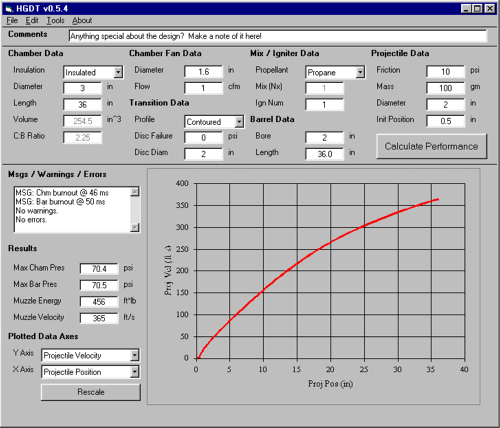

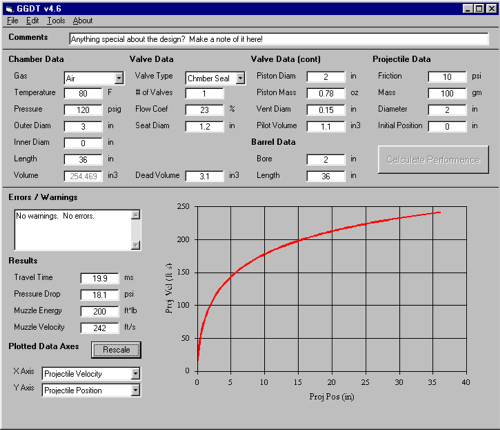

The two screen shots are for the CB 2.25 and Orbit sprinkler valve comparison.
3"x12" chamber, 2"x36" barrel, 100g shell with 10 PSIG friction. Both guns with CB ~0.8. Wild-ass guess as to the time it takes to open a 2" ball valve of 0.1 seconds.
Looks to me that HGDT/GGDT say a generic combustion will greatly out perform a same sized ball valve pneumatic charged to 120 PSIG.
Switching the pneumatic to a chamber sealing valve using the parameters D_Hall has on his design page for the Orbit Watermaster 1" sprinkler valve... The combustion still outperforms the pneumatic.
I thought that it was because of the low CB ratio, combustions are most efficient at CB~0.8 (but not necisarily most powerful), pneumatics usually have CBs of a couple. So, lengthened the chamber of both guns to 3x what it was, CB now 2.25. Combustion still greatly outperforms the pneumatic.
Somebody else want to give this a try? I've not used GGDT all that much and I might have something goofed up. The combustion results appear reasonable to me. The pneumatic results seem way to low.
The two screen shots are for the CB 2.25 and Orbit sprinkler valve comparison.
- Attachments
-
- GGDT_25.gif (36.74 KiB) Viewed 2988 times
-
- HGDT_25.gif (37.92 KiB) Viewed 2988 times
The pneumatic results are oddly low because the flow is choked so terribly. A 1" sprinkler valve doesn't even have a quarter the flow of the 2" port on the combustion. Use a 2" burst disk valve on the pneumatic, and it should be close to the combustion, or maybe even more powerful.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
-
jimmy101
- Sergeant Major 2
- Posts: 3206
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 6 times
- Been thanked: 18 times
- Contact:
Spudfarm and DYI
Thanks, like I said, I'm not to familar with GGDT.
If I'm reading you correct, for this size gun, "generic" type valves (ball valves open too slowly, typical sprinkler valves are flow choked) basically suck as pneumatics? At least, compared to a generic combustion of the same size. To get the pneumatic to outperform the combustion you would have to go to a custom built valve with a much larger throat. Since the required throat is a funtion of the barrel ID, large bore combustion guns will tend to out perfom a pneumatic built with an "off the shelf" valve (same chamber volume, barrel dimensions, ammo etc.)
Thanks, like I said, I'm not to familar with GGDT.
If I'm reading you correct, for this size gun, "generic" type valves (ball valves open too slowly, typical sprinkler valves are flow choked) basically suck as pneumatics? At least, compared to a generic combustion of the same size. To get the pneumatic to outperform the combustion you would have to go to a custom built valve with a much larger throat. Since the required throat is a funtion of the barrel ID, large bore combustion guns will tend to out perfom a pneumatic built with an "off the shelf" valve (same chamber volume, barrel dimensions, ammo etc.)
-
D_Hall
- Staff Sergeant 5
- Posts: 1924
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 8 times
- Been thanked: 44 times

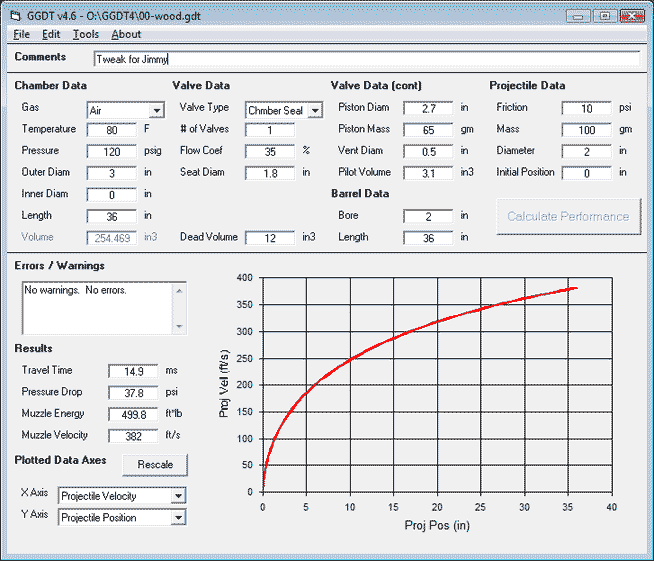

Depends on your definition of "generic" and "off the shelf."jimmy101 wrote:If I'm reading you correct, for this size gun, "generic" type valves (ball valves open too slowly, typical sprinkler valves are flow choked) basically suck as pneumatics? At least, compared to a generic combustion of the same size. To get the pneumatic to outperform the combustion you would have to go to a custom built valve with a much larger throat. Since the required throat is a funtion of the barrel ID, large bore combustion guns will tend to out perfom a pneumatic built with an "off the shelf" valve (same chamber volume, barrel dimensions, ammo etc.)
A 2" sprinkler valve purchased online will outperform the combustion gun (at least, according to the models), but I wouldn't consider it "custom" by any stretch of the imagination.
That said, you are correct in that pneumatics don't scale well to large bores. They quickly become cost prohibitive, yada yada....
- Attachments
-
- 2inch.gif (29.86 KiB) Viewed 2963 times
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
...hence our interests in semi-auto and cartridge combustions...D_Hall wrote:That said, you are correct in that pneumatics don't scale well to large bores. They quickly become cost prohibitive, yada yada....
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
-
jimmy101
- Sergeant Major 2
- Posts: 3206
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 6 times
- Been thanked: 18 times
- Contact:
D_Hall
Gotcha, makes perfect sense. Still a 2" valve is probably pretty pricey.
A combustion gun should be much less sensitive to a choke in the gas flow path. Much higher gas temp, much lower gas density --> much less pressure drop across the choke. If you model the combustion with a 1" burst disk it makes very little difference in the performance of the combustion. I suppose HGDT and GGDT model the choke a lot differently though, HGDT isn't using the "flow coeffic" parameter at all, which seems to be pretty critical to the performance of the pneumatic.
So, assuming a standard 1" sprinkler valve, reduce the choke affect by going to a 1" barrel instead of 2", drop the ammo mass (100g to 25g) and friction (10 PSI to 2.5 PSI, probably should have used 5 PSI) ... I get the pneumatic outperforms the combustion by ~13% in muzzle velocity, 28% in KE. Significant but not a huge difference.
But now the guns' CB is 3. Both combustion and pneumatics will perform better with a longer barrel. So, increase the barrel length to 108" for a CB of 1. Now the pneumatic outperforms the combustion by just 4% (8.5% in KE). I think it would be pretty difficult to actually measure a 4% change in performance.
So I'm not seeing a gross difference in performance compairing an "advance combustion" (metered fuel, chamber fan, double bevel spudcutter, single spark gap) with a "generic" pneumatic made with commonly available (and affordable) off-the-shelf components. Looks to me that to get a pneumatic to really outperform a combustion you have to go to a custom built valve.
But, if you are using a custom built valve then you should probably compare that with a burst disk combustion (the burst disk combustion would be easier to make than most custom valves for a pneuamtic?) ...
YMMV
Gotcha, makes perfect sense. Still a 2" valve is probably pretty pricey.
A combustion gun should be much less sensitive to a choke in the gas flow path. Much higher gas temp, much lower gas density --> much less pressure drop across the choke. If you model the combustion with a 1" burst disk it makes very little difference in the performance of the combustion. I suppose HGDT and GGDT model the choke a lot differently though, HGDT isn't using the "flow coeffic" parameter at all, which seems to be pretty critical to the performance of the pneumatic.
So, assuming a standard 1" sprinkler valve, reduce the choke affect by going to a 1" barrel instead of 2", drop the ammo mass (100g to 25g) and friction (10 PSI to 2.5 PSI, probably should have used 5 PSI) ... I get the pneumatic outperforms the combustion by ~13% in muzzle velocity, 28% in KE. Significant but not a huge difference.
But now the guns' CB is 3. Both combustion and pneumatics will perform better with a longer barrel. So, increase the barrel length to 108" for a CB of 1. Now the pneumatic outperforms the combustion by just 4% (8.5% in KE). I think it would be pretty difficult to actually measure a 4% change in performance.
So I'm not seeing a gross difference in performance compairing an "advance combustion" (metered fuel, chamber fan, double bevel spudcutter, single spark gap) with a "generic" pneumatic made with commonly available (and affordable) off-the-shelf components. Looks to me that to get a pneumatic to really outperform a combustion you have to go to a custom built valve.
But, if you are using a custom built valve then you should probably compare that with a burst disk combustion (the burst disk combustion would be easier to make than most custom valves for a pneuamtic?) ...
YMMV
-
D_Hall
- Staff Sergeant 5
- Posts: 1924
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 8 times
- Been thanked: 44 times
Agree.jimmy101 wrote:A combustion gun should be much less sensitive to a choke in the gas flow path. Much higher gas temp, much lower gas density --> much less pressure drop across the choke.
Actually, they handle the choking in virtually identical manners. The difference is that since combustion guns tend to have very straight forward plumbing, it's easy to make assumptions based on whether or not it's a blunt or contoured transition between the chamber and barrel (whether you know it or not, when you select one of those, you're selecting a flow coefficient). Pneumatics, by comparison, can have all sorts of crazy gas paths that make simple assumptions concerning flow coefficients impossible to make with any sort of reliability.I suppose HGDT and GGDT model the choke a lot differently though, HGDT isn't using the "flow coeffic" parameter at all, which seems to be pretty critical to the performance of the pneumatic.
More or less. The beauty of pneumatics isn't so much in their performance, but in their clean and simple operation. Oh, and in their ability to deliver reliable and yet variable power from the same package.Looks to me that to get a pneumatic to really outperform a combustion you have to go to a custom built valve.
