[Solved... It's not] New Type of BBMG?

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
Bluetooth
Corporal 4
Corporal 4
Posts: 863
Joined: Tue Jun 27, 2006 7:57 am

Sun Apr 11, 2010 2:26 pm

I don't know if this idea has been used before (please tell me if that is so), but I think I came up with a possibly-working BBMG design. It uses Bernoulli's principle as the "cloud" type do, but works more like an airbrush (the type that siphons from a cup below or to the side of it). I don't know if it would work, or if the effect would be strong enough with only 100 PSI, or whatever people use in these things. Just a thought (I think vortex blocks will still be better).
Attachments
Last edited by Bluetooth on Sun Apr 11, 2010 2:49 pm, edited 2 times in total.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26183
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 547 times
Been thanked: 326 times

Donating Members

Sun Apr 11, 2010 2:32 pm

You mean something like the LARC M-19?

TakerLabs on spudtech was a fan of this sort of design.

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
clemsonguy1125
Sergeant 5
Sergeant 5
Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast

Sun Apr 11, 2010 2:40 pm

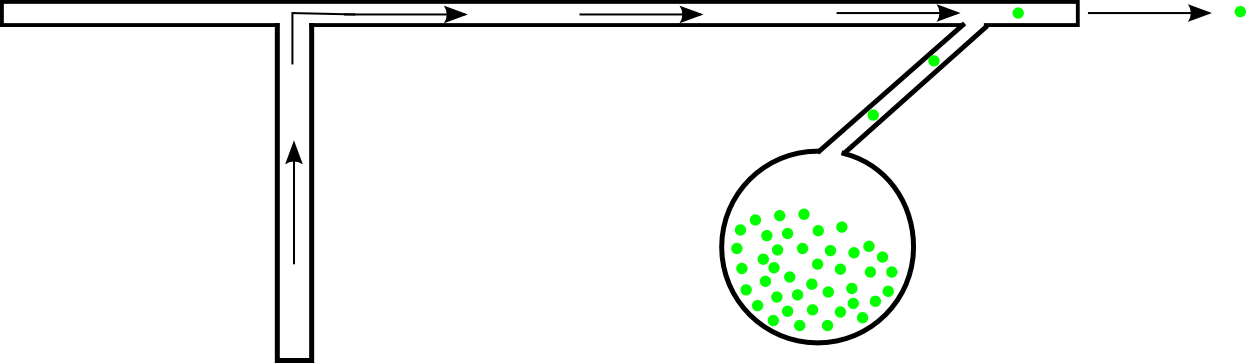

Something like this
Attachments
That is all.
User avatar
Bluetooth
Corporal 4
Corporal 4
Posts: 863
Joined: Tue Jun 27, 2006 7:57 am

Sun Apr 11, 2010 2:47 pm

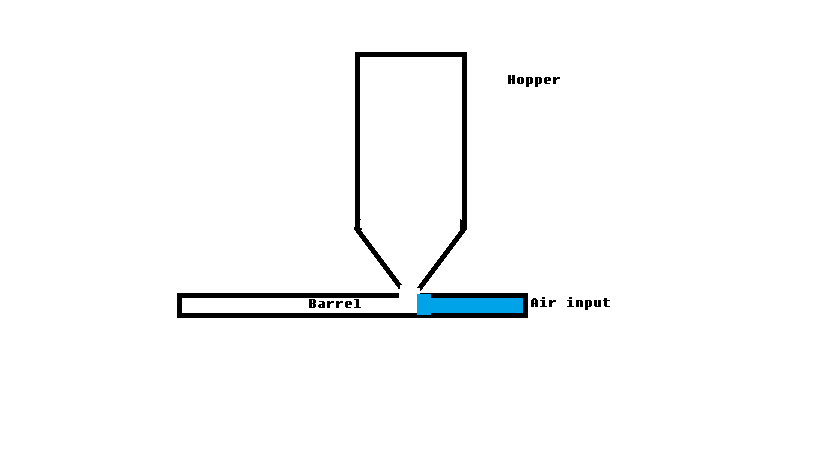

Oops... Forgot to attach the diagram I made :oops: . It is attached now. So anyways, that is exactly what I meant... Nevermind then, I guess it's not new.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26183
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 547 times
Been thanked: 326 times

Donating Members

Sun Apr 11, 2010 2:50 pm

Unless you're using really light BBs, and very high flow, I don't think your design would work at all. An interesting variation is the "vogt pattern" inline magazine.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Bluetooth
Corporal 4
Corporal 4
Posts: 863
Joined: Tue Jun 27, 2006 7:57 am

Sun Apr 11, 2010 2:58 pm

jackssmirkingrevenge wrote:Unless you're using really light BBs, and very high flow, I don't think your design would work at all. An interesting variation is the "vogt pattern" inline magazine.
Thanks... I'm not really into BBMGs anyway. I made a cloud and a vortex and then got bored of them. Thanks!
jimmy101
Sergeant Major
Sergeant Major
United States of America
Posts: 3198
Joined: Wed Mar 28, 2007 9:48 am
Location: Greenwood, Indiana
Has thanked: 5 times
Been thanked: 15 times
Contact:

Sun Apr 11, 2010 4:45 pm

Remember that something light a paint sprayer has a separate air inlet to the reservoir. Without it you'll only suck up a couple BBs before the pressure in the BB storage chamber drops enough to stop air flow out of the chamber.
