Fully Machined Bolt Action Rifle Build Log

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Xerxys
Private 3
Private 3
Posts: 40
Joined: Sun May 18, 2008 3:14 am

Wed Jul 21, 2010 5:20 am

I'm moving forward slowly but steadily with this, but I've never really documented a build of anything before, so bare with me and my crappy photography.

This is still in a very early stage, only the valve body and the connection between the tank and it are even started.
I'm in for the long haul with this one.

Also, if anyone in the Uk wants some machining/to get rid of any old tooling done, I can offer my amateur services, just pm me.
Attachments

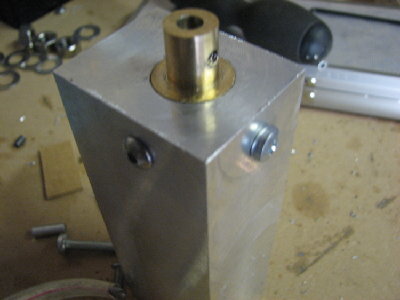

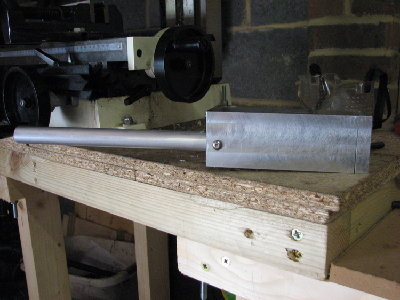

Pressure vessel attached
Pressure vessel attached

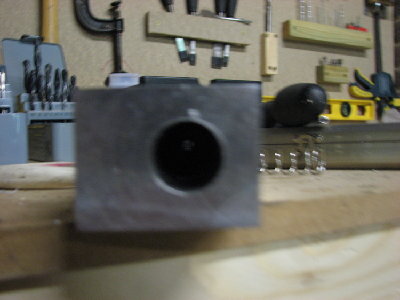

The massive hole bored in the block of Ali runs the whole way through.
The massive hole bored in the block of Ali runs the whole way through.
These bolts hold it in place.
These bolts hold it in place.

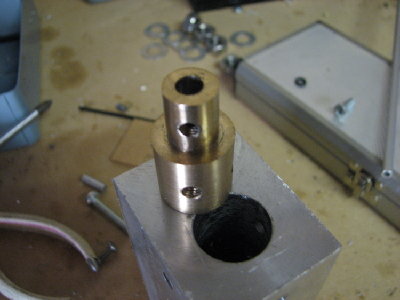

Tis connects the pressure vessel to the main body.
Tis connects the pressure vessel to the main body.

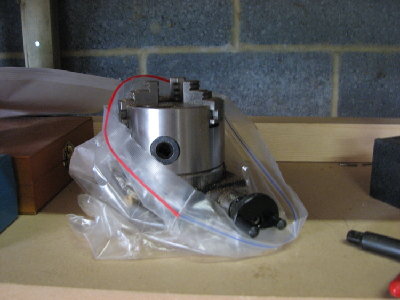

A Rotary Table, for making round things.
A Rotary Table, for making round things.

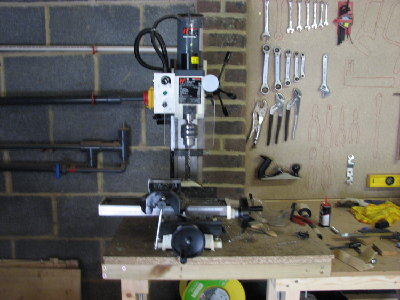

Yay for Milling machines! Also, you can see the ends of some less interesting cannons
Yay for Milling machines! Also, you can see the ends of some less interesting cannons

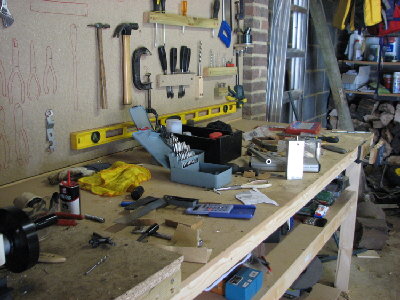

Always good to keep a tidy bench.
Always good to keep a tidy bench.
Last edited by Xerxys on Wed Jul 21, 2010 8:17 am, edited 1 time in total.
User avatar
urgle the danish cow
Specialist
Specialist
Posts: 176
Joined: Sun Jul 26, 2009 4:48 pm

Wed Jul 21, 2010 7:19 am

hey nice job, where is the bolt in this bolt action rifle? nice job with the milling. not many people on spudfiles ever uses machine work on there guns
User avatar
chinnerz
Specialist 4
Specialist 4
Posts: 470
Joined: Mon Dec 28, 2009 8:08 am

Wed Jul 21, 2010 7:24 am

Looking good so far.

you should add "Build Log" to the title, so every one knows what to expect.
User avatar
deathbyDWV
Corporal
Corporal
Posts: 576
Joined: Sat May 16, 2009 4:02 pm
Location: Owasso, OK

Wed Jul 21, 2010 10:39 am

Looks good. Also same as above. What part is this exactly?
Life's too short to mark off the items on your wish list...
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

Wed Jul 21, 2010 12:17 pm

Wow I didn't know anything about rotary tables until I saw this post. That looks like an extremely useful accessory to a milling machine. Excellent work, and good for you having a setup like that. You make most of use jealous. :lol:
Xerxys
Private 3
Private 3
Posts: 40
Joined: Sun May 18, 2008 3:14 am

Fri Jul 23, 2010 7:33 am

OK, so I've done some math.

I was planning a hammer valve, but unfortunately I just figured out that if the valve stem had a radius of 3mm, (Diam=6mm) then a pressure of 400psi (0.28123 kg/mm2) would exert 7.95kg.

To clarify; 0.2812 (3^2 pi) = ~8kg

8kg is too much force for as small a hammer as I had planned, I think, and a bigger one isn't an option.

The goal is to have a small repeating valve (one pull of the trigger does not discharge the whole tank, cock, fire again etc.)

To that aim I did some modeling of another possible valve design, but I am not sure how well I can make internal O-ring grooves. If anyone has had any experience making them, I'd really like to know how it went.

Has anyone made a valve like this before? Any comments and ideas are welcome, this is certainly not final.
Attachments

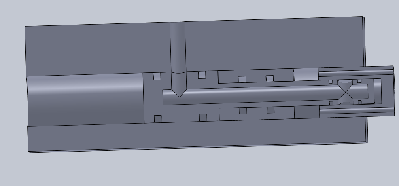

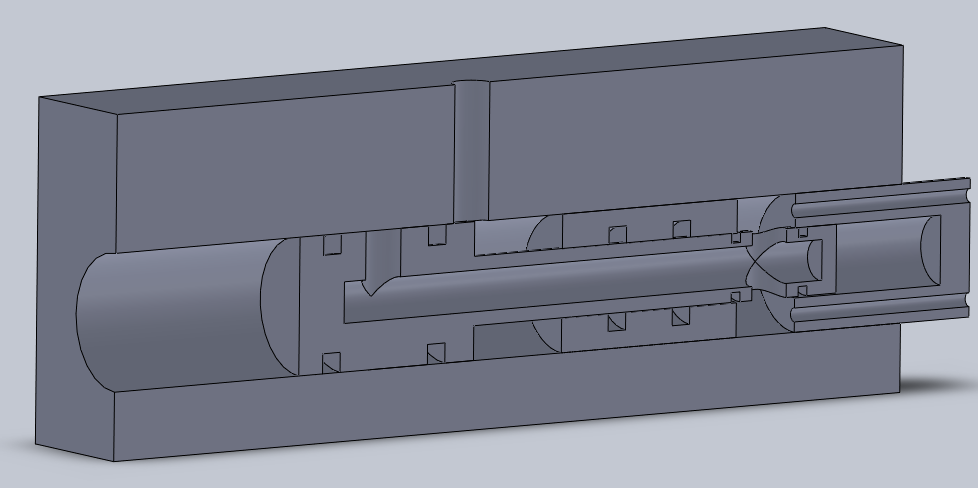

The stem/bolt of the valve, filled with air is now pushed forward, closing the hole allowing air in, and opening the the hole to the valve.
The stem/bolt of the valve, filled with air is now pushed forward, closing the hole allowing air in, and opening the the hole to the valve.
Air at 400psi comes int through the small holes at the front. It fills the inside of the valve stem/bolt, the bit in the middle.
Air at 400psi comes int through the small holes at the front. It fills the inside of the valve stem/bolt, the bit in the middle.

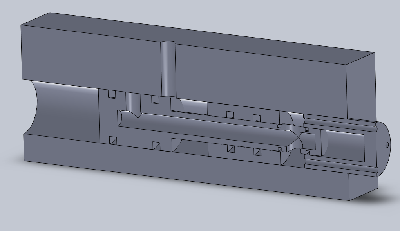

The new valve
The new valve
Last edited by Xerxys on Fri Jul 23, 2010 9:01 am, edited 1 time in total.
User avatar
chinnerz
Specialist 4
Specialist 4
Posts: 470
Joined: Mon Dec 28, 2009 8:08 am

Fri Jul 23, 2010 8:46 am

Make O-rings?? now theres an idea!
Xerxys
Private 3
Private 3
Posts: 40
Joined: Sun May 18, 2008 3:14 am

Fri Jul 23, 2010 9:01 am

O-ring grooves then, if you wanna get picky.
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 7 times

Fri Jul 23, 2010 9:56 am

It's quite easy to make o-rings, there are tutorials on the web.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
Xerxys
Private 3
Private 3
Posts: 40
Joined: Sun May 18, 2008 3:14 am

Fri Jul 23, 2010 11:05 am

I've had a quick look, but couldn't find much comprehensible advice.

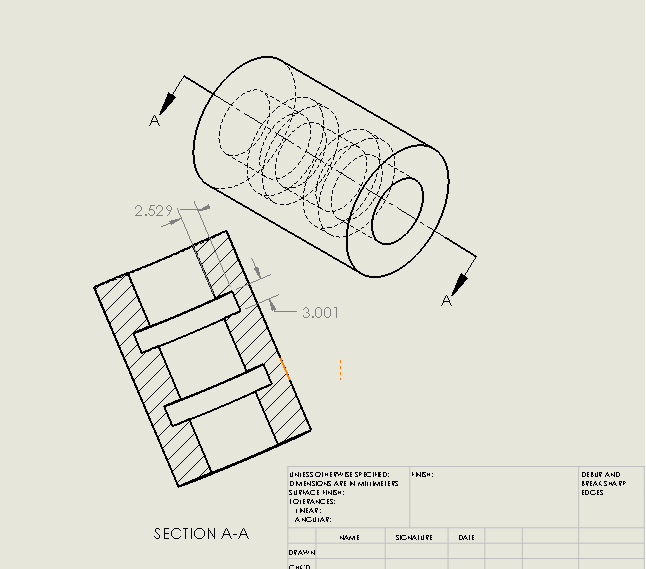

Here's the part I think will cause me difficulty in terms of getting it to seal
Attachments
Will this sort of thing seal reliably?
Will this sort of thing seal reliably?
Pressure Shielfor wb.PNG (21.47 KiB) Viewed 3107 times
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Fri Jul 23, 2010 11:25 am

Xerxys wrote:I've had a quick look, but couldn't find much comprehensible advice.
Machinery's Handbook is where you'll find what you're looking for.
Xerxys
Private 3
Private 3
Posts: 40
Joined: Sun May 18, 2008 3:14 am

Fri Jul 23, 2010 2:32 pm

That's your side of the pond, but still, 83$ for a book? That's quite a bit.
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Sat Jul 24, 2010 12:09 am

cough cough click here cough cough :lol:
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Posts: 2491
Joined: Sat Jan 19, 2008 10:14 am
Location: The Great White North...Canada eh!
Has thanked: 1 time
Been thanked: 6 times

Donating Members

Sat Jul 24, 2010 1:03 am

No hobby/machine shop is complete without at least one copy of Machinery's Handbook.

Pure gold. :)

If you don't want to bore the o-ring grooves, you could machine sleeves that sandwhich the o-rings. I've seen more than one spool valve cunstructed in such a manner.

http://www.bruininstruments.ab.ca/PrintablePDF/G1F.pdf

See pg 18 Pilot assembly.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
lozz08
Specialist 2
Specialist 2
Posts: 239
Joined: Wed Jul 01, 2009 7:33 am

Sat Jul 24, 2010 4:03 am

with your ability to machine parts, you could go with a pneumatic ram powering a piston like in a spring airgun. if it is going to be bolt action, it may as well be spring powered
