Barrel Piston Combined

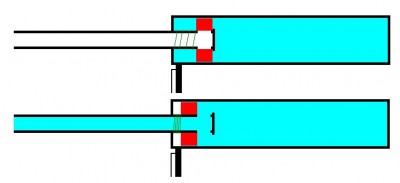

I was looking at designs for piston pneumatics and I don't like the perpindicular set-up. In my design the barrel is actually attached to the piston. The picture might explain more. I am going to add a trigger set up to hold the piston against the blocker and a spring to return the piston to the closed position. I may upgrade this system further if it works to make a bolt with it for auto-loading.
- Attachments
-
- Piston Barrel.JPG (18.67 KiB) Viewed 1675 times
-
Last edited by Atlantis on Tue Dec 20, 2005 8:52 pm, edited 1 time in total.
-
boilingleadbath
- Staff Sergeant 2
- Posts: 1635
- Joined: Sat Mar 12, 2005 10:35 pm
- Location: Pennsylvania, USA

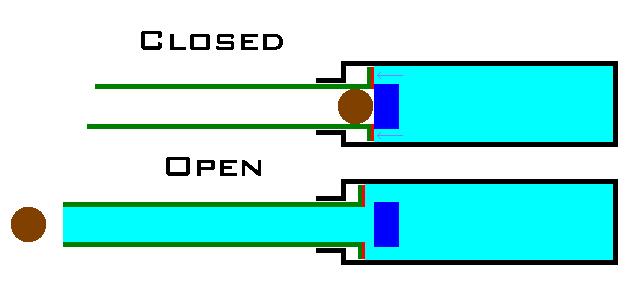

Why not allow the air to equalize into the space in front of the barrel? This would allow it to be opperated with a pilot valve, greatly simplifing construction.
I guess I could do that but, I'm not sure how to tap a blowgun into PVC, plus my friend has a few broken airsoft guns he's letting me take apart for parts. I'm gonna use the trigger to make it feel more like a real gun.This idea would make a really cool PVC paintball sniper rifle.
