Inline Vortex Blocks

noname · Fri Mar 16, 2007 6:02 pm

Doesn't matter a huge amount, just have it be able to fit in 35mm pipe.

Mr.Russ · Fri Mar 16, 2007 6:35 pm

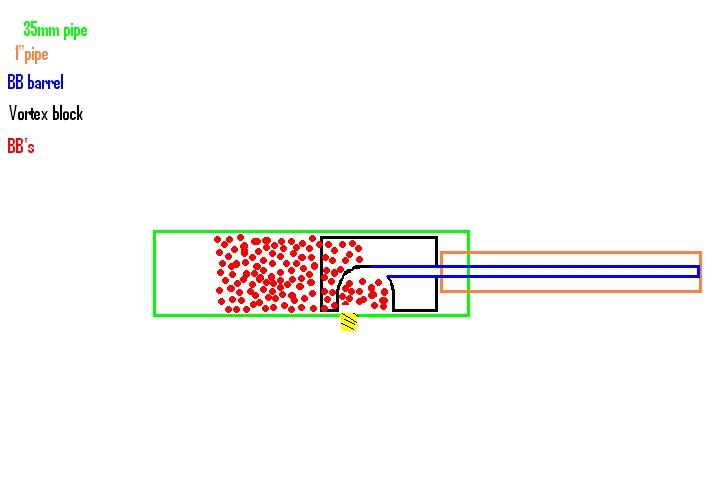

im gonna have a 1" barrel, with my bb barrel inside that... this is kind of a diagram how i think it thould be?

noname · Fri Mar 16, 2007 8:00 pm

That would work fine, although I'd make a couple of small changes:
Put the nipple back farther, right where the curve of the block starts.
Keep the nipple flush or below the inside of the pipe wall.
I edited your diagram with the changes I suggested.

VH_man · Fri Mar 16, 2007 8:04 pm

Wow these actually make sense to me now...... i gotta make one of these!

Mr.Russ · Fri Mar 16, 2007 8:07 pm

yeah, ive only just realised hwo they work, now i feel so stupid because they are sooooo simple! thanks for that touch up noname, you've helped me alot.

subterranean · Fri Mar 16, 2007 8:17 pm

is there really a big difference in an ain-line vortx bolck than the regular full circle. I recently made a regular block is it worth upgrading to the in-line?

Mr.Russ · Fri Mar 16, 2007 8:20 pm

do you mean the full cirlce for vortex hole? if you do, then from what i've heard i would upgrade to the inline one because if you have a whole cirlce, the bbs have to go around more to get out the barrel, using more air. but the inlines only have 3/4 of the hole, meaning less are to cover before they get to the barrel, means more air efficient

Thursto · Sun Mar 18, 2007 5:31 am

Wow thats true, totaly understand how they work now due to Mr.Russ diagram, sweet im gunna make my self one of them in my new gun im planning

Cheers

Mr.Russ · Sun Mar 18, 2007 5:40 am

glad i could help, Thursto.

Mr.Russ · Mon Mar 26, 2007 1:41 am

One more questions, with the air input does it have to be near the end of the vortex hole? On Neospuds ultimate inline (mk1 and mk2 i think) it isnt anywhere near the vortex...

noname · Wed Mar 28, 2007 10:24 pm

You can't tell, I assume it is. The blowgun he uses and the pressure washer trigger don't let air flow in a straight line, they curve up and forward.

Mr.Russ · Thu Mar 29, 2007 1:41 am

ok, well you know exparemtn u-2's marble sniper, i have the exact same trigger as on that, and i need to connect it with an elbow but i dont think it would be long enough(to get past the bit on the top.

I could cut it off but yeah. Anyway my inline is nearly finished i shall make a topic about it when im done.

here is a pic of my blowgun.

Thursto · Mon Apr 02, 2007 3:38 am

Your pic, you copyied that of mine, "Fisrt attempt at bb gun" or something along the lines of that, but yeah its still the same though Lol

Mr.Russ · Mon Apr 02, 2007 6:59 pm

nah it was one of the ones you sent me, i cbf taking a new one

Kenny_McCormic · Sat Apr 28, 2007 8:09 pm

to make that trigger work just use a reg elbow and a 1 or 2 inch nipple to geti it to reach
