Looking for someone to machine me an inline vortex block

A place for general potato gun questions and discussions.
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Thu Jul 28, 2011 9:30 pm

Hey all- Not quite sure where to put this, mods feel free to move.

I'm looking for someone to machine me an aluminum inline vortex block for an unregged CO2 BBMG.

Prefereably someone within CONUS, as I don't want to pay ridiculous shipping. Contact me and I will send you the details- it is not a difficult plan at all, two holes, but I can't machine aluminum.

Thanks all
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Fri Jul 29, 2011 12:07 am

I'm not exactly close but let's see what you need, you never know ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
evilvet
Specialist 2
Specialist 2
Posts: 266
Joined: Sat May 01, 2010 2:48 am

Fri Jul 29, 2011 4:42 am

I am happy to give it a go using the CNC router, it would be made from HDPE or some other workable plastic, would that help ?
Posting 50 grams from Oz should not be prohibitive, at least until Customs tried to work out what it was in the package.........
User avatar
mattyzip77
Sergeant 3
Sergeant 3
Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts

Donating Members

Fri Jul 29, 2011 10:19 am

I dontknow about prices, but this guy has some pretty awesome cannons, check him out!!

http://www.cobracannons.com

Yes, that is exacly who I meant. He has the best cannons, in my opinion, that I have ever seen. They are above and beyond anything I could ever do!! Hats off to him!!!
Last edited by mattyzip77 on Fri Jul 29, 2011 12:24 pm, edited 1 time in total.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Fri Jul 29, 2011 10:27 am

mattyzip77 wrote:I dontknow about prices, but this guy has some pretty awesome cannons, check him out!!

http://www.cobracannons.com
You mean Moonbogg?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jor2daje
Specialist 4
Specialist 4
Posts: 418
Joined: Sun Oct 05, 2008 9:41 pm
Location: Southern California

Fri Jul 29, 2011 11:34 am

If you show me the size and rough plans I'll see if it's doable
Patience is a virtue, get it if you can, seldom in a women, never in a man.
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Fri Jul 29, 2011 8:31 pm

Thanks for all the responses guys- I'll upload the plans tomorrow- sorry I didn't get around to it today.

Rough dimensions are either 3/8" or 1/2" wide, and about 1" tall, and 2" long.

Exact plans with hole locations will get uploaded asap.
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
Posts: 1561
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA

Fri Jul 29, 2011 8:38 pm

Someone posted a 3d model with measurements for a machined aluminum vortex block, I can't seem to find it, but it was the same guy who posted the mini gun
I love lamp
User avatar
jor2daje
Specialist 4
Specialist 4
Posts: 418
Joined: Sun Oct 05, 2008 9:41 pm
Location: Southern California

Fri Jul 29, 2011 10:15 pm

that seems like its within what I can do, Ill tell you for sure once i see the plans.
Patience is a virtue, get it if you can, seldom in a women, never in a man.
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
Posts: 1561
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA

Fri Jul 29, 2011 10:55 pm

I love lamp
User avatar
ramses
Staff Sergeant 2
Staff Sergeant 2
Posts: 1679
Joined: Thu May 29, 2008 6:50 pm

Sat Jul 30, 2011 8:25 am

That's very do-able, but not with the skirt on. The skirt would have to be separate. (and those are not plans; no dimensions are included.)

What were you thinking in terms of tolerances?
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name :D
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Sat Jul 30, 2011 9:11 am

This is an inline vortex block, so its just a rectangular block with a hole in it. Not a Tee vortex block.

Will get the plans up today. Just got my eyes dilated so I can barely see what I'm typing right now.
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Sat Jul 30, 2011 11:40 am

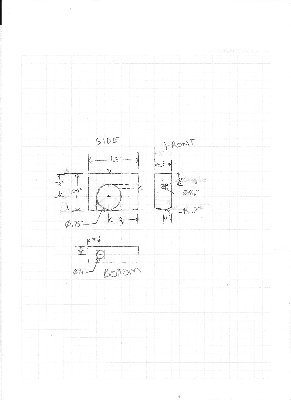

Alright this is the drawing of the block.. let me know if you have any questions.

This is the first draft, do not go out and machine this right away as I may add a bolt hole for locking the vortex block in place, I'm not sure yet though.
Attachments
vortex block plans.jpg
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Sat Jul 30, 2011 12:34 pm

Let me ask one question before you get too committed to this.

Why aluminum? I mean sure, it's cool I guess. But Something like HDPE will be a whole lot easier to work with, a whole lot cheaper, and won't be a huge issue if something gets messed up.

Plastics stores aren't that rare; I can go down to my local one and most likely pick up 10, 1" x 2" x 1/2" blocks of HDPE for maybe $5-6.

I could then turn those 10 blocks into 10 vortex blocks in much less time than the aluminum would've taken, at a fraction of the cost. HDPE blocks will last longer than you think, if that's your concern, and would be easily replaceable (you have 9 more, remember? :wink: ).

Aluminum offers no real benefits except for lasting probably forever, and being able to tell your friends you had a part specially machined and shipped to you for your gun.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Sat Jul 30, 2011 12:59 pm

noname wrote:Aluminum offers no real benefits except for lasting probably forever, and being able to tell your friends you had a part specially machined and shipped to you for your gun.
... and it's SHINEH!!!
