dial indicator for mill alignment

A place for general potato gun questions and discussions.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Tue Sep 06, 2011 9:26 am

One for the accomplished machinists, can I do this on my 8 direction mill with this?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Tue Sep 06, 2011 9:38 am

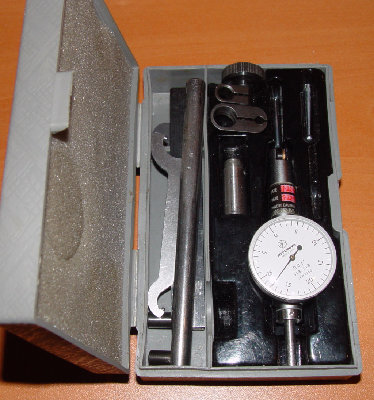

I also would be curious about how to attach this indicator using its dovetails.

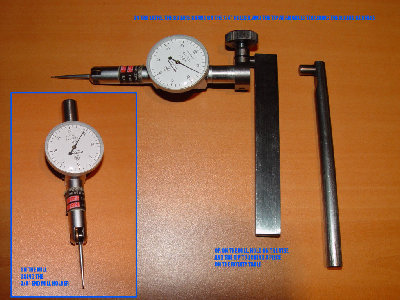

Mine is a different model, but I do have various bars to attach it at angles.
I'm not sure how this one could attach for various purposes without those extension bars.
Attachments
test dial indicator.jpg
I HAZ A BANG!
User avatar
jor2daje
Specialist 4
Specialist 4
Posts: 418
Joined: Sun Oct 05, 2008 9:41 pm
Location: Southern California

Tue Sep 06, 2011 9:42 am

Im by no means an accomplished machinist but that should work quite well for you, the only thing is the travel is quite short just .03 of an inch, however you dont need to use all the travel just to get an idea of which way you need to go.

One thing to look out for is mounting systems, many I see are magnetic which are great for the large cast iron lathes and mill tables, but with sherline lots of it are aluminium so youll probably need something that clamps or screws into the t-slots. And when buying used or cheap dial indicators sometimes the mount will cost as much or more if you dont make it yourself.
Patience is a virtue, get it if you can, seldom in a women, never in a man.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Tue Sep 06, 2011 10:01 am

Hey JSR;

You can not use that! It is not metric! :D
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Tue Sep 06, 2011 11:32 am

This might be to big for your spindle:
http://littlemachineshop.com/products/p ... uctID=1251
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Tue Sep 06, 2011 11:44 am

I use http://www.harborfreight.com/1-inch-tra ... r-623.html and http://www.harborfreight.com/multiposit ... -5645.html with great success.

Edit: I forgot to mention to rotate your machine by hand when checking even a small pull is noticed in the gauge needle...

Once you get a set up and get the feel for using it, it gets easy to do.
Look if you must.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Tue Sep 06, 2011 12:07 pm

Cheers for the quick replies guys, almost everyone I hoped would reply did :D
One thing to look out for is mounting systems, many I see are magnetic which are great for the large cast iron lathes and mill tables, but with sherline lots of it are aluminium so youll probably need something that clamps or screws into the t-slots. And when buying used or cheap dial indicators sometimes the mount will cost as much or more if you dont make it yourself.
Noted, cheers.
You can not use that! It is not metric!
Alignment transcends measurment systems :P ;)
This might be to big for your spindle
Yep, it's just under 1"...


They seem a little on the cheap side, no problems with them?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Tue Sep 06, 2011 12:09 pm

Not at all, they work great.
Look if you must.
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Tue Sep 06, 2011 12:16 pm

Yep, it's just under 1"...
In that case, you could delete the spindle clamp and insert the round rod directly into a collet. IIRC, the rod is about .375" dia. If the rod dia is to large to fit in a collet, you can turn it on your lathe.
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Tue Sep 06, 2011 12:27 pm

I thought the dial indicator as you use jrrdw are more for comparing height or repetitive sizes, and the dial test are for alignment purposes. I guess you can do both, but I would think the dial test indicator is more useful for the purpose of aligning / squaring a mill column, of checking a concentricity in the lathe.

But maybe I'm wrong :D
I'm far from being a specialist using measuring instruments.
I HAZ A BANG!
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Tue Sep 06, 2011 12:34 pm

For height I like to use the depth gauge on one of my vernier calipers, if the part has enough of a base to measure off of. Otherwise...yup.
Look if you must.
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Tue Sep 06, 2011 1:04 pm

Mill Head Tramming
[youtube][/youtube]

Rather than parallels, I use the outer race from a large bearing assembly for a continuous sweep.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Tue Sep 06, 2011 1:14 pm

Cheers for that!

Machinists seem to sound the same, but I find the dull monotone oddly comforting :) sounds like the reliable sort of chap who has cultivated a pipe and you can completely trust with your children.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Tue Sep 06, 2011 2:12 pm

jackssmirkingrevenge wrote: sounds like the reliable sort of chap....
Of course you'd like the guy. He shows epoxy tubes on his bench @3:35!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Tue Sep 06, 2011 2:21 pm

velocity3x wrote:He shows epoxy tubes on his bench @3:35!
I saw!

Made me feel better about myself :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
