paint ball mine

[spudling]

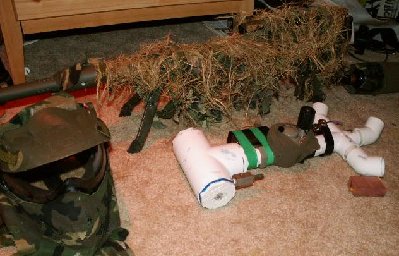

I had some scrap laying around and decided to make a mine it didn't take much thought to come up with a disighn

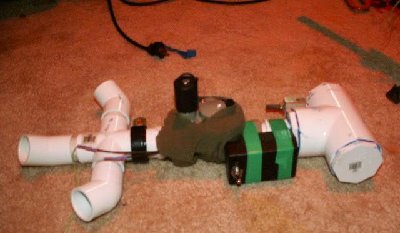

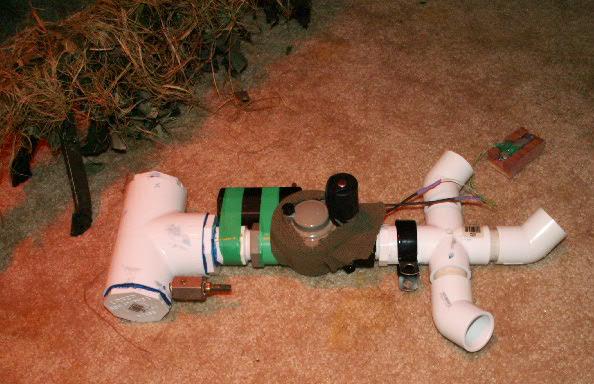

parts
>chamber 2" T
>barrel 1" X & 1" 45 elbow x3

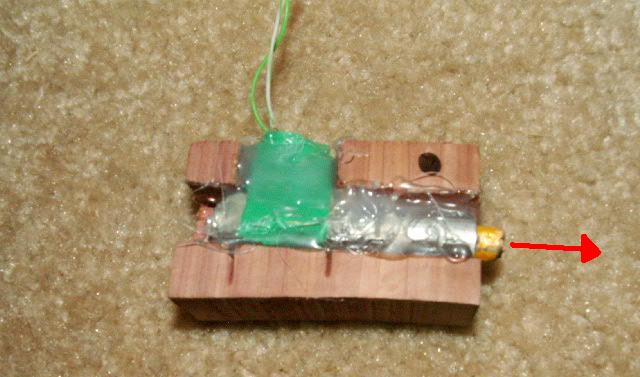

trigger is a micro switch set up so when its triped its off.

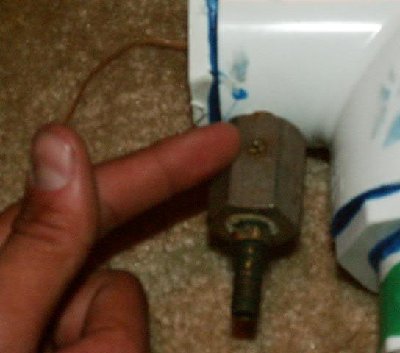

to fire the pin must be pulled slightly the pin its self will be attached to a string.

P.S. its getting a paint job so don't hype about that

[judgment_arms]

Nice, bean kickin’ around the idea of makin’ an off-route mine my self.

Kind of a dumb question, what kind of wood is the trigger housing made of?

[rna_duelers]

do you fill the 1" pipe with paint?Or Paintballs?Is there a sabot behind them if they are paintballs?Perhaps you should cover the barrel with masking tape or something when you use it so you don't get gunk in your barrels.

[Hubb]

Nice. It looks a little big but it looks effective as well. You should provide us with more details (if you want) such as the loading method, the effective range, etc.
