CO2 tank

CO2 tanks are used as pressure sources for pneumatic launchers. There are two principal kinds, paintball tanks and bulk tanks. In addition there are 12g CO2 cartridges, which are only good for one fill of any sizable chamber, and usually not cost effective.

The pressure of ~800 psi needs to be regulated down to a pressure suitable for spudguns, using a pressure regulator between the tank and chamber. Regulators are made to connect directly both to paintball and bulk tanks.

Paintball tanks

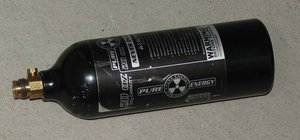

A CO2 paintball tank

Paintball tanks come in sizes from 4 to 20 oz, which is the weight of the CO2 the tank can hold. The tank valve is either a pin valve, which is opened by screwing the tank into the fitting, or an on/off valve which can be opened and closed manually. They have a burst disk safety valve that will break and vent the CO2 if the tank pressure rises above a certain limit.


A paintball tank is usually filled from a bulk tank that has a built-in siphon, which will let out liquid CO2. A paintball fill station is connected to the bulk tank and has the necessary valves and fittings to connect it to the paintball tank.

The tank needs to be cooled down before filling, the the internal pressure of the tank will then be less than that of the bulk tank, and the pressure will transfer liquid CO2 to the paintball tank. The tank should be weighed when filling, and not filled to a greater weight than the tank is made for. If the tank is filled to excess, the pressure can rise rapidly with increased temperature and rupture the burst disk of the tank. A full tank contains about 1/3 of its volume in liquid CO2.


The tank valve has a male ASA thread on the output, a paintball tank adapter connects this to 1/8" NPT which is the standard thread for paintball fittings. There are also female paintball regulators which screw directly onto the ASA thread.


Bulk tanks

A CO2 bulk tank

Bulk tanks come in a variety of sizes, and are sold for use in beer tapping systems, aquariums, welding, as fire extinguishers and more. Empty tanks are either swapped for full ones or refilled for a certain fee.


In the US and Canada, most CO2 bulk tanks have male CGA 320 threads on the output, this thread is used only for CO2. In Europe the thread is designated as W 21.8 x 1/14", and is identical to that of European oxygen tanks, so O2 regulators can be used on CO2 cylinders if necessary.


Bulk tanks can be used as pressure sources directly, or for filling paintball CO2 tanks using a CO2 fill station. For the latter, a tank with a siphon tube is useful since it will siphon liquid CO2 from the bottom of the tank. When filling from a tank without a siphon, it must be turned upside down to allow liquid CO2 through the valve. Conversely, a tank with a siphon must be turned upside down if it is to be used as a pressure source. CO2 fire extinguishers usually have siphon tubes installed.
