Following this discussion, I am building a long range ammo using my Sherline lathe and mill.

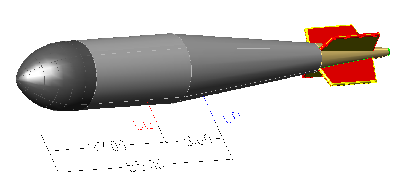

Here's the plan that I am following:


And what's already done :D



If people manifest some interest to learn about how it is done with a machine that can be used on a kitchen table, just let me know and I'll be happy to post detail photographs of the whole process.

[edit] I'm wrinting a howto at the same time here
Last edited by LeMaudit on Sat Apr 09, 2011 7:42 pm, edited 1 time in total.
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Sat Apr 09, 2011 1:42 pm

I you want to, do a 'How To' and member's can work with what tools they got off of your plan/How To. Looking real good so far.
Look if you must.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Sat Apr 09, 2011 3:11 pm

LeMaudit;
Looks great so far!
I started a 3D version of your original drawing as you can see attached.

I did a paper cutout to determine the CP (Center of Pressure).
For stability in flight, the CG should be about 1 caliber (18 mm) ahead of the CP point. This CG must have any payload included.
Attachments
CP and CG from Nose Tip
CP and CG from Nose Tip
User avatar
mark.f
Sergeant Major 3
Sergeant Major 3
Eritrea
Posts: 3570
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 15 times
Been thanked: 10 times
Contact:

Donating Members

Sat Apr 09, 2011 3:28 pm

The fins are interesting. I realize you can do shapes not cylindrical on a lathe (like cubes, etc.), but I'm not seeing how you did the fins. Care to enlighten me?
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Sat Apr 09, 2011 3:45 pm

I you want to, do a 'How To'
That's a good idea :-)
I started a 3D version of your original drawing
Drawing was not mine really, a copy/paste of the technical drawing JSR posted about the real Tall Boy bomb.
That's interesting! I'll provide weight and exact dimensions of the final missile (I didn't try to do absolutely exact dimensions, more respect and overal shape). So far the diameter is 19mm, I might reduce it when I machine the central part. I'm sure MrCrowley will be interested as he'll be the one that fill the nose and body with weight, as the nose is partially hollow. I made it in brass just to be able to withstand the final hit (hopefully)
The fins are interesting. I realize you can do shapes not cylindrical on a lathe
I made them with 2 brass plates that interlock together like the drawing... using the mill :D I know... I cheated... ;-) I will prepare a How To and post there at the same time so people interested can see the machining process, without clutering this thread with a gazillion pictures :lol:

[edit] it's done in this thread
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Sat Apr 09, 2011 6:52 pm

Another piece of the puzzle is done

User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand

Sat Apr 09, 2011 10:05 pm

Me like :) :) :) :)
User avatar
Insomniac
Sergeant 3
Sergeant 3
Posts: 1297
Joined: Mon Dec 18, 2006 3:47 pm
Location: Australia

Sat Apr 09, 2011 10:28 pm

You absolutely MUST give this thing a once-over with a polishing compound... It looks good enough to be a desk ornament or paperweight!

Not to mention the reduction in drag... :lol:
I wonder how much deeper the ocean would be without sponges.
Right now I'm having amnesia and deja vu at the same time. I think I've forgotten this before.

Add me on msn!!! insomniac-55@hotmail.com
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand

Sat Apr 09, 2011 10:29 pm

Would it be worth beveling the edges of the fins to reduce drag?
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Sat Apr 09, 2011 11:48 pm

You definitely want to have a slight radius or chamfer on the fins to reduce any drag.
If you look closely at my 3D drawing you will notice the radius on the fins.
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Sun Apr 10, 2011 6:36 am

If you beveled one side of the fins leeding edge it would give it enough spin to eliminate any cross wind wobble that might devolop if flight. Accuracy means you'll get it back to shoot again...
Look if you must.
User avatar
al-xg
Corporal 2
Corporal 2
Great Britain
Posts: 643
Joined: Fri Jan 19, 2007 12:29 pm

Sun Apr 10, 2011 6:56 am

In that case do the trailing edge on the same side also, make each fin an airofoil, lift induced spin ;)
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Sun Apr 10, 2011 8:20 am

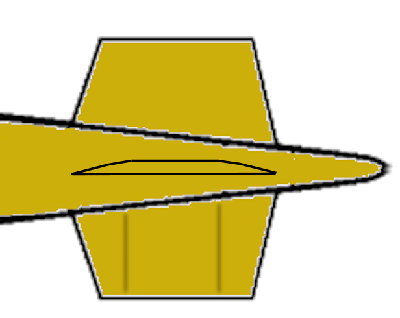

Just to be sure I understand, you suggest to do something like that to induce rotation? No problem :D

Which side? Like the picture or the other side? Maybe it's not important, but I'm not sure...

(to anticipate some sarcastic remark ;-), the thingy is not 100% symetrical, one end flat is larger than the other)
Attachments
User avatar
ilovefire
Corporal
Corporal
Posts: 511
Joined: Sat May 22, 2010 6:48 am

Sun Apr 10, 2011 8:26 am

do it like that at the front but have the bevel on the other side at the back of the fin
why make it if it dosent shoot?
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Sun Apr 10, 2011 8:56 am

Really! :shock:
But it will not spin like that, or is it? I'd like very much to understand :D
Post Reply
