Single shot BBMG
So not really a MG as such but....
I have been trying to come up with a single shot variant, 50 rps is all very well but ammo doesn't grow on trees.
My idea is to have a horizontal spring load mag holding say 20 bb's. This has a push solenoid mounted below it that when triggered will push one round up into the breech block to be fired. The trigger is a simple DPST momentary contact switch that fires both the solenoid and the valve for the air flow. As long as you hold down the button the air flow will run but only a single round can fire as the plunger is blocking the BB feed.To fire again release and press the trigger. Power comes from a 12vdc SLA in the stock.
I have a picture to show this but am too thick to work out how to attach it to the post.
Any comments appreciated
I have been trying to come up with a single shot variant, 50 rps is all very well but ammo doesn't grow on trees.
My idea is to have a horizontal spring load mag holding say 20 bb's. This has a push solenoid mounted below it that when triggered will push one round up into the breech block to be fired. The trigger is a simple DPST momentary contact switch that fires both the solenoid and the valve for the air flow. As long as you hold down the button the air flow will run but only a single round can fire as the plunger is blocking the BB feed.To fire again release and press the trigger. Power comes from a 12vdc SLA in the stock.
I have a picture to show this but am too thick to work out how to attach it to the post.
Any comments appreciated
- jackssmirkingrevenge
- Five Star General
- Posts: 26183
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 547 times
- Been thanked: 326 times
Have you tried adding a restriction (eg o-ring in a threaded fitting) at the breech?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Funny you should say that.. Iv been shooting these little 6mm gumnuts off the tree infront of my house endless supply of ammo!I have been trying to come up with a single shot variant, 50 rps is all very well but ammo doesn't grow on trees.
- Gaderelguitarist
- Corporal
- Posts: 580
- Joined: Sat Aug 16, 2008 9:56 pm
- Location: Columbia, MD
- Contact:
Have you built this, or is this still in the design phase?
so many muchness
HiGaderelguitarist wrote:Have you built this, or is this still in the design phase?
Just the design phase but work has finally stopped interfering with what i want to be doing so I will run some samples through the CNC machine tonight to get a feel for the layout.
I managed to get into Jaycar today and picked up the push solenoid, battery and trigger switch I needed so I will do some MDF mock ups of the lower receiver and work out where the parts will fit.
Hopefully the JPG will explain it a bit more. Sorry for the rubbish image but my CAD program does a bad job of DXF to JPG
- Attachments
-
- lower receiver with internals.jpg (11.57 KiB) Viewed 5199 times
- Gaderelguitarist
- Corporal
- Posts: 580
- Joined: Sat Aug 16, 2008 9:56 pm
- Location: Columbia, MD
- Contact:
Ok, This is similar in concept to using an air ram semi setup, except that you're going electrical. By all accounts, it should work perfectly, provided the parts are machined well. It looks like you're planning on running it on a remote line to a firing chamber in the stock, with the valve being positioned directly after where the solenoid pops the round up.
I look forward to seeing your progress with this.
I look forward to seeing your progress with this.
so many muchness
Hi all
Did the basic electronics build today.
Video is at
The eStop is overkill but I do love big red buttons on gadgets. The LED's were salvaged from a photocopier readout as was the trigger switch.
Everything gets housed in the stock plus the 12v battery to drive it.Hopefully I can get started on the stock tomorrow.
Cheers
Did the basic electronics build today.
Video is at
The eStop is overkill but I do love big red buttons on gadgets. The LED's were salvaged from a photocopier readout as was the trigger switch.
Everything gets housed in the stock plus the 12v battery to drive it.Hopefully I can get started on the stock tomorrow.
Cheers
- jackssmirkingrevenge
- Five Star General
- Posts: 26183
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 547 times
- Been thanked: 326 times
[youtube][/youtube]
Nice, looks like it will work well. Have you thought of including a timer that might give you controlled bursts or an auto fire option at a fixed limited rate?
Nice, looks like it will work well. Have you thought of including a timer that might give you controlled bursts or an auto fire option at a fixed limited rate?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Hi JSR
Thanks for fixing the embedded link.
If you recall my original post on the electric BBMG, some sort of 555 timer circuit was (and is) always lurking in the back of my mind.
What I would like to finish with is a photo transistor at the muzzle that counts rounds and compares it to a selective fire switch on the stock.
Dial and smile.
Some day.......................................
Thanks for fixing the embedded link.
If you recall my original post on the electric BBMG, some sort of 555 timer circuit was (and is) always lurking in the back of my mind.
What I would like to finish with is a photo transistor at the muzzle that counts rounds and compares it to a selective fire switch on the stock.
Dial and smile.
Some day.......................................
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
Damn I missed this thread...
A 3 way valve + air cylinder would be enough...
if you use a hop-up unit + a magazine from an airsoft gun you don't even need an air cylinder
A 3 way valve + air cylinder would be enough...
if you use a hop-up unit + a magazine from an airsoft gun you don't even need an air cylinder
Children are the future
unless we stop them now
unless we stop them now
- Gaderelguitarist
- Corporal
- Posts: 580
- Joined: Sat Aug 16, 2008 9:56 pm
- Location: Columbia, MD
- Contact:
Why not a key start? You could mount it in the bottom of the grip. I mean as long as you're going for the cool factor.The eStop is overkill but I do love big red buttons on gadgets
However you do it, I think it would be great to have a switchable full auto firing mode.
so many muchness
Hi all
Making progress

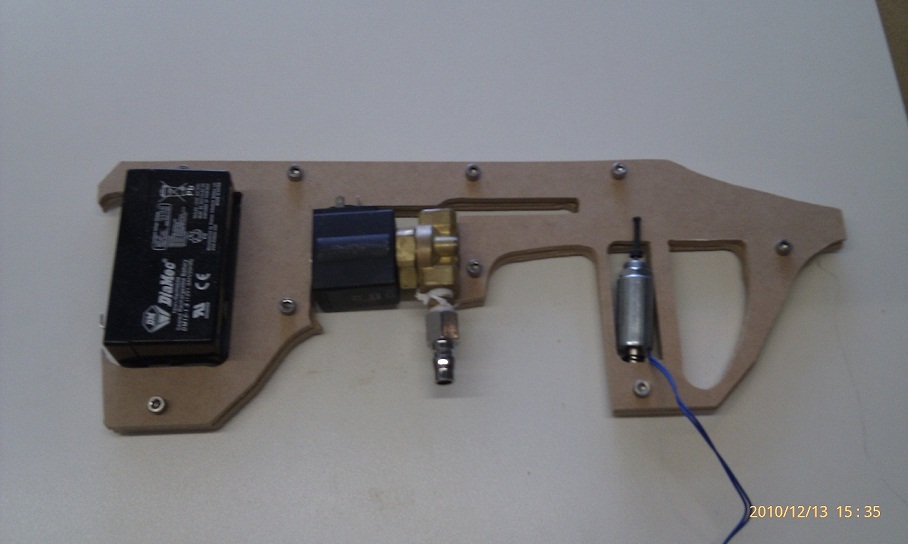

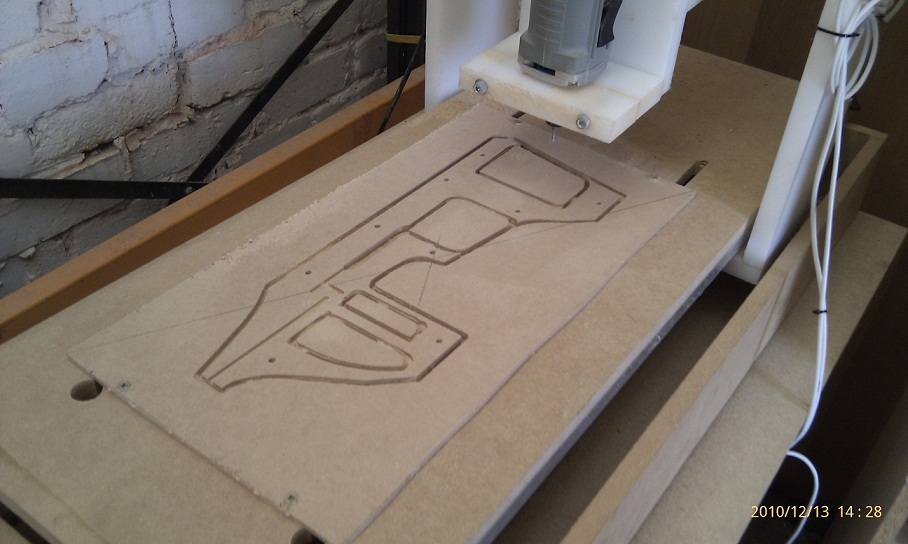

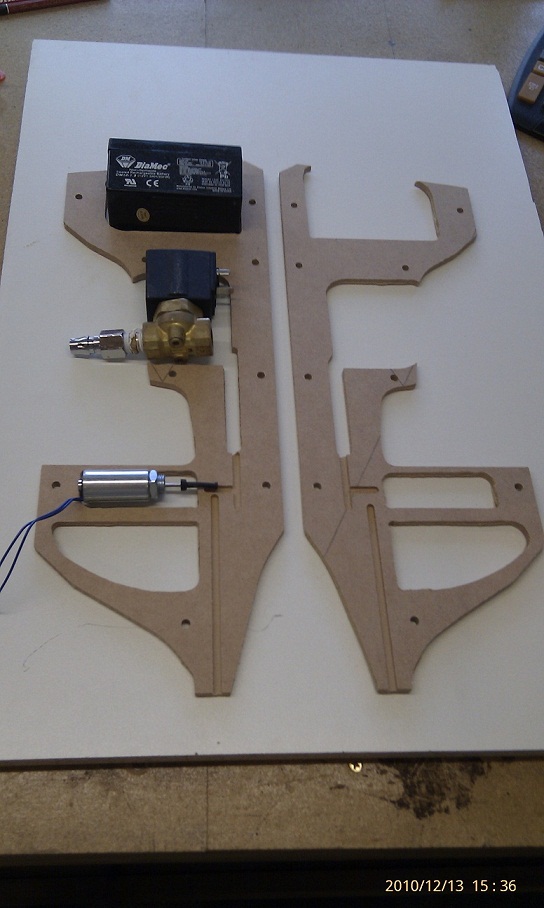

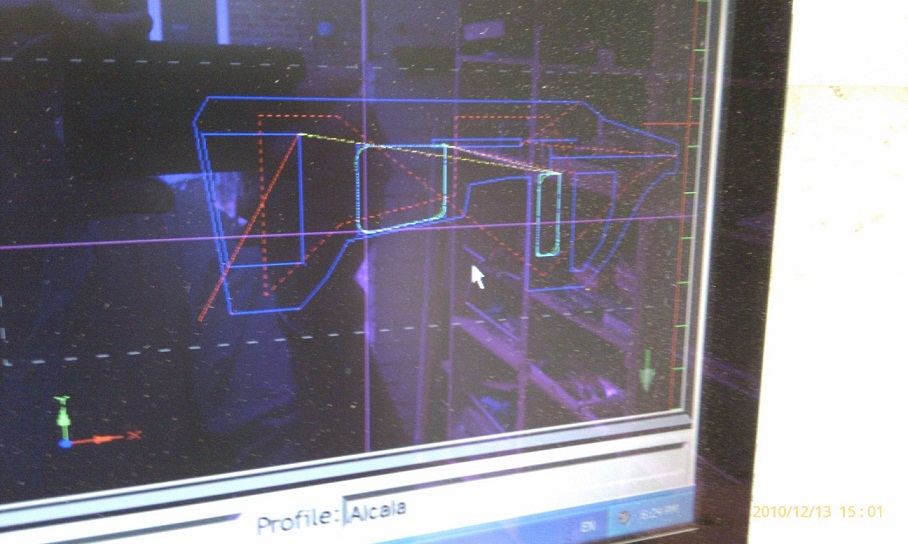

The prototype for the receiver is taking shape, just using MDF for now, the final job will be a series of mm plates of black HDPE. The laminated idea is simply so I dont have to bore and align magazine feeds and barrel housing for the upper receiver; I just make them in mirror halves then bolt it all together. Makes it easier for upgrades and maintenance as well.
The next step is to make two more half shells, this time only pocketed for the equipment rather than cut all the way through.
Cheers
Making progress
The prototype for the receiver is taking shape, just using MDF for now, the final job will be a series of mm plates of black HDPE. The laminated idea is simply so I dont have to bore and align magazine feeds and barrel housing for the upper receiver; I just make them in mirror halves then bolt it all together. Makes it easier for upgrades and maintenance as well.
The next step is to make two more half shells, this time only pocketed for the equipment rather than cut all the way through.
Cheers
Looking cool man, i hope it all works out for you !!
- Gaderelguitarist
- Corporal
- Posts: 580
- Joined: Sat Aug 16, 2008 9:56 pm
- Location: Columbia, MD
- Contact:
Man, I wish I had a CNC Router. This is going to look really slick.
so many muchness
Why not build one, I didGaderelguitarist wrote:Man, I wish I had a CNC Router. This is going to look really slick.
Not being able to get the right parts for the BBMG was the whole rationale for it.
