Mac 11 semi-scale

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Wed Oct 03, 2018 10:48 pm

I'm about to finish this little project of a replica; (almost), an Ingram mac 11, weapon that I love, is basically a fun toy to use.
You could say it is "horribly beautiful" :)
I have not fully tested it, because I had some problems to solve. It is low pressure, (about 60 psi), so as not to deform the 5.5 mm lead spherical ammunition, which is what triggers and which are recovered.
It works in semiautomatic and automatic mode. In automatic mode it expels the 45 ammunition that the magazine has, in 2 seconds, or less, since only the ammunition moves, from the charger to the firing tube being the continuous firing air. The system is like a bottle machine gun. For this reason it spends a lot of air. It is to shoot at close range, so this is not a problem because it shoots connected to the compressor. It is built in thin fiberglass. I have manufactured the silencer, to have that aesthetic view that I like.It has a trigger switch and can fire one at a time.
When I finish it, I'm going to film the test. I leave some pictures of how it looks in the present.
Attachments
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Thu Oct 04, 2018 10:47 am

Here the video of the test :D It works pretty well. regards :)
[youtube][/youtube]
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

Thu Oct 04, 2018 1:22 pm

Hey. Is there a picture or diagram of this machine gun? Scheme of the mechanics.
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Thu Oct 04, 2018 1:54 pm

keks2033 wrote:Hey. Is there a picture or diagram of this machine gun? Scheme of the mechanics.

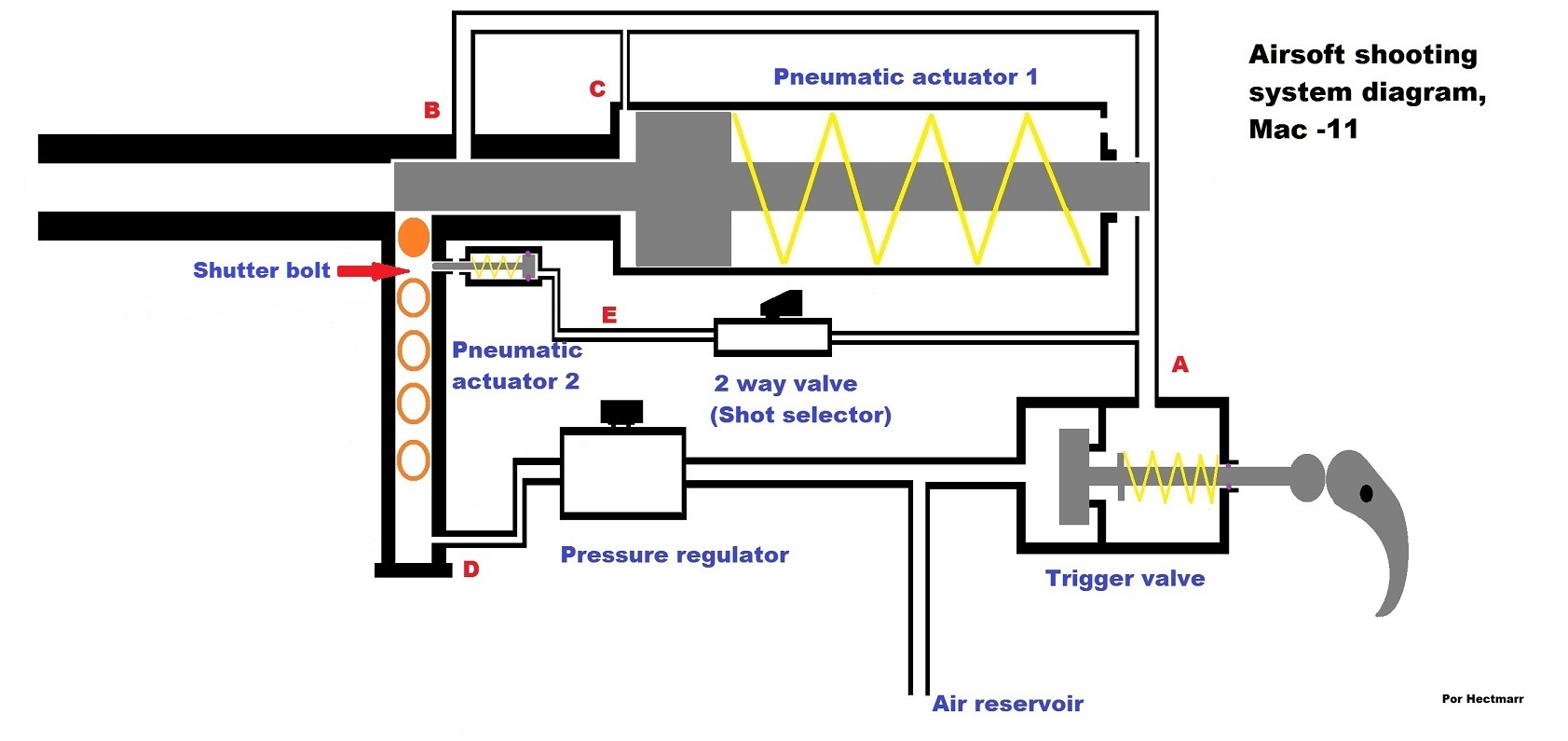

The 2 way valve determines the firing mode, semi-automatic -
automatic.
When the valve is closed, the sealing bolt is in retracted position,
as seen in the diagram. The air does not pass to him by "E". The ammunition can go unimpeded,
from the loader to the firing cannon. The bolt of the firing gun is
permanently open because the air enters continuously through "A", in the direction of "B" and "C", move the pneumatic actuator 1, while holding down the trigger and open the Trigger valve.

When you open the 2 way valve, (semi automatic firing selection), by pressing the trigger,the bolt seals the loader, by the action of the air passing through "E", to the pneumatic actuator 2, and only one ammo passes, (painted orange). Each time the trigger is pressed, The pneumatic actuator 1 also opens simultaneously, but only one ammunition passes.

Ammunition is propelled against the force of gravity,
by an air drain, "D" having regulated pressure, by the pressure regulator, (about 0.5 bar).
This path is independent of the one that drives the trigger valve,
and is continuously under pressure after opening the tank valve
Main air of the motor-compressor.
With this it is enough for the 45 .22 lead balls, to ascend
towards the firing cannon. The charger is tightly closed. :)
Attachments
Sistema disparo, réplica MC - 11.JPG
MAC 11.png
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 319 times

Donating Members

Fri Oct 05, 2018 8:13 am

I've said it once and I'll say it again, HECTOR ERES UN FENOMENO!!!

:D

Fantastic work, especially the selector!
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Fri Oct 05, 2018 8:23 am

Hi Jack! Thanks for the compliment. Coming from you who know everything about these issues, it's double! :)
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1077
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 68 times
Been thanked: 93 times

Fri Oct 05, 2018 5:08 pm

Nice to see the shutter bolt working, I had the same idea a year ago, had the piston and made a block but never did anything with it.
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Fri Oct 05, 2018 5:26 pm

farcticox1 wrote:Nice to see the shutter bolt working, I had the same idea a year ago, had the piston and made a block but never did anything with it.
Oh yeah. It is one way of many possible to make simple weapons, type airsoft, with the two common modes of shooting. I'm thinking of building another replica, but I do not decide which one to make. I like all ! :shock:
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1077
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 68 times
Been thanked: 93 times

Fri Oct 05, 2018 5:54 pm

Like the P90 look
And the MP5
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Fri Oct 05, 2018 6:23 pm

The MP5 is cute ... I was thinking about an AK 47, maybe ... :roll:
Attachments
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1077
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 68 times
Been thanked: 93 times

Fri Oct 05, 2018 7:29 pm

More space in the AK47 for stuff :idea:
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1053
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 262 times
Been thanked: 260 times
Contact:

Fri Oct 05, 2018 8:57 pm

Yes, it makes it much easier to install the mechanical elements when there is more space. Actually I was thinking about installing the other design I have for this type of low power compressed air replicas because you can adjust the frequency of the shots in automatic mode. Is this, remember?
Regulated properly, it should have the same shooting speed of an AK 47. About 10 shots per second. That interests me. 8)
In this system, the one I used in the MAC-11, can not. Shoot madly. The system with trigger frequency control has as a disadvantage that it is more complicated and has more elements.
