tennis ball gun -->CHALLENGE<--

A place for general potato gun questions and discussions.
boukbazooka
Recruit
Recruit
Posts: 2
Joined: Wed Dec 09, 2009 12:56 am

Wed Dec 09, 2009 11:38 am

THIS IS AN OPEN CHALLENGE

I was thinking my dog needs to run more, so I wanted to make a gun to shoot him the ball. so I came to the place that handles these matters, SPUDFILES
After some research I found cheap slingshots, bulky battery powered launchers, and very homemade watch your face guns. I am looking for any ideas that would fit the following criteria. I really liked the winning tennis gun but looked very complicated and expensive for the normal gunner to make.

checklist / criteria
(1) 100-200 ft max , my dog cant run a mile to get the ball
(2) mechanically safe(ok somewhat) for me and my dog
(3) propellant that is safe for my dog to chew on
(4) fully portable, not bulky -- will take to park
(5) material I can get at the local hardware store
(6) easy to load and shoot
(7) and a fair price to make

any ideas welcome , and thank you gunners
User avatar
rcman50166
Corporal 2
Corporal 2
Posts: 697
Joined: Sat Jan 19, 2008 7:11 pm
Location: Bethel, CT
Contact:

Wed Dec 09, 2009 11:58 am

Make TITS!!!

Or a simple ball valve gun, Everyone else here will say to use a sprinkler valve :roll: It would only have to run at 25-30 psi. A ball valve makes it quiet enough to be socially acceptable.

Welcome to Spudfiles :)
User avatar
CS
Moderator
Moderator
Posts: 1837
Joined: Fri Feb 18, 2005 5:32 pm
Location: Southern Utah

Donating Members

Wed Dec 09, 2009 12:24 pm

Pneumatic:

Modifying a sprinkler valve - SpudFiles

Barrel Sizes - Spud Wiki

Then a bike pump can be used to pressurize the chamber.

Combustion:

Nice combustion TB launcher

Tennis ball guns aren't new to this site, SEARCH!
Last edited by CS on Wed Dec 09, 2009 12:35 pm, edited 2 times in total.
User avatar
rcman50166
Corporal 2
Corporal 2
Posts: 697
Joined: Sat Jan 19, 2008 7:11 pm
Location: Bethel, CT
Contact:

Wed Dec 09, 2009 12:29 pm

Experience with my t-shirt gun proves a bike pump to takes forever. Then again the chamber on the t-shirt gun is at least twice the size. I'd use a Portable Kobalt CO2 regulator.
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Wed Dec 09, 2009 1:11 pm

-Tennis ball barrel
-Modded sprinkler valve (ball valve is possible, but since the sprinkler will give more power you can shoot the same distance with less air)
-Small chamber (cut power by volume, not by pressure, so that you are more efficient)
-Onboard bike pump (its a small chamber so it won't take "that" long, besides, this makes sure that you'll also get some exercise, not just your dog)
-Pressure gage

Done.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 11 times
Been thanked: 3 times
Contact:

Donating Members

Wed Dec 09, 2009 1:15 pm

Just buy one from one of our sponsers.
Look if you must.
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Wed Dec 09, 2009 1:25 pm

A small chamber at higher pressure works well and takes little time to fill with a bike pump.

A large chamber takes lots of time to get the pressure up but at lower pressure, the noise is much less at the same range. A large chamber with a longer barrel and large valve can launch tennis balls nearly 500 feet at about 80 PSI.
Attachments

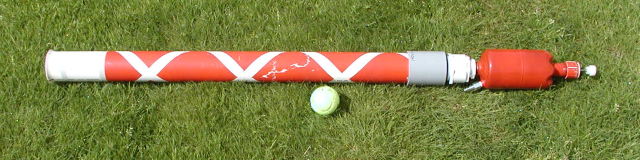

Small chamber and fast valve gives this a couple hundred feet of range.  It's a little noisy with the small barrel at higher pressures.
Small chamber and fast valve gives this a couple hundred feet of range. It's a little noisy with the small barrel at higher pressures.
Tennis ball barrel1.jpg (36.58 KiB) Viewed 2551 times
boukbazooka
Recruit
Recruit
Posts: 2
Joined: Wed Dec 09, 2009 12:56 am

Wed Dec 09, 2009 2:02 pm

YES! thank you
Technician1002

I was looking for something just like this, very simple and efficient. nailed it

Couple comments on that photo.....

-what is the total length of the gun, and if it is large could I collapse the barrel down (thread off), or make it shorter because I dont need it to go a mile (simple right)

- for loading>>i've seen a kinda drop in loading in guns from the barrel- than covered up by a trap door-- is this possible?


and below I found a totally portable cordless battery powered air compressor -- nice gun-like design for actual trigger >>> not sure of quality 39$ )))))))))link:


urlhttp://www.google.com/products/catalog?q=cordl ... ellers/url

-------> any plans for this red gun in the picture??? link???
Attachments
User avatar
jagerbond
Specialist 2
Specialist 2
Posts: 286
Joined: Tue Jul 29, 2008 5:33 am
Location: Hawaii
Contact:

Wed Dec 09, 2009 4:17 pm

[youtube][/youtube]

Consider the $100 ML-420e (in this case ML-425e) I'll set you up with a 2.5" barrel and a .9 to 1 chamber to barrel ratio will keep the noise down. No need to mess with compressors or tanks, just spray 1/2 second static guard.

http://ultimatespudgun.com/fully-assemb ... p-239.html
Mike
Sureshot Inc. / http://www.ultimatespudgun.com
User avatar
Biopyro
Corporal 2
Corporal 2
Posts: 654
Joined: Fri Aug 04, 2006 5:32 am
Location: UK

Wed Dec 09, 2009 5:17 pm

You may be better off with something like this.
It's not quite as awesome but if you actually plan to take it down to the park and use it, it's cheaper, quieter and probably a lot more practical!

Otherwise what you need is something which is easy to refill and fairly portable. You aren't going to really want to hold it like a gun so I'd suggest a mortar like cannon. That way you can keep the pump attached the whole time and fill while the dog chases the ball. When he returns (train him to?) drop the ball down the barrel and repeat. It doesn't even need to be adjustable because wind, position and pressure will all vary where the ball lands.

Be careful not to have the angle too steep though, and the dog may lose it!
Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. -Benjamin Franklin
kotabuuki1
Private
Private
Posts: 7
Joined: Wed Dec 02, 2009 9:30 pm

Wed Dec 09, 2009 6:48 pm

yea, those throwers actually work quite well, they go about 100ft with minimal effort.
User avatar
jook13
Specialist 4
Specialist 4
Posts: 434
Joined: Mon Jan 21, 2008 10:39 pm
Location: Prescott Arizona

Wed Dec 09, 2009 9:19 pm

Here is my vote!
[youtube][/youtube]

Haha, in all seriousness though, I think a spray combustion is kinda out of the question since dog chewing on aresol can = bad. A metered propane setup is a lot easier than you may think. It is a lot more portable than pnuematic unless you wanna invest in a co2 tank and regulator or get a bike pump.
I like to play blackjack. I'm not addicted to gambling, I'm addicted to sitting in a semi-circle.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 94 times

Donating Members

Thu Dec 10, 2009 12:35 am

Biopyro wrote:You may be better off with something like this.
- No More Bending Over To Pick Up The Ball
No chance of surprise rape then :roll: :D you still have to bend over to pick up your best friend's excrement though...
jook13 wrote:Here is my vote!
I like how the dog starts running as soon as the mechanism starts to actuate, eat you heart out Pavlov:)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Thu Dec 10, 2009 5:43 am

you still have to bend over to pick up your best friend's excrement though...
No, you can also pick that up with the "dog ball thrower"
The ball can be made from all kinds of materials...

Besides, I think its any dogs largest wish to run after his own excrement flying through the air. :roll:
