Burst disk made easy.

A place for general potato gun questions and discussions.
User avatar
)DEMON(
Sergeant 4
Sergeant 4
Posts: 1391
Joined: Sun Mar 12, 2006 1:22 pm
Location: Johannesburg South Africa

Tue May 23, 2006 2:29 am

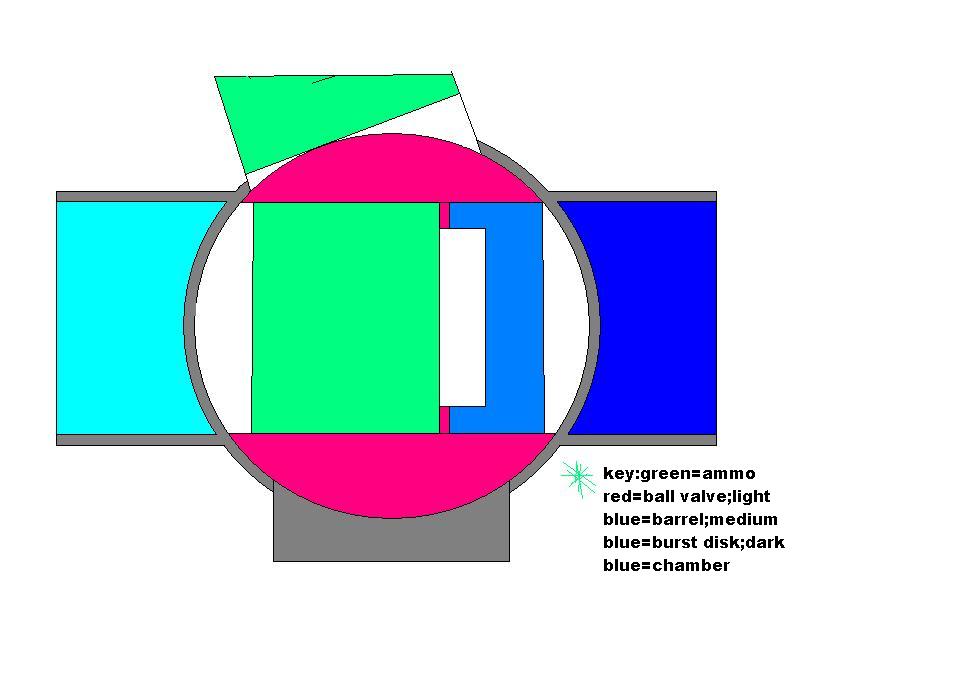

ok heres how it works.
1.the ball valve being in the open position(no chamber pressure)
2.the ball valve must start to be closed,befor it is fully closed the ammo will drop in through the opening in the top of the valve
3.as the valve is closed a burst disk can be inserted through a hole on the bottom of the valve
4.when the valve is opened to the fully open position the chamber can be pressurized (or there can be another valve between the ball valve and the chamber)and when the disk bursts the ammo will be shot down the barrel.
5.on repeating these actions,when step 3 is reached the broken burst disk will fall out of the bottom hole allowing you to replace it.
Attachments
the ammo clip can be perpendicular to the barrel and chamber,so you can make a hole straight through valve.
the ammo clip can be perpendicular to the barrel and chamber,so you can make a hole straight through valve.
Forever dreaming...
Benny
Corporal 4
Corporal 4
Posts: 844
Joined: Wed Apr 19, 2006 8:21 pm
Location: Tasmania, Australia.

Tue May 23, 2006 5:14 am

hey, thats a good idea, using the ammo as the valve.
User avatar
Atlantis
Corporal 5
Corporal 5
Posts: 955
Joined: Sat Sep 03, 2005 10:26 pm
Location: Florida

Tue May 23, 2006 12:03 pm

Basically, the burst disk would be part of the ammo, sounds easy. I posted an idea while back, just use the ammo in the ball valve as a piston, a potato would probably seal well enough, the potato and the air would only leave the barrel once the alve fully opens.
"There isn't a problem in the world that can't be solved by the proper application of explosives"
User avatar
)DEMON(
Sergeant 4
Sergeant 4
Posts: 1391
Joined: Sun Mar 12, 2006 1:22 pm
Location: Johannesburg South Africa

Tue May 23, 2006 12:21 pm

well,this was just an idea for replacing burst disks easily
