I will try marble grapeshot as soon as I can, how did you wad it? I have big trouble getting a good/even pattern with buck shot. The best would be a canister round but I can't make one without a lathe.
Other then that, your valve looks very much like Galfisk's design. Did you look at his drawings? It's a genius and simple piston design.
If I could reach you from Norway I would probably push you towards buying the camera, it's very useful for troubleshooting projectiles and sabots ETC. Other then that they just make damn cool videos.
I probably won't be firing my hybrid to much before I get an American union for it. I really want to bring it up to 20x.
Good job again!
I will try marble grapeshot as soon as I can, how did you wad it? I have big trouble getting a good/even pattern with buck shot. The best would be a canister round but I can't make one without a lathe.
Other then that, your valve looks very much like Galfisk's design. Did you look at his drawings? It's a genius and simple piston design.
If I could reach you from Norway I would probably push you towards buying the camera, it's very useful for troubleshooting projectiles and sabots ETC. Other then that they just make damn cool videos.
I probably won't be firing my hybrid to much before I get an American union for it. I really want to bring it up to 20x.
Good job again!
"Made in France"
- A spud gun insurance.
- A spud gun insurance.
-
SpudBlaster15
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Thu Jul 15, 2021 12:59 am, edited 1 time in total.
-
SpudFarm
- First Sergeant 3
- Posts: 2571
- Joined: Sat Nov 04, 2006 9:39 am
- Location: Norway Trondheim area

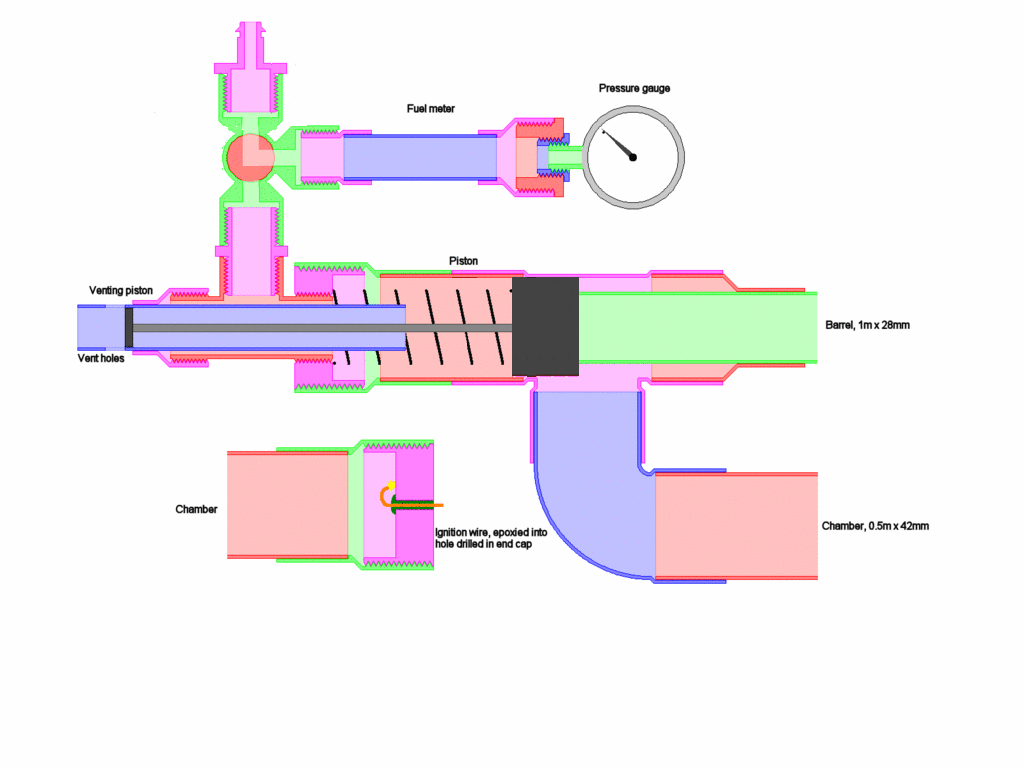

here is the design drawing, I took myself the freedom of uploading it.
