wyz2285 wrote:Nice fridge compressor you got there .one question, how much pressure can a normal fridge compressor produce?
iv taken myn to 700psi
also i got some cool QD, even at 700psi i have no problem opening them. idk what they are called, i got them free from work when we had to replace them for higher flow ones
Attachments
thats the style i have
700psi
Last edited by Crna Legija on Tue Sep 07, 2010 10:10 pm, edited 1 time in total.
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson
ok here are two examples...

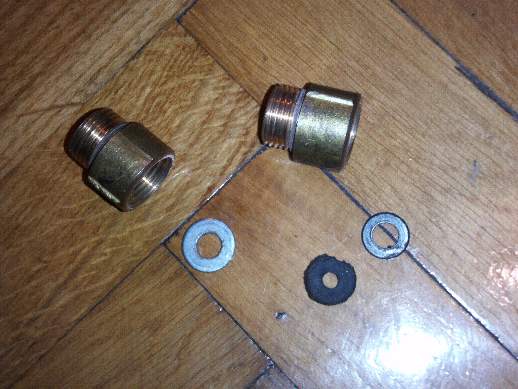

The one already attached to the tube is a part (that brass part) I removed from an old water tap ( it had a seal in it already ). Then there is a 1/2" union, a 1/2" to 1/8" bushing and a 1/8" fitting for 4mm OD tubing
(that I use to connect the compressor to the tank and I also use it to connect spudguns to the tank)
So does tightening the two 1/2" adapters basically squish the rubber washer very tightly against the compressor outlet tube? Since the squished rubber washer is the only contact point on the tube, wouldn't it be very unstable and not aligned properly?
It works surprisingly well.... wait a second I've been using it on something else as well
ohh I found it
[youtube][/youtube]
there it is used as a homemade push to connect fitting... back then I didn't have 1/2" to 1/8" bushings
even if it isn't aligned properly it's not a problem...
EDIT
ohh btw there are more compression fittings in that video... the barrel is held in place inside the T by two rubber washers... also the newest version of the semiauto uses one to keep the barrel in place
.one question, how much pressure can a normal fridge compressor produce?
