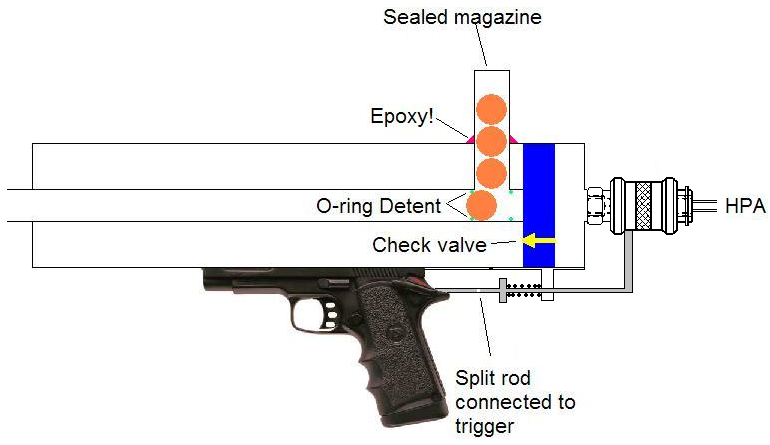

I had a random thought to use a QDV to pilot a coaxial gun and it just kinda ran away from me. It's a little simplified but using paint to make really complicated pieces isn't easy at 3 am. Any thoughts?
to use a QDV to pilot a coaxial gun and it just kinda ran away from me. It's a little simplified but using paint to make really complicated pieces isn't easy at 3 am. Any thoughts?- Attachments
-
- Coaxial custom.JPG (33.86 KiB) Viewed 3308 times
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
It would work as drawn but a slide valve pilot would be easier to put together and much more efficient too as the HPA feed is blocked off during firing.
- Attachments
-
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
LovableAirGuns
- Specialist 2
- Posts: 267
- Joined: Tue Sep 28, 2010 5:58 am
What about a 3 way instead?
And then have a rod that comes from the trigger and pushes the button.
And then have a rod that comes from the trigger and pushes the button.
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
A slide valve in this case is a three way valveLovableAirGuns wrote:And then have a rod that comes from the trigger and pushes the button.
hectmarr wrote:You have to make many weapons, because this field is long and short life
What are you using to block the flow of HPA through the slide valve? Its my understanding that the slide valve is just a pass through which has the ability to vent the pressure inside it to atmosphere. There would be nothing to stop the HPA from flowing out of the slide valve while firing from the HPA source unless a separate cut off valve was used... just trying to understand the drawings, sorry.jackssmirkingrevenge wrote:It would work as drawn but a slide valve pilot would be easier to put together and much more efficient too as the HPA feed is blocked off during firing.
-
Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
The slide valve is a three way valve, it shuts off the HPA when triggered.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
Again:c9d wrote:What are you using to block the flow of HPA through the slide valve? Its my understanding that the slide valve is just a pass through which has the ability to vent the pressure inside it to atmosphere. There would be nothing to stop the HPA from flowing out of the slide valve while firing from the HPA source unless a separate cut off valve was used... just trying to understand the drawings, sorry.
When the valve is in the forward position, it allows air to flow from the main supply to the QEV and fill the pilot and firing chamber.
When the valve is in the rear position, two things happen:
- main supply is cut off
- QEV pilot chamber is open to the atmosphere, emptying it and firing the launcher
The valve goes back to the forward position (you need to add a spring or do it manually) and the cycle can be repeated.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
@jsr
you see what my life is like ?!Again
- Attachments
-
Children are the future
unless we stop them now
unless we stop them now
-
Mr.Tallahassee
- Specialist 3
- Posts: 364
- Joined: Sun Jul 10, 2011 2:35 am
I think I'll try to build that slide valve. I figured with a restriction on the flow it would slow it down enough for the QDV piston to close. I never was one for finding the most efficient way to do things. I'll give it a go though.
I'll give it a go though.-
Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
Just buy one, only 7 dollars on eBay.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
Fear not, I have similar experiences with a host of other topics, I have an 88% full PM inbox (even though I empty it regularly!) to prove itPOLAND_SPUD wrote:you see what my life is like ?!
Americans... pffft!Mr.Tallahassee wrote:I never was one for finding the most efficient way to do things.
hectmarr wrote:You have to make many weapons, because this field is long and short life
