1'' Piston Hybrid {WIP}

Harness the power of precision mixtures of pressurized flammable vapor. Safety first! These are advanced potato guns - not for the beginner.
Post Reply
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Sat Apr 07, 2012 3:16 am

This is just a update since posting this, its getting there just need a few more fitting and a good pressure gauge for the meter, for the time being ill use a camera flash dumped in a car ignition coil for ignition but would like something a bit smaller later on.
Attachments
that's the new piston hopefully it will take the pressure.
that's the new piston hopefully it will take the pressure.

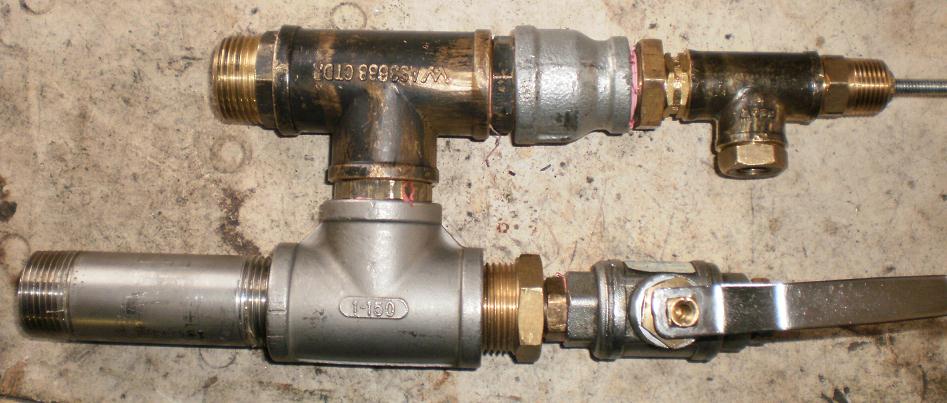

thats the hole thing, i have a few more lengths of pipe for the chamber it will add up to about 650ml.
thats the hole thing, i have a few more lengths of pipe for the chamber it will add up to about 650ml.
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Sat Apr 07, 2012 4:07 am

Looking good, may I see your ignition set up?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Sat Apr 07, 2012 4:28 am

wyz2285 wrote:Looking good, may I see your ignition set up?
Its far from done but just a car ignition coil and im dumping a camera flash though it, makes big sparks iv got 5cm in open air my spark plug is just that i found some plugs that are very close fit to 1/8 npt bit lose but im sure they be fine. if you want some they are CE10EK
Attachments
not set up at all yet but thats what ill be using
not set up at all yet but thats what ill be using
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Thu Apr 19, 2012 2:48 am

Update: just about finished, bought this pressure gauge, just wating for it to come then i can start tuning it.
I'm also looking for a smaller coil to replace the car one it massive.

edit: not that gauge this one
http://www.ebay.com.au/itm/251041238561 ... 500wt_1287
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Wed Apr 25, 2012 1:10 am

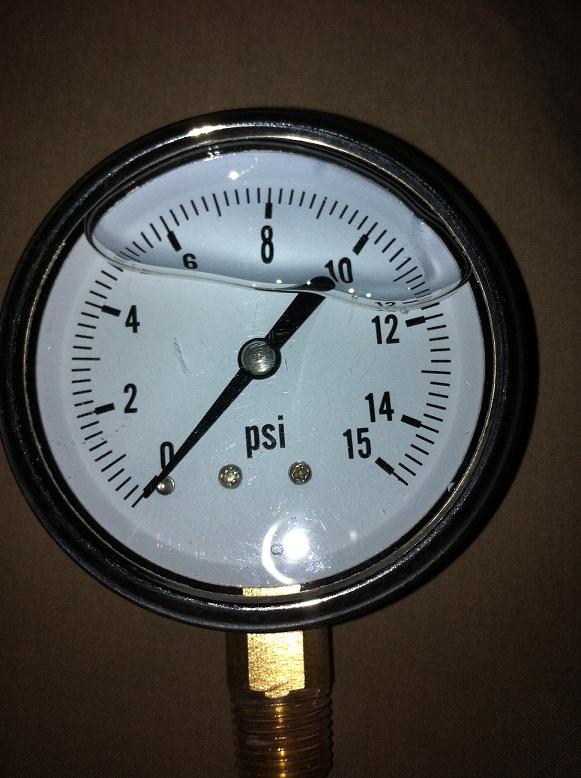

My gauge came in I need to get a propane tank and then I can test it.
Attachments
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
Top
