TB gun design

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
FishBoy
Corporal
Corporal
Posts: 575
Joined: Tue May 27, 2008 5:51 am

Sorry, my last post should've gone with this one.

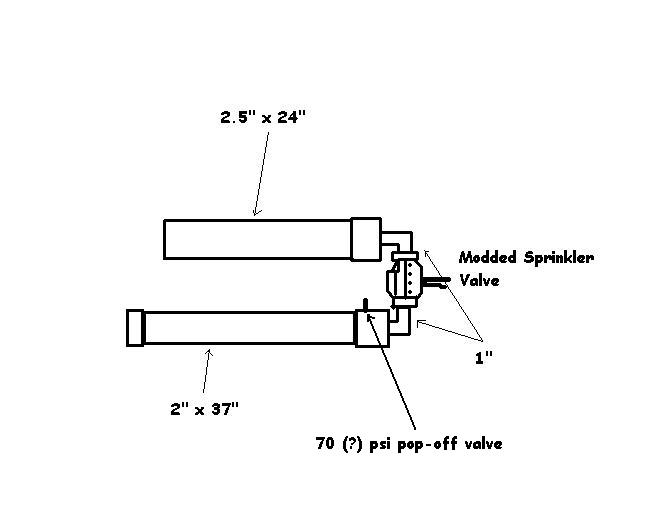

Anyway, this is a design for a tennis ball launcher that i will be making as a Christmas present for my younger cousins. The only thing that will be changed is that the chamber and barrel will be shorter (barrel will probably be closer to 1') than pictured, since it will have to be pressurized via bike pump. Valve is 1" modded sprinkler valve.
Attachments
TB Gun.JPG
TB Gun.JPG (19.36 KiB) Viewed 783 times
"You polish a turd, it's still a turd"

Remember DYI!!!
Top
User avatar
starman
Sergeant Major
Sergeant Major
United States of America
Posts: 3027
Joined: Wed Dec 12, 2007 12:45 am
Location: Simpsonville, SC

A fairly large chamber to be filling with a bike pump. Also I would move the top 90 angle to the chamber side of the valve and connect the valve directly straight to the barrel.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Make it a in-line, better flow???
