idea for 3/4" QEv Sawed-off

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

That would be Sawed-off Mark III for me, or the Ultimate Sawed-off perhaps..

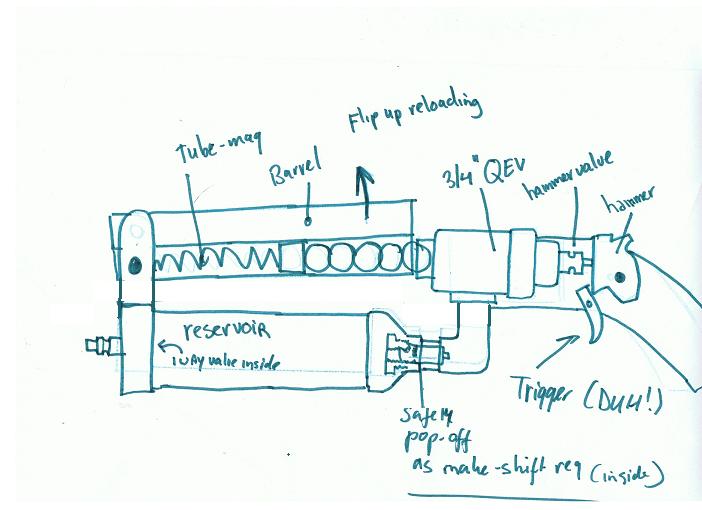

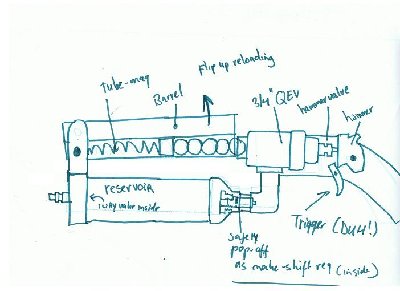

A quick sketch up
Attachments
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

I like it quick quetion however- how do you plan on reloading the mag?

I presume a threaded cap on the end or something similar.

Also how were you planning to seal it?

Looks good, good luck
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

I can reload it by breaking open the barrel completely.

Simple huh?

I plan to seal it by sliding a pipe over the barrel and the qev port.
Wich I need to lathe down to fit the sliding pipe.

I plan to either fill the reservoir with a fridge pump to whatever pressure I can get, or replace the entire reservoir by a CO2 bottle and " reg" it with the internal pop-off safety valve.This should give me a lower working pressure.
Just low enough so the hammer valve doesn't lock up.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Yes i Like it alot..

How big of a spring do you think you'll need to cock that hammer and have it successfully fire?
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

The same one I used on B2TB..It's about 1/2" diameter and 2" long.

The hammer doesn't need much force, just mass and speed.
The moment the hammer hits the valve, the spring is no longer pushing.

If it were, the valve would not close back up.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

oh true. I see now how mass would matter more than speed,

Best of luck building this gun!!! I can't wait to see the results
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Gotta get the money first...so it will be a wait.
Got some more brainstorming to do about a hammervalve and piston roled into one in the mean time.

\with the valve piloting on the barrel side, through the piston..

It will take a lathe, 3 O-rings and it will start a new wave on SF if I get it right...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

interesting... good luck
Top
User avatar
inonickname
First Sergeant 4
First Sergeant 4
Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am

Brilliant! I'm unsure about that magazine, but if you have a lathe to do the sliding collar on it will be fine. Good idea on the inbuilt "reg", it should work great.

Lets see it happen (soon enough hopefully)
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

It will take a lathe
I'd be happy to machine something for you. But you probably already knew that.

The magazine idea is really good! It reminds me on your "falling block" design, but now with a better possibility to seal.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
Lentamentalisk
Sergeant 3
Sergeant 3
Posts: 1202
Joined: Tue Aug 07, 2007 5:27 pm
Location: Berkeley C.A.

Ok, there is obviously something I am not getting about the whole reloading mech. Could you explain it to me please?
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Top
User avatar
starman
Sergeant Major
Sergeant Major
United States of America
Posts: 3027
Joined: Wed Dec 12, 2007 12:45 am
Location: Simpsonville, SC

Lentamentalisk wrote:Ok, there is obviously something I am not getting about the whole reloading mech. Could you explain it to me please?
I have to agree. The barrel is going to have to solidly reconnect to the breach for each shot. How is this better than a more standard magazine/bolt type loader?
Top
