Hypocycloid Reducer (with picts and video)

[Larda]

I spent some time this weekend machining parts for a small project.

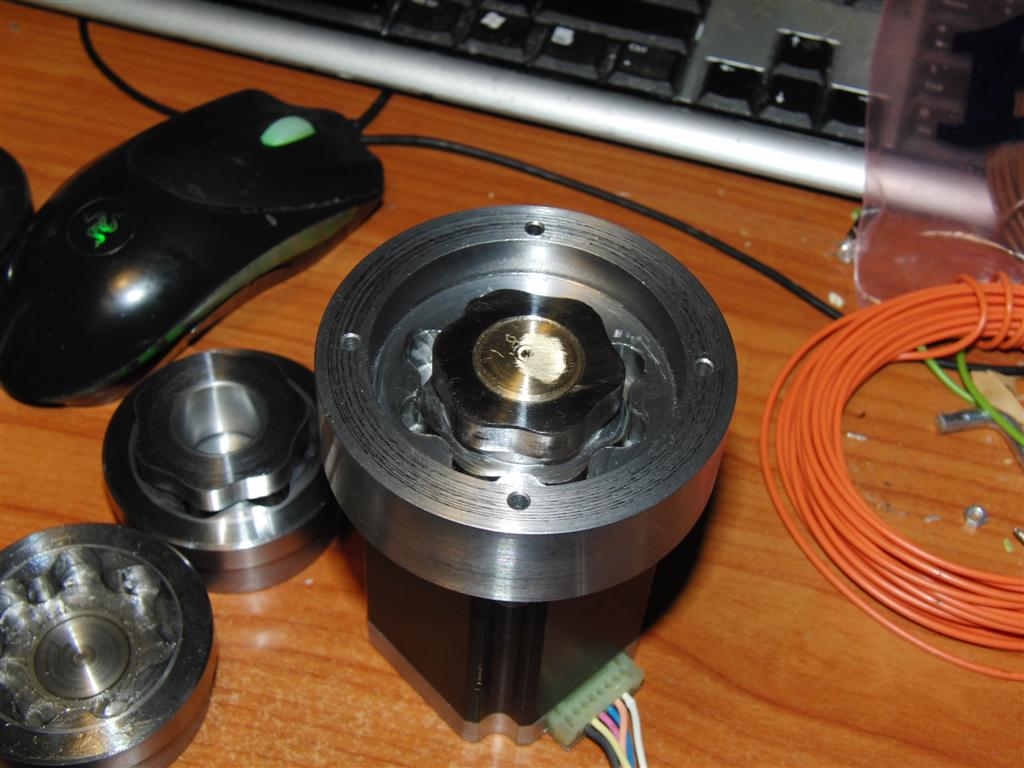

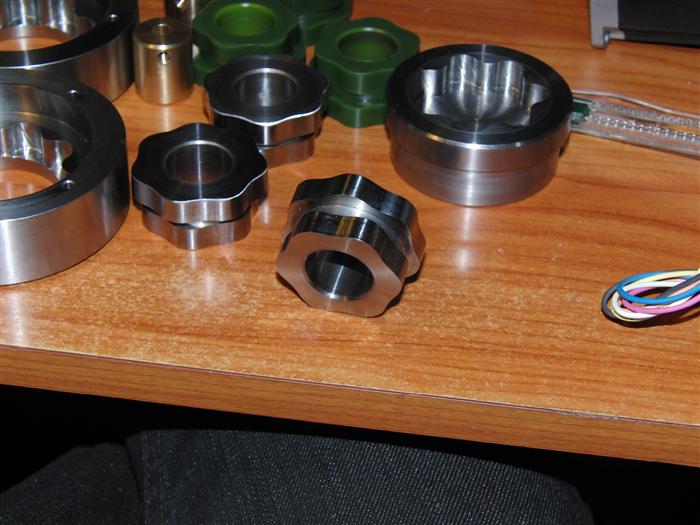

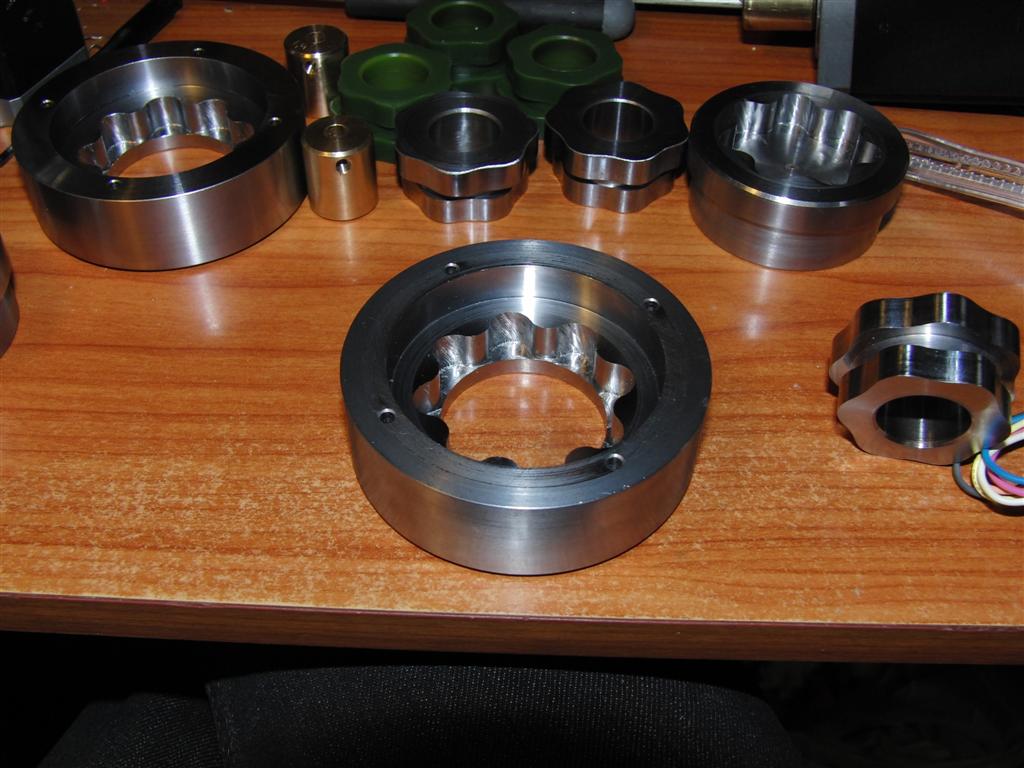

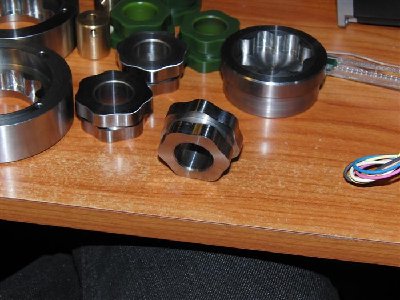

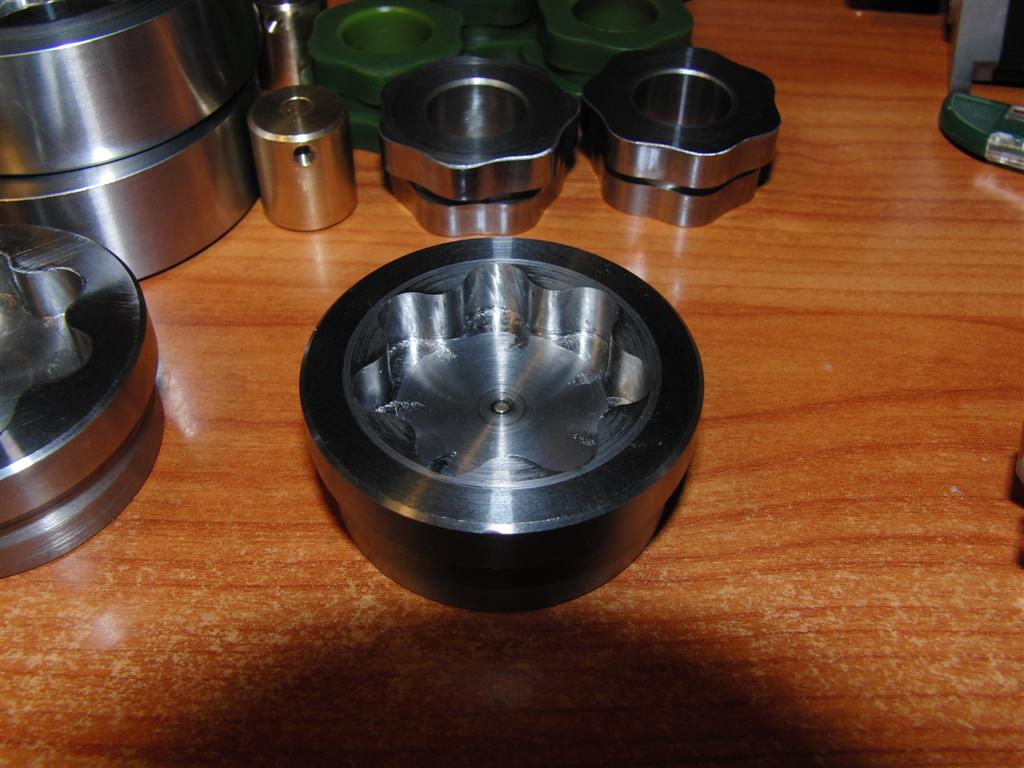

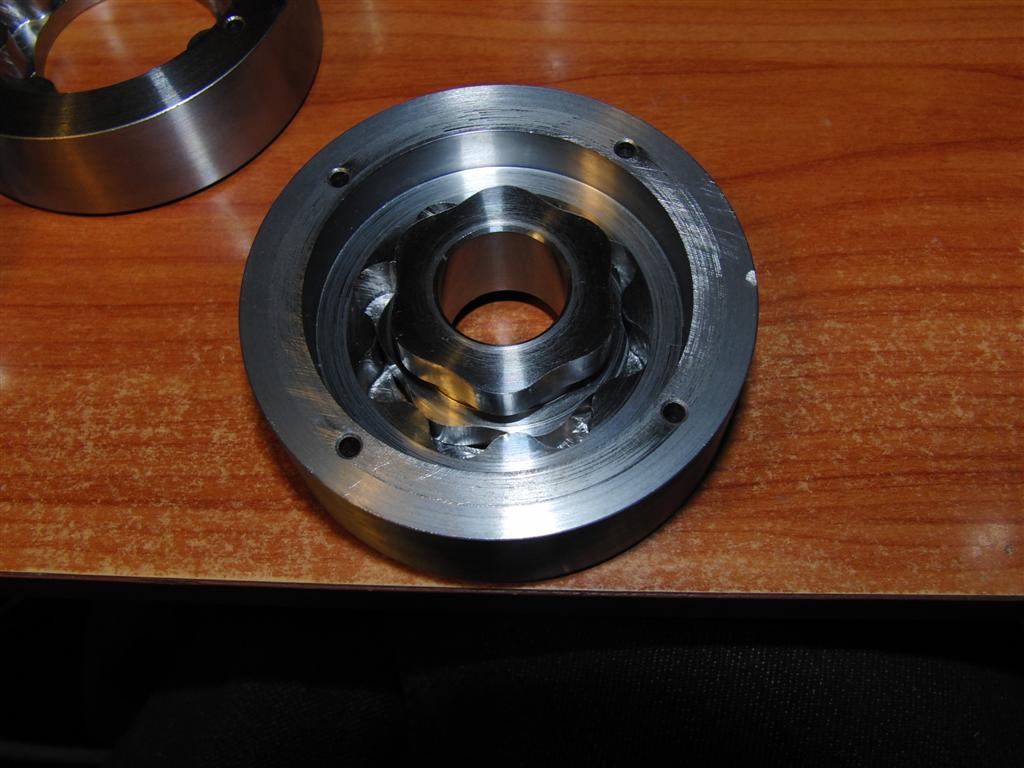

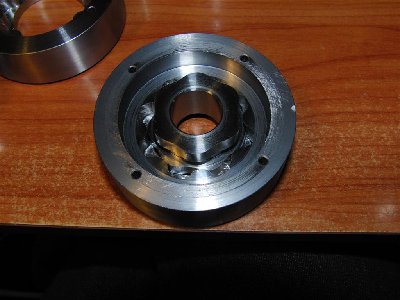

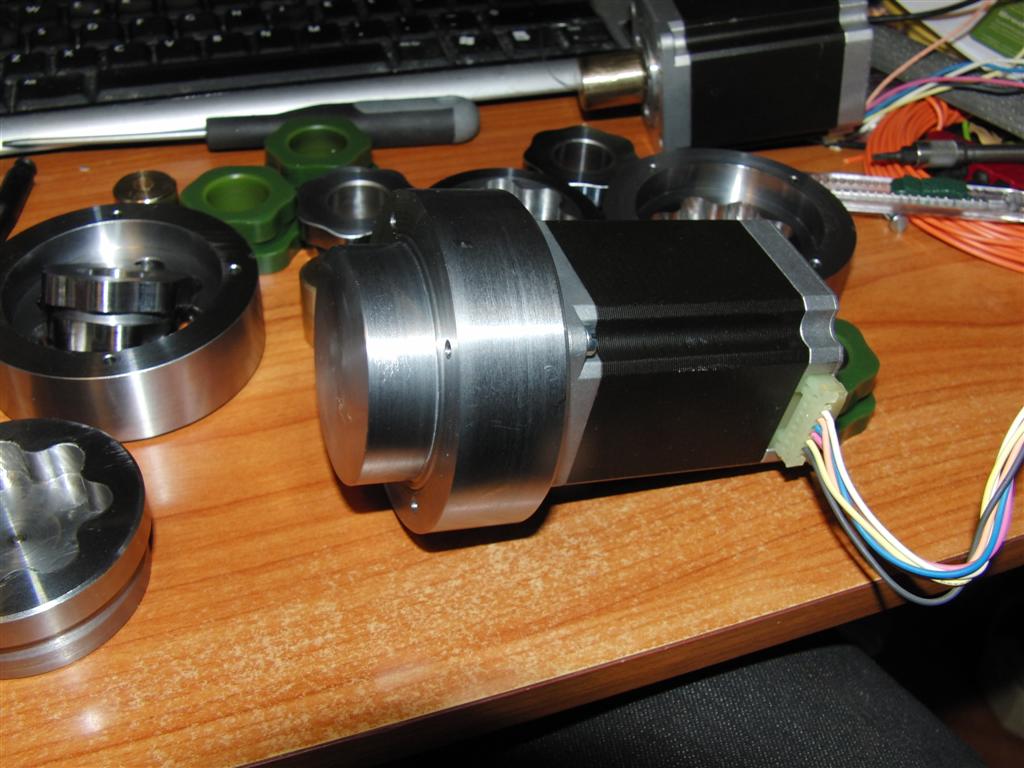

Its a two-stage Hypocycloid gearbox with a ratio of 49:1 its machined out of steel and mounts directly on a Nema-23 stepper.

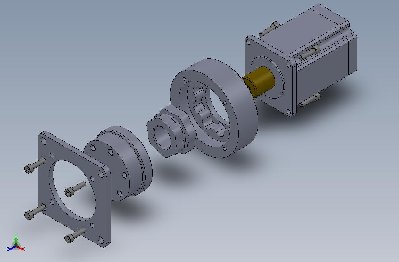

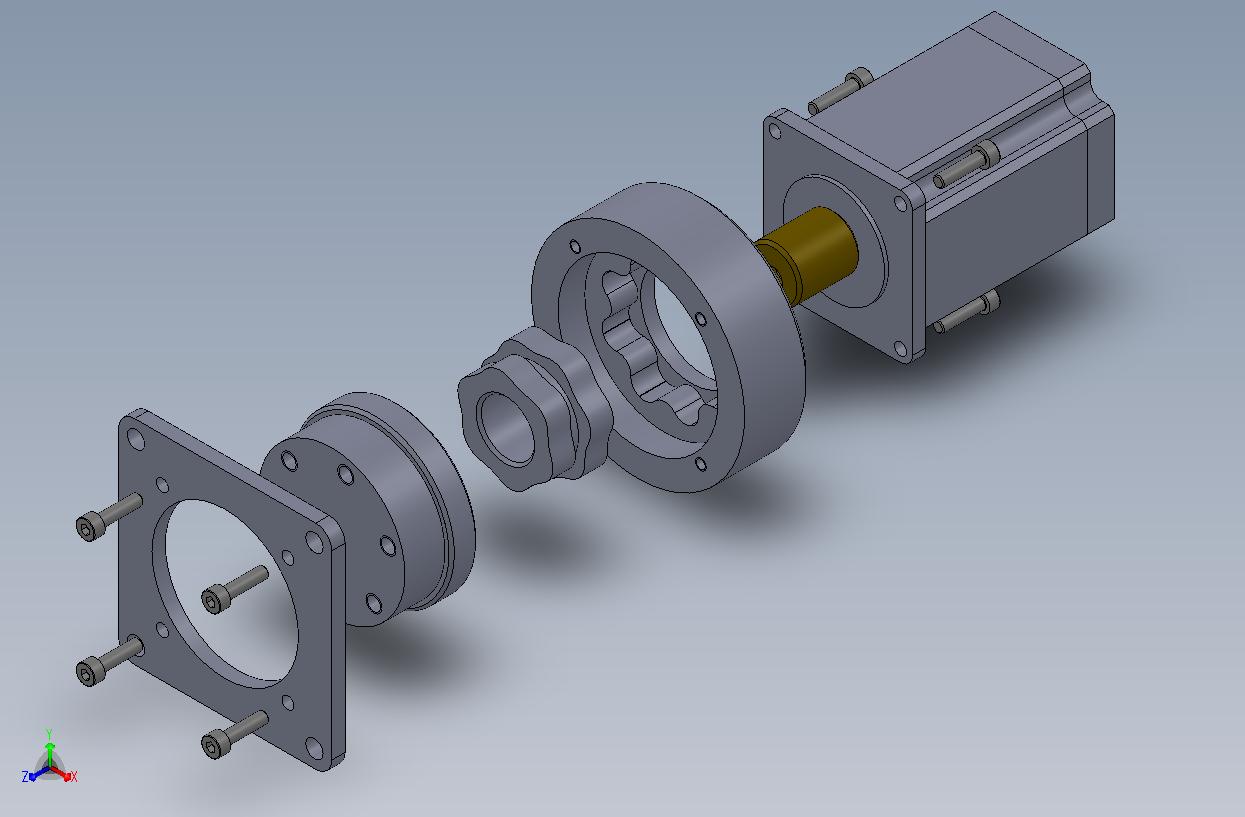

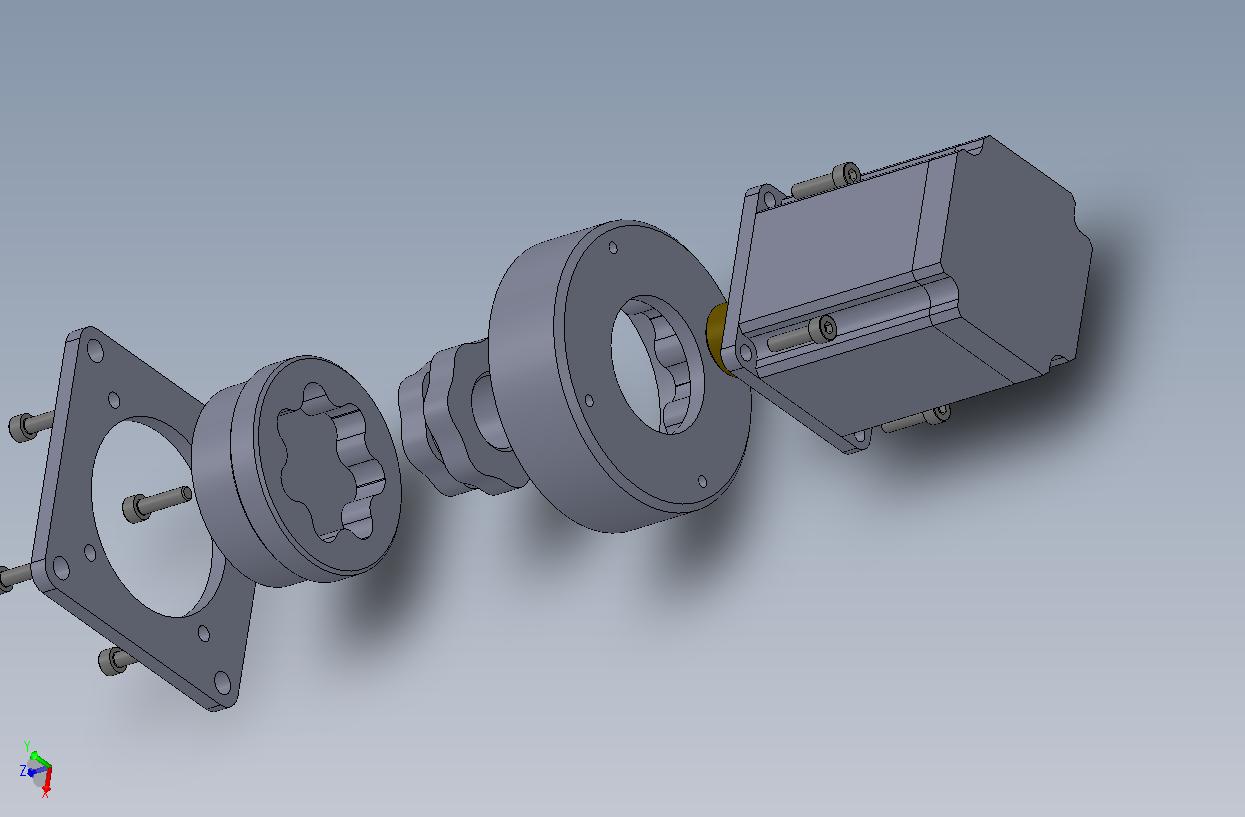

If you are interested here is a e-drawing of the gearbox, http://hv4all.com/vaxel/Vaxel.EASM
It requires a e-drawings viewer that you can download here: http://www.edrawingsviewer.com/
[youtube][/youtube]

[Moonbogg]

Whats it going to be driving?

[Larda]

Possibly a computer controlled turret if i get the time.

[Hotwired]

What a cute little gearbox

Something different from gears or even planetary gears which is what I'd have thought of if I had to guess what was in there.

It does however look very solid. You're not planning on having a hybrid attached to this turret are you?

[Larda]

At Least not my current hybrid, have to build one with much higher ROF first.
