Help with trigger

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
jor2daje
Specialist 4
Specialist 4
Posts: 418
Joined: Sun Oct 05, 2008 9:41 pm
Location: Southern California

My mead 3-way valves finally came today so I threw together a quick test so I could try out if my mechanism would work. The filling and firing valve works brilliantly.here is my original plan for these valves, the only real problem is the orientation of the ports and trigger and the lever for the 3way valve requires vertical force while the bolt needs horizontal.

The solution I came up with is to use flexible copper pipe and steel cable like bike brake cables to change the directions of force. If any one knows why this wont work or could think of a better way input would be appreciated.
Attachments

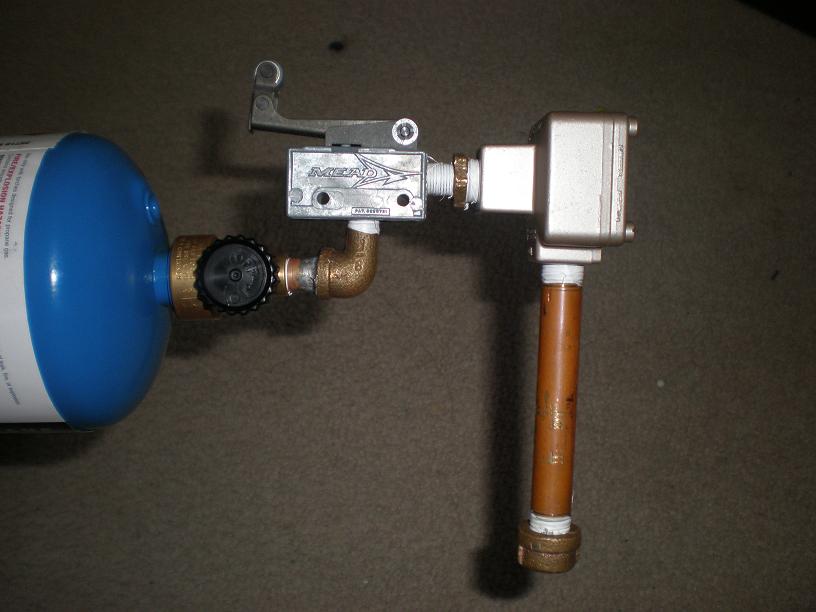

close up<br /><br />I can easily change the firing chamber to get better performance if I feel its necessary
close up

I can easily change the firing chamber to get better performance if I feel its necessary

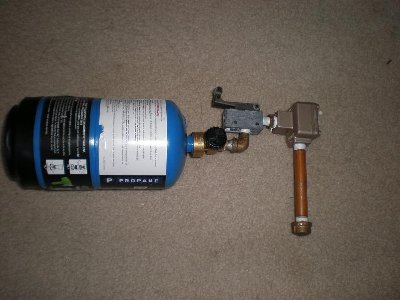

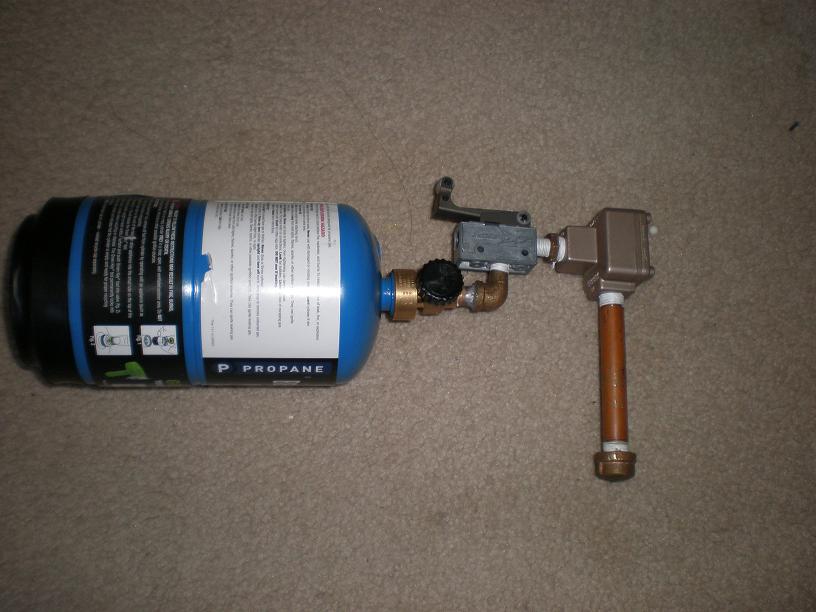

the testing set up, no barrel right now but I was just testing filling and firing.
the testing set up, no barrel right now but I was just testing filling and firing.
Patience is a virtue, get it if you can, seldom in a women, never in a man.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Why not use a real bike handbreak..you could fit it on the reservoir
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

steel cable would probably work...
it's funny but today when I was smoking outside I looked at brakes on my bike... and my first thought was 'man... that would make an awesome trigger'
:shock:

there is a simpler solution... get rid of that elbow between the tank and the 3 way valve and put one between the barrel and the QEV...
Children are the future

unless we stop them now
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Or put the elbow between the 3way valve and the QEV.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
