I thought a separate thread was more appropriate than cluttering others.
Eventually this thread will contain a drawing for each component.
Right now it is a means to clarify and verify dimensions.
Hopefully Tech can help me finalize.
If any other replies, please do not include picture! It becomes to cluttered and repetitious.
Click to enlarge.

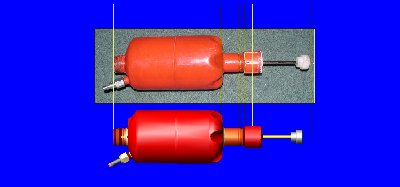

1 inch QDV Drawings
-
Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
Absolutely gorgeous. That is an awesome job. It looks like the dimensions are spot on.
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
Fantastic rendering! You just keep getting better at this, brilliant
hectmarr wrote:You have to make many weapons, because this field is long and short life

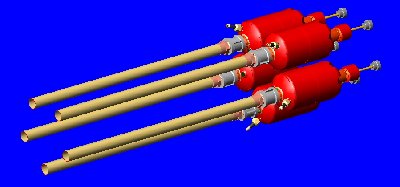

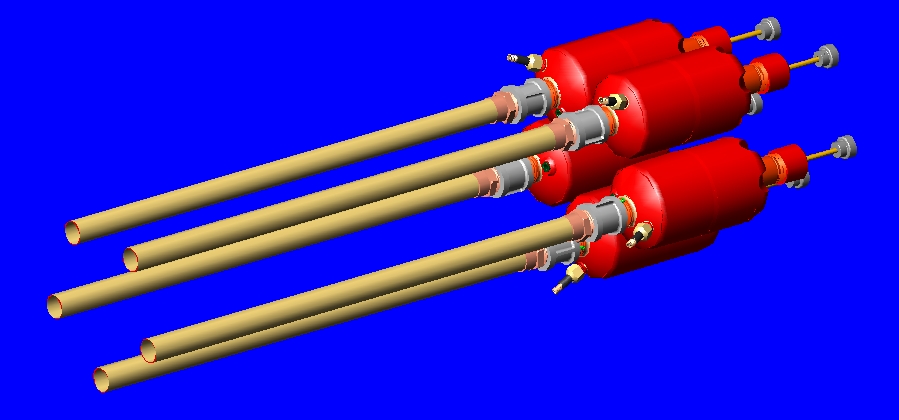

Thansks JSR! Here is the mini-gun concept.jackssmirkingrevenge wrote:Fantastic rendering! You just keep getting better at this, brilliant
- Attachments
-
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
YES!
That's what I'm taking about! Any takers, Tech? Imagine ripple firing t-shirts into the crowd
That's what I'm taking about! Any takers, Tech? Imagine ripple firing t-shirts into the crowd
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
I probably won't build it. Too many other projects on the drawing board. Finishing the 2.5 inch QDV is first, then the 1/2 inch copper QDV, then the springer piston and barrel for possible supersonic golfballs.jackssmirkingrevenge wrote:YES!
That's what I'm taking about! Any takers, Tech? Imagine ripple firing t-shirts into the crowd
-
Just1ChanceFree
- Private
- Posts: 9
- Joined: Wed Aug 01, 2007 5:12 pm
The QDV design I'm working on currently extends the chamber along the full length of the barrel. Not much of a modification, but it would make the total outer diameter about 1.5". You could potentially craft something that at least appears to function similar to the Australian metalstorm weapon system.
-
Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
My Mouse Musket had a chamber the full length of the barrel, but it was not a QDV. It was a traditional barrel sealer piston with the piston in the breech. A QDV can be made with the valve at the breech of the chamber. My ABS Cellular Core Test Cannon is of that configuration, but the chamber doesn't contain the entire length of the barrel. It's much easer to grip a 2 inch barrel in one hand than a 4 inch chamber.Just1ChanceFree wrote:The QDV design I'm working on currently extends the chamber along the full length of the barrel. Not much of a modification, but it would make the total outer diameter about 1.5". You could potentially craft something that at least appears to function similar to the Australian metalstorm weapon system.
