easy way to semi auto

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:

Hi every body
I noticed that a lot of new members wants semi auto, and I saw a lot of explanations about slid valves and 3 ways. As I wasn´t able to find these parts, I decided to find a way of make a semi auto from a mechanic way instead of pneumatic way. So I had this idea, as most people here uses qevs that are piloted by a blowgun, by connecting the blowgun trigger with a ball valve for re charging the secondary chamber( when you pull the blowgun trigger, the ball valve closes, when releases the trigger, the ball valve opens with a spring) as the ball valve doesn´t need to be fully open to recharge the secondary chamber quickly
this system should work with blowgun piloted self close qev/piston valve or bb guns what uses a blowgun as firing valve

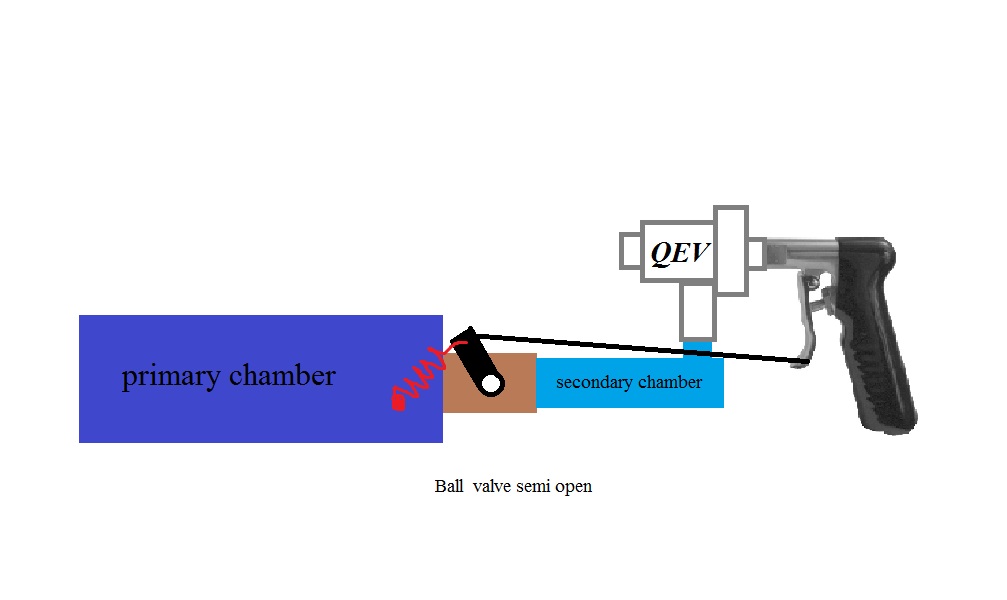

If I wasn´t clear enough here is a diagram, feel free to ask questions :)
Attachments
Sem Título.jpg
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
FighterAce
Specialist 2
Specialist 2
Croatia
Posts: 295
Joined: Fri Oct 23, 2009 1:28 pm
Location: Croatia/Zagreb
Has thanked: 1 time
Been thanked: 4 times
Contact:

Thats gonna be one hell of a trigger pull... at least it would be with the stiff ball valves I got around :lol:
“The combined synergy of a man and rifle is matchless.
The steadiness of hand, the acuity of vision and finally
the art of knowing how to make the rifle an extension of the
body all equate to the ultimate synthesis of man and machine.”
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:

no it won´t be hard to pull the trigger :roll: 1/4 ball valves are really easy to open, so you can use a weak spring...
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Goats spudz
Specialist 4
Specialist 4
Posts: 458
Joined: Tue Aug 02, 2011 12:31 pm
Contact:

wouldn't the main chamber de-pressurize when you pull the trigger because it will all exhaust before the ball valve is shut and where can i get a popoff valve in the UK thats not expensive or how do you make them.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:

the ball valve wasn´t fully opened, so a slight movement will shut it down
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Goats spudz
Specialist 4
Specialist 4
Posts: 458
Joined: Tue Aug 02, 2011 12:31 pm
Contact:

wyz2285 wrote:the ball valve wasn´t fully opened, so a slight movement will shut it down
Ok :D
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

I think it's a good idea! With a 1/4" ball valve it should be an easy trigger pull.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
