Hi everybody, I bought a drill press last weekend so I decided to try this out.
But I don´t need any piston right now and I got a lot of nylon block from a friend, so I thought I would try to make my own 3 way 2 position valve :P
Can´t belive I actually did it :o , I almost got this thing finished only missing one more piston and a cap.
Here are some pictures, not going to use more than 10 bar so I´m pretty sure it won´t explode :D
Attachments

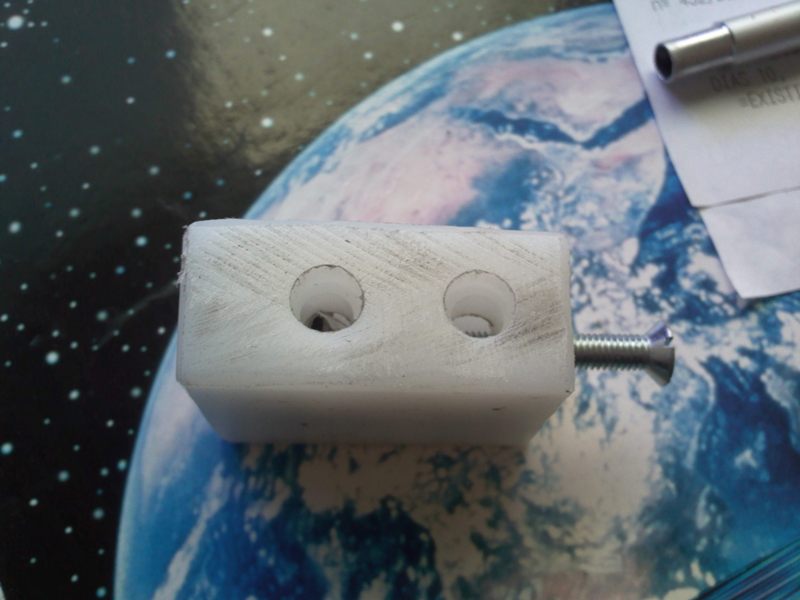

output
output

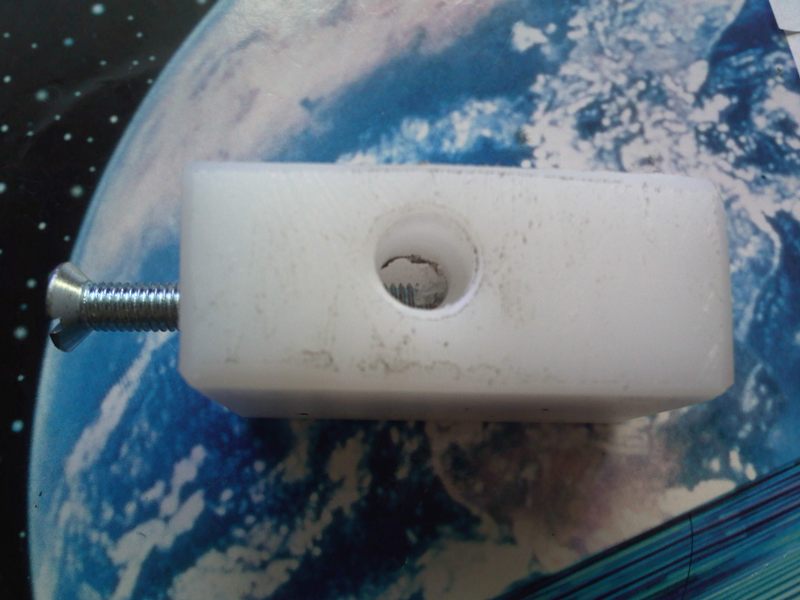

input port, will epoxy a 1/8 thread on it
input port, will epoxy a 1/8 thread on it

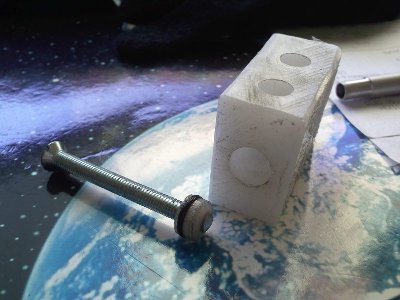

note that still missing a piston
note that still missing a piston

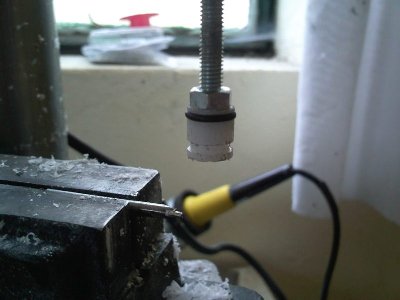

one of the piston is finished
one of the piston is finished

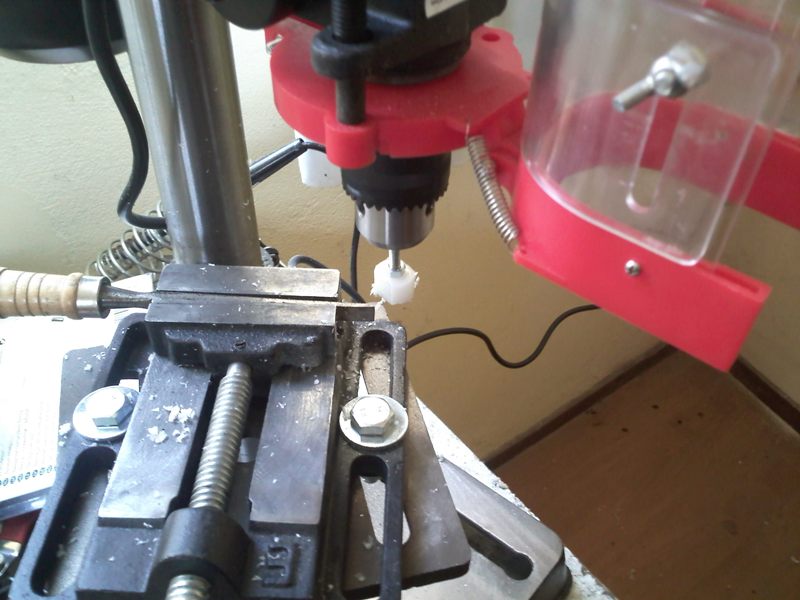

making the piston
making the piston
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
warhead052
Staff Sergeant 3
Staff Sergeant 3
Posts: 1769
Joined: Mon Mar 21, 2011 5:41 pm

Nice, what did you use to cut the piston?
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

warhead052, everything you need to know is in the tutorial.

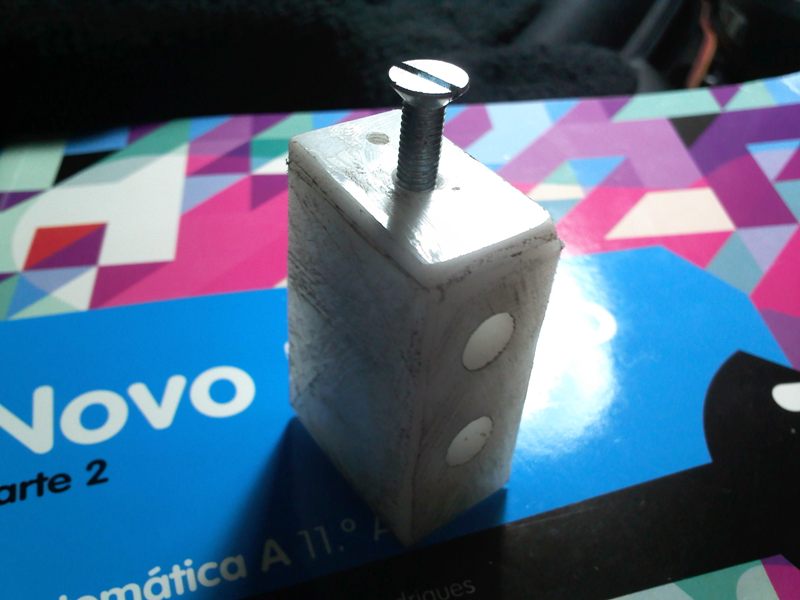

Finished! I´m so proud of myself :P this is the second time I use the drill press and I think I did great 8) (the first time I turned some aluminium/nylon to choose witch tools I should use as the blade and see witch speed I should use).
The valve leaks a little when changing the flow, but very little as I can press the stem fast.
specifications:
valve body: nylon
type: 3 way 2 position
working pressure: 10bar
size: 5.5x3x1.5 cm
orifice: 6mm ID
Attachments

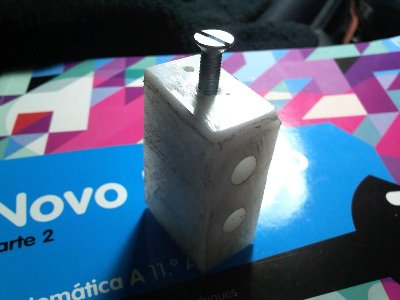

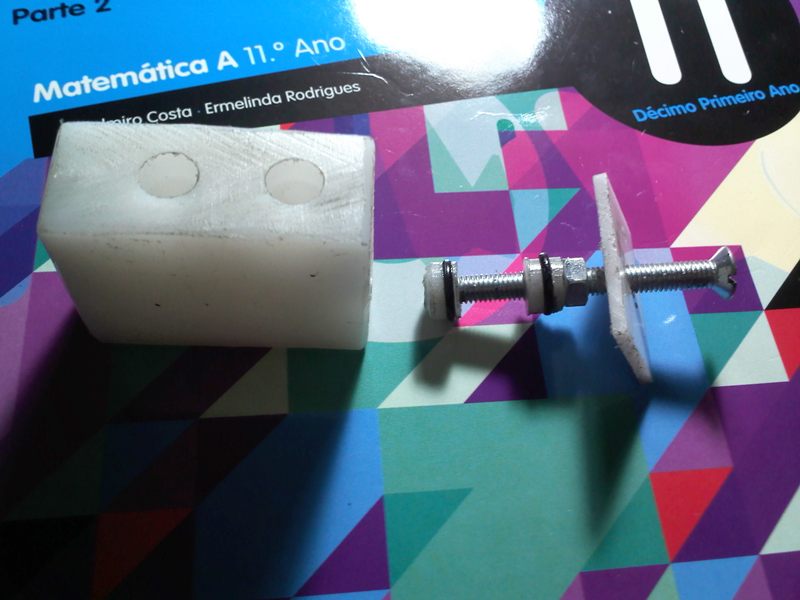

I only used 2 o-ring seal, so there is a small leak when changing the air flow
