my first post with my just pvc guns

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
oneocim
Private
Private
Indonesia
Posts: 16
Joined: Sat Jun 16, 2012 9:55 am
Location: Indonesia

Hi guys,.. thanks to all of you for all the knowledge I could get in this forum.
Here are two of my guns, both have similar system, piston valve with hammer valve for piloting.
I'm in the country with very limited access for advance material and online shopping so I try my best to use the ordinary PVC and any stuffs I could get in my garage. I use those guns with 80 psi max since that is the max pressure I could get with my air compressor :(.
Here are the pictures and sorry for my English.
Attachments

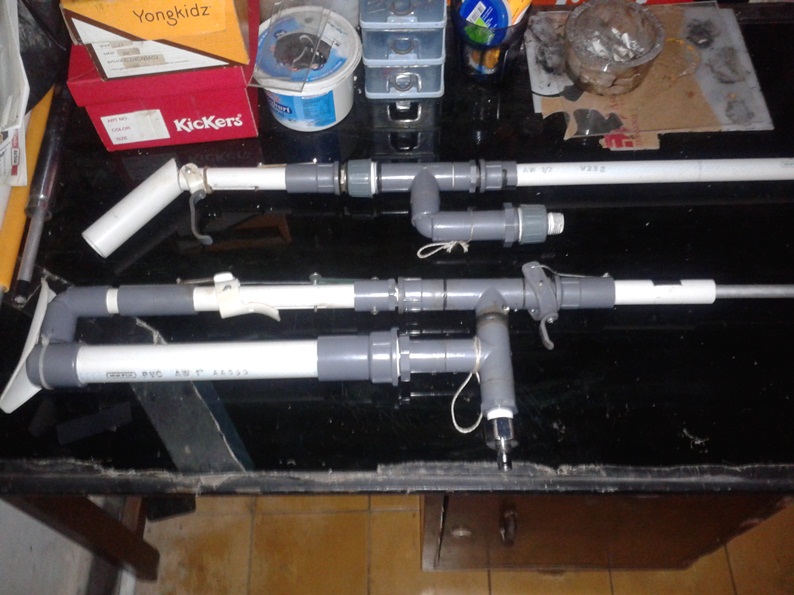

upper the old one, lower the recent one
upper the old one, lower the recent one

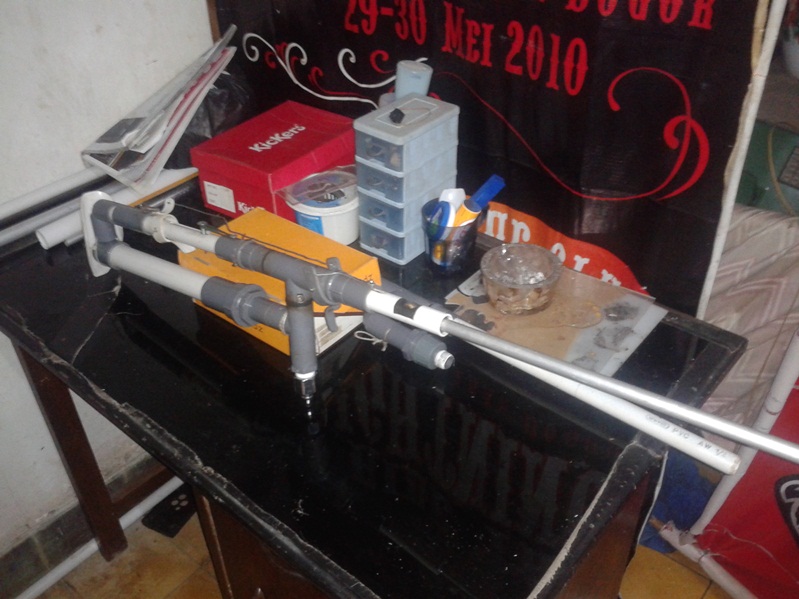

a simple gun
a simple gun

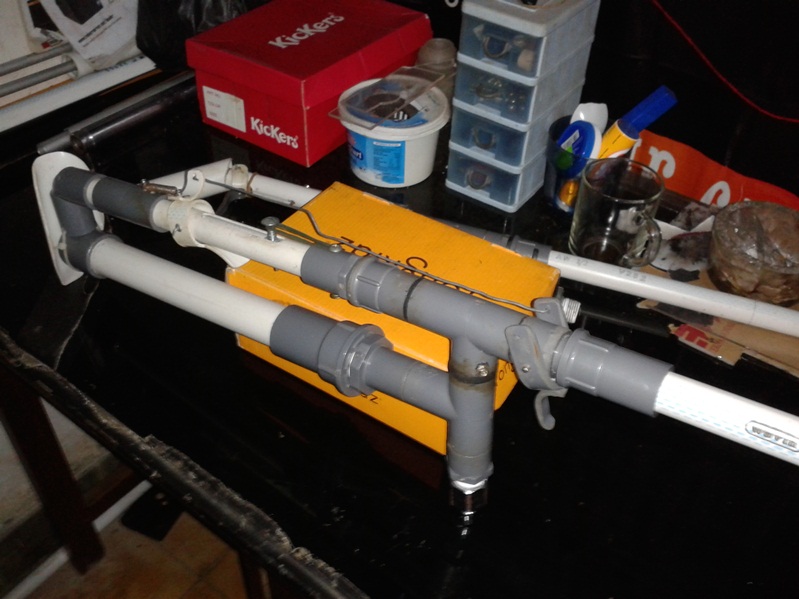

this recent one originally used half inch muzzle loading barrel, the same as the old one. But then I found a barrel from my last experiment with blow forward bolt, I just change it into manual push forward.
this recent one originally used half inch muzzle loading barrel, the same as the old one. But then I found a barrel from my last experiment with blow forward bolt, I just change it into manual push forward.
the trigger release the hammer and push the bolt in the same time
the trigger release the hammer and push the bolt in the same time

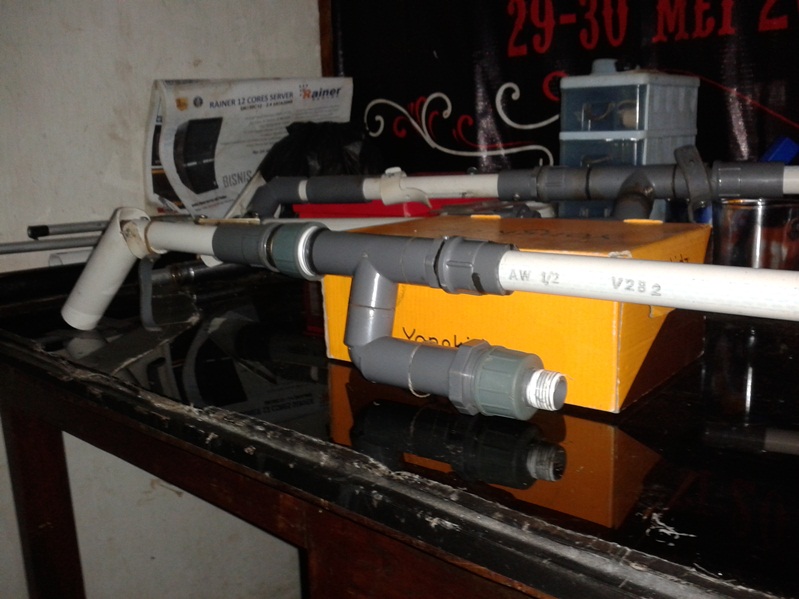

with simple muzzle loading half inch barrel
with simple muzzle loading half inch barrel

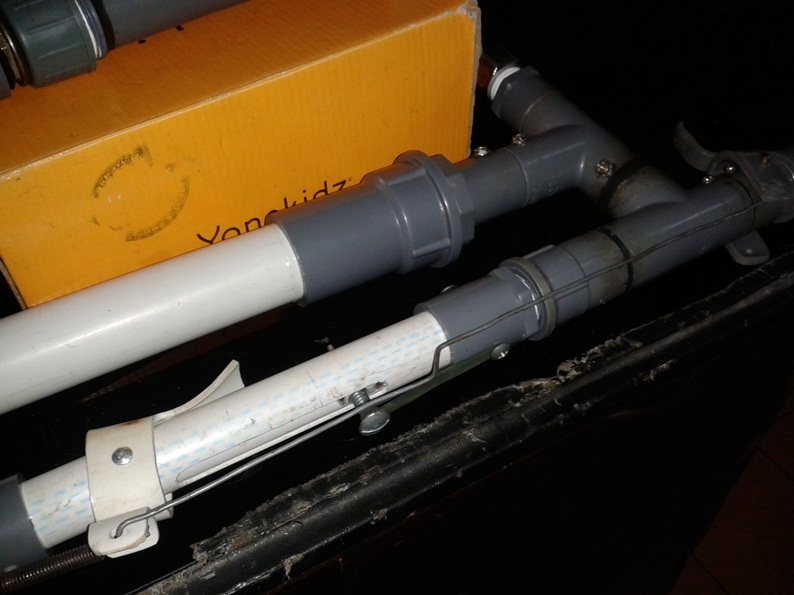

triggering close up, that rubber band is supposed to be for temporary, but then I realize it is a cheapest way to experiment with hammer power. That rod absolutely will be replaced.
triggering close up, that rubber band is supposed to be for temporary, but then I realize it is a cheapest way to experiment with hammer power. That rod absolutely will be replaced.

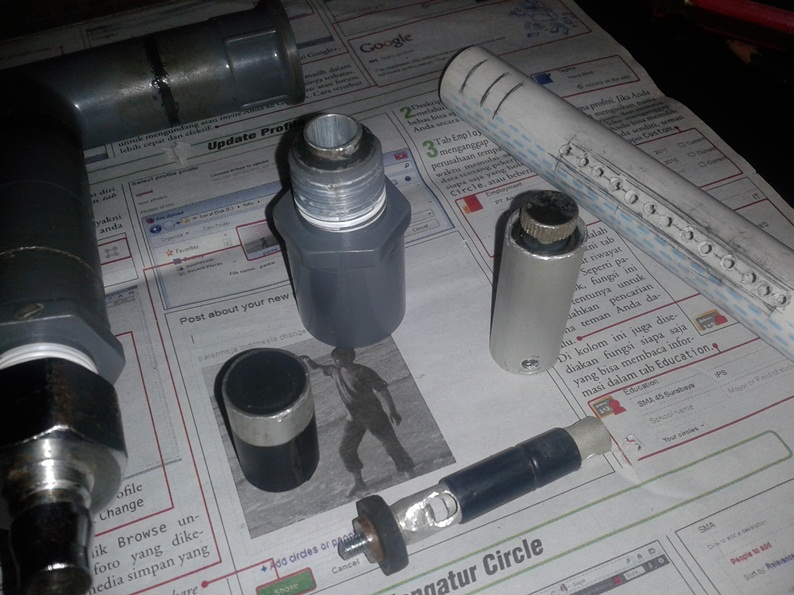

the piston valve, hammer valve housing, hammer valve steam, the hammer, and the hammer tube (unfinished)
the piston valve, hammer valve housing, hammer valve steam, the hammer, and the hammer tube (unfinished)

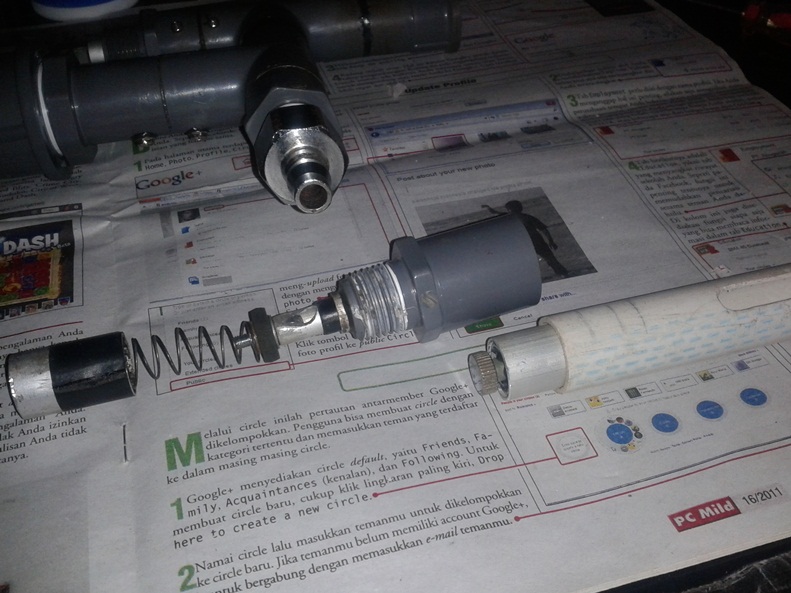

hows everything arranged inside the gun
hows everything arranged inside the gun
Last edited by oneocim on Fri Sep 13, 2013 11:57 am, edited 1 time in total.
Top
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

Nice, sleak and clean guns you got there, pretty impressive!

Oh, and killing animals etc. is banned in the forum rules, so edit your post or a moderator will do :?
Est Sularus Oth Mithas
Top
User avatar
oneocim
Private
Private
Indonesia
Posts: 16
Joined: Sat Jun 16, 2012 9:55 am
Location: Indonesia

Hi Jakethebeast, thank you for your comment, and with your advice too..
#edited
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

oneocim wrote:I'm in the country with very limited access for advance material and online shopping so I try my best
And you did it well, nice work! I grew up (and still live) in the country and we make due with what we have all the time. It's live and learn and learn to live.
Top
User avatar
oneocim
Private
Private
Indonesia
Posts: 16
Joined: Sat Jun 16, 2012 9:55 am
Location: Indonesia

Jrrdw thank youuu... Btw I'm in Indonesia (unfortunatelly not in Bali), anyone else from where I'm?
