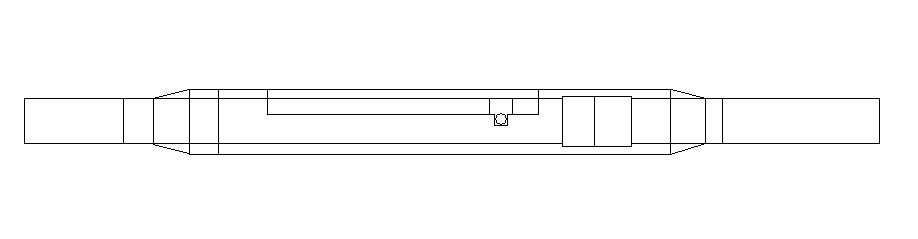

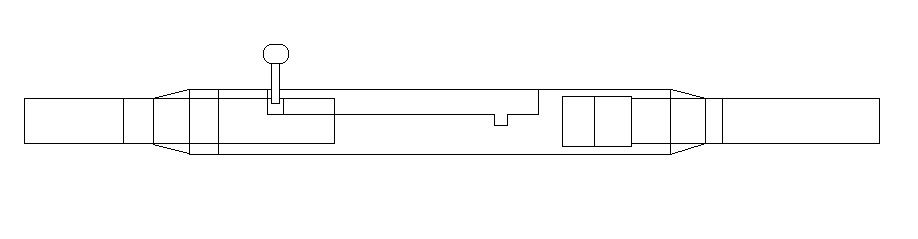

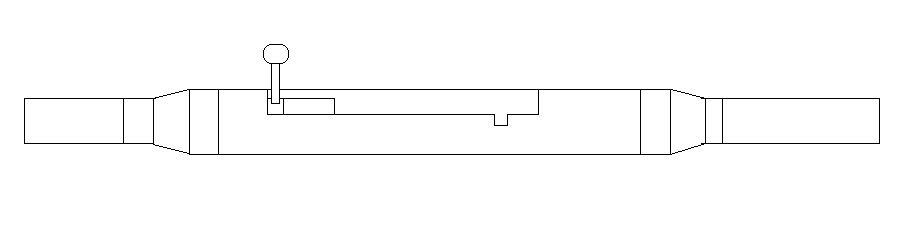

Ok im planning on buying a new 22mm barrel for my gun and having a breach loading system. Here are my plans but i have a problem with point X how do i seal it to stop all the air just going around the barrel?

Sam
Top
iknowmy3tables
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1596
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland
Has thanked: 3 times
Been thanked: 9 times

an o-ring or another hollowed brushing
Top
spanerman
Specialist 4
Specialist 4
Posts: 437
Joined: Sun Sep 17, 2006 2:54 pm

sorted,

ok ime planning on putting a 22mm-22mm straight comector in there where the pipes meet il have a rubber tap washer to seal :twisted: what you think of the design/diagrams?
Top
iknowmy3tables
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1596
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland
Has thanked: 3 times
Been thanked: 9 times

okay do 22mm couplings fit in 28mm pipe
