basic pneu tutorial

A place for general potato gun questions and discussions.

is this a good tutorial

yes
0
No votes
maybe
0
No votes
nah
0
No votes
nah
0
No votes

Total votes: 0
User avatar
killagorrila99
Sergeant 2
Sergeant 2
Posts: 1100
Joined: Tue Jul 25, 2006 2:35 am
Location: Australia.

Thu Sep 07, 2006 3:16 am

I no you big, fancy, members might all know how to make a simple pneumatic. This tutorial is for those who DONT! I got the pictures of parts from another website, so I am allready fully aware that i am copying this (half copying, text is mine). OK the parts list is as follows:
1x 3inch coupling
1x 3inch to 50mm reducing bushing
1x 3inch end cap
1x 3/4 ball valve
1x 3/4 end cap
1x 3/4 tee
1x 3/4 90 degree elbow
1x tire inflator valve (shrader)
1x 0-200 pressure gauge
2x 3/4 short nipples (hehehe)
1x 3/4 threded adapter
1x 50mm to 3/4 adapter
around 2 to 3 feet of 3/4 pvc pipe
around 1 to 2 feet of 3inch pipe
NOTE: all pipe MUST be pressure rated
the reason i didnt make this tutorial more detailed is because its such a simple gun. peace and spuds, matt black.
dont forget to use pvc primer and glue. any model or such glue is non acceptable.

EDIT: im soo sorry the pics arnt in order. But im sure all you geniouses will be able to figure it out.
Attachments
the creation(moohaha) make sure you build it like this.
the creation(moohaha) make sure you build it like this.
ball valve with 2 niples (hahaha)
ball valve with 2 niples (hahaha)
tee and elbow(both 3/4, make sure you put together like this)
tee and elbow(both 3/4, make sure you put together like this)
3/4 endcap with gauge
3/4 endcap with gauge

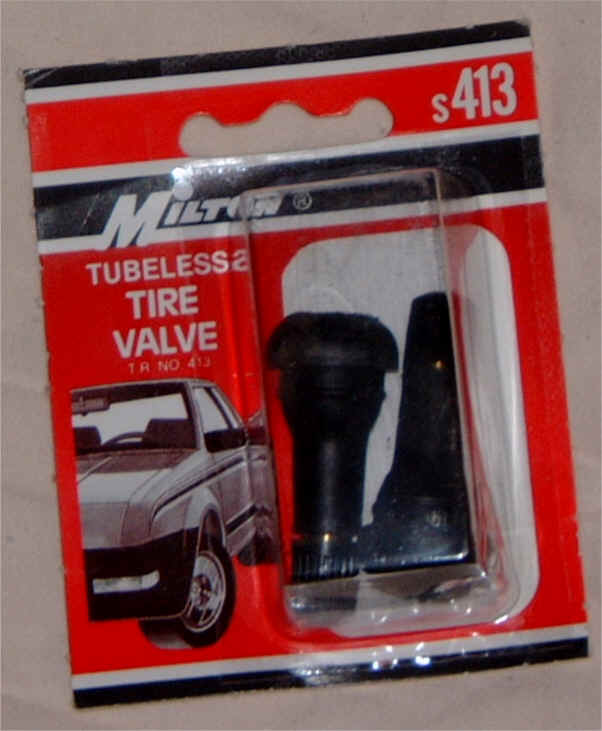

scraders (only need one)
scraders (only need one)

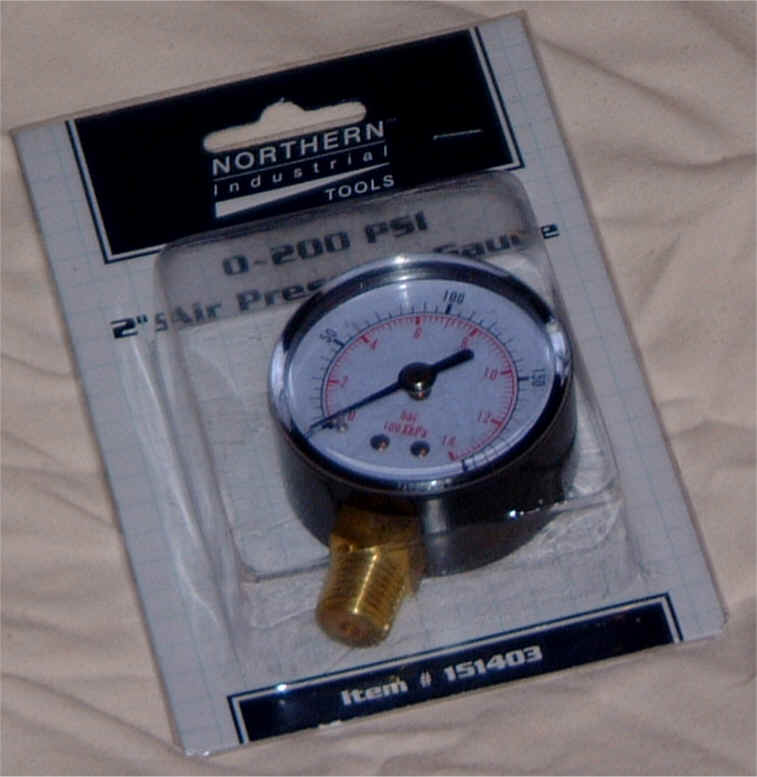

the gauge
the gauge
heres what it should look like all put together. the three inch pipe section is 1ft long
heres what it should look like all put together. the three inch pipe section is 1ft long
the endcap, with shrader. im sure you can figure it out.
the endcap, with shrader. im sure you can figure it out.
the two together, with the 2inch to 3/4 adapter
the two together, with the 2inch to 3/4 adapter
the 3inch to 2inch adapter
the 3inch to 2inch adapter
the coupling
the coupling
Last edited by killagorrila99 on Thu Sep 07, 2006 6:51 am, edited 1 time in total.
"I'm sorry, Mr.Bush cant come to the phone right now, He's playing cleudo with Mr. Cheney And he has him in the Cupboard with a broom stick" -White house receptionist.
User avatar
Urban Ninja
Specialist 2
Specialist 2
Posts: 297
Joined: Sun Jan 01, 2006 5:35 am
Location: Sydney Australia.
Contact:

Thu Sep 07, 2006 3:22 am

Thats awesome man, great for beginers. I might thinka about making a tutorial now for a piston or coaxial or something. Nice job.
To Be Feared If Not Respected
http://www.freewebs.com/urbanmisfits
Vote for Killagorilla99 AKA KillaSuperHumanRabbitOnCrackx99
User avatar
Jolly Roger
Specialist 2
Specialist 2
Posts: 210
Joined: Fri Aug 25, 2006 4:20 am

Donating Members

Thu Sep 07, 2006 4:03 am

Hey nice tute killa, yeah I might make a hybrid tute for begginers just like yours. (jokes) Good work.
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:

Donating Members

Thu Sep 07, 2006 6:42 am

Good job, but you should explain the solvent welding and process of doing it. Newbies will be glueing this together with Testors model glue or something like that, i still voted yes it's a good 1, just a bit incomplete.
User avatar
killagorrila99
Sergeant 2
Sergeant 2
Posts: 1100
Joined: Tue Jul 25, 2006 2:35 am
Location: Australia.

Thu Sep 07, 2006 6:53 am

there i explained the pvc glue and primer bit. please keep voting.
"I'm sorry, Mr.Bush cant come to the phone right now, He's playing cleudo with Mr. Cheney And he has him in the Cupboard with a broom stick" -White house receptionist.
User avatar
WOW!!
Corporal 4
Corporal 4
Posts: 891
Joined: Thu Mar 16, 2006 9:47 pm
Location: New jersey

Thu Sep 07, 2006 9:46 am

I like it good job on it, but I would use male PVC fittings instead of the metal ones, it will save ya some money. Other than that good job.
EDIT- and dont forget to teflon the threads.
User avatar
carlbelcher
Corporal
Corporal
Posts: 532
Joined: Mon Jun 12, 2006 6:54 pm

Donating Members

Thu Sep 07, 2006 12:10 pm

I think it's pretty good.

But I think you should use a Male Spigot to Female NPT fitting, instead of the drilled end cap for the gauge.

Like this one:


I would also recommend using Flickr for your image hosting, it will give you more control over the size and arrangement of your pictures.
Is your Google.com Broken?!
User avatar
killagorrila99
Sergeant 2
Sergeant 2
Posts: 1100
Joined: Tue Jul 25, 2006 2:35 am
Location: Australia.

Sat Sep 09, 2006 10:32 pm

Yea as i said, my camera isnt working a.t.m. so these pics are off another website. I too strongly recomend using a Male Spigot to Female NPT fitting. It is much safer and safety is always a requirement when playing with air and PVC.
"I'm sorry, Mr.Bush cant come to the phone right now, He's playing cleudo with Mr. Cheney And he has him in the Cupboard with a broom stick" -White house receptionist.
Mr.Taterhead
Private 2
Private 2
Posts: 34
Joined: Sat Sep 23, 2006 8:51 pm
Location: London KY

Mon Oct 02, 2006 12:57 pm

:D Very nice job and good information for beginers. Not everyone is a pro as many seem to be on this site. Thanks for looking out for the newbies.
User avatar
TalonXxX
Specialist
Specialist
Posts: 168
Joined: Sun Oct 16, 2005 3:22 pm
Location: Canada

Mon Oct 02, 2006 2:05 pm

That's awesome! That pic of the tee and elbow just gave me a really great idea about a barrel sealing valve!
User avatar
Tyro
Specialist
Specialist
Posts: 154
Joined: Sat Oct 07, 2006 1:03 am
Location: The Land of Plenty! (Aus)

Mon Oct 09, 2006 3:04 am

yay at last i found out how to glue it, does the primer come as a clear option? or are they all purple or someother lame colour.

OHH yeah does either the glue or primer go on in any order, like primer after or before?
User avatar
SquishY
Specialist
Specialist
Posts: 155
Joined: Tue Feb 07, 2006 6:37 pm
Contact:

Mon Oct 09, 2006 4:19 am

Primer>Glue>?
Primer goes first then the glue, think of painting. This may be my first pneu, I've a box of fittings and crap in my garage, gonna check out what its there and whats needed. Also, can ABS and PVC be mixed, I have about 4' of 3" ABS and not alot of money, not goinf for extreme pressures, maybe 20-50psi
User avatar
SquishY
Specialist
Specialist
Posts: 155
Joined: Tue Feb 07, 2006 6:37 pm
Contact:

Mon Oct 09, 2006 5:35 am

OH, and wtf is the coupling for? I have no f'ing idea and I don't see it in the completed pic.
User avatar
rna_duelers
Staff Sergeant 3
Staff Sergeant 3
Posts: 1739
Joined: Mon Sep 26, 2005 7:07 am
Location: G-land Australia

Mon Oct 09, 2006 5:54 am

The coupling is to join the reducers to the pipe.Save up a bit of cash and buy the proper piping.
User avatar
Tyro
Specialist
Specialist
Posts: 154
Joined: Sat Oct 07, 2006 1:03 am
Location: The Land of Plenty! (Aus)

Mon Oct 09, 2006 6:08 am

K, can you use Epoxy? or is the PVC glue Epoxy?
and if you use epoxy do you need to use primer?
do you need primer at all, can't you just sand it?
